EN-SXLCLBX70
EN-SXLCLBX70

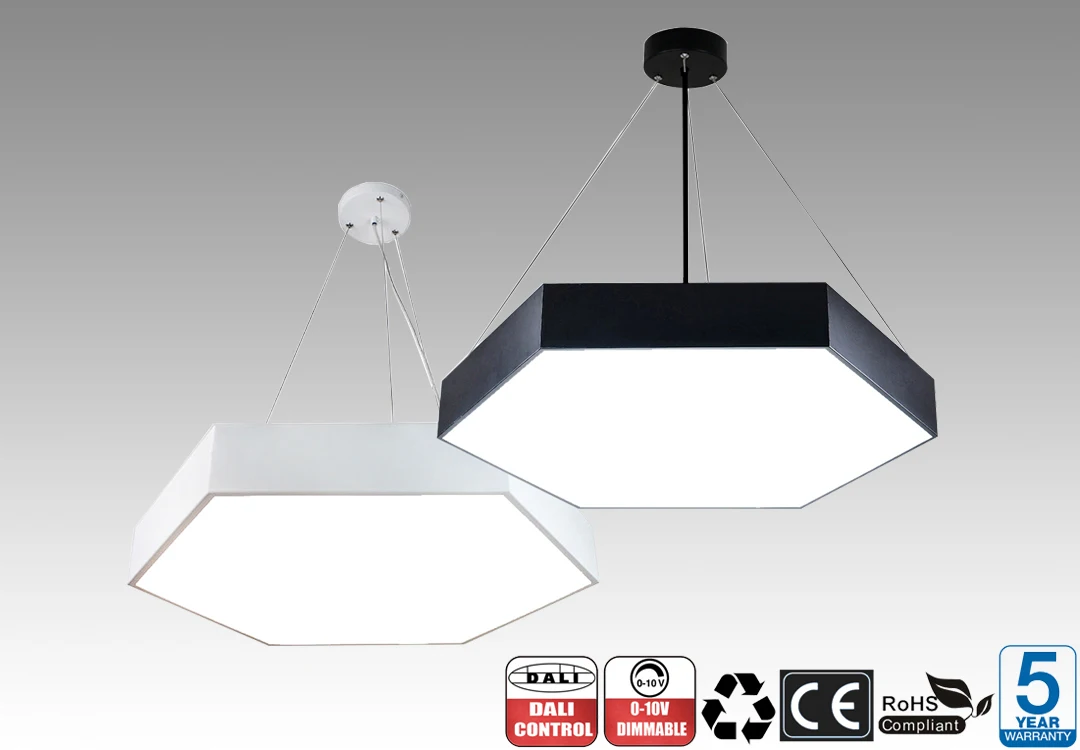

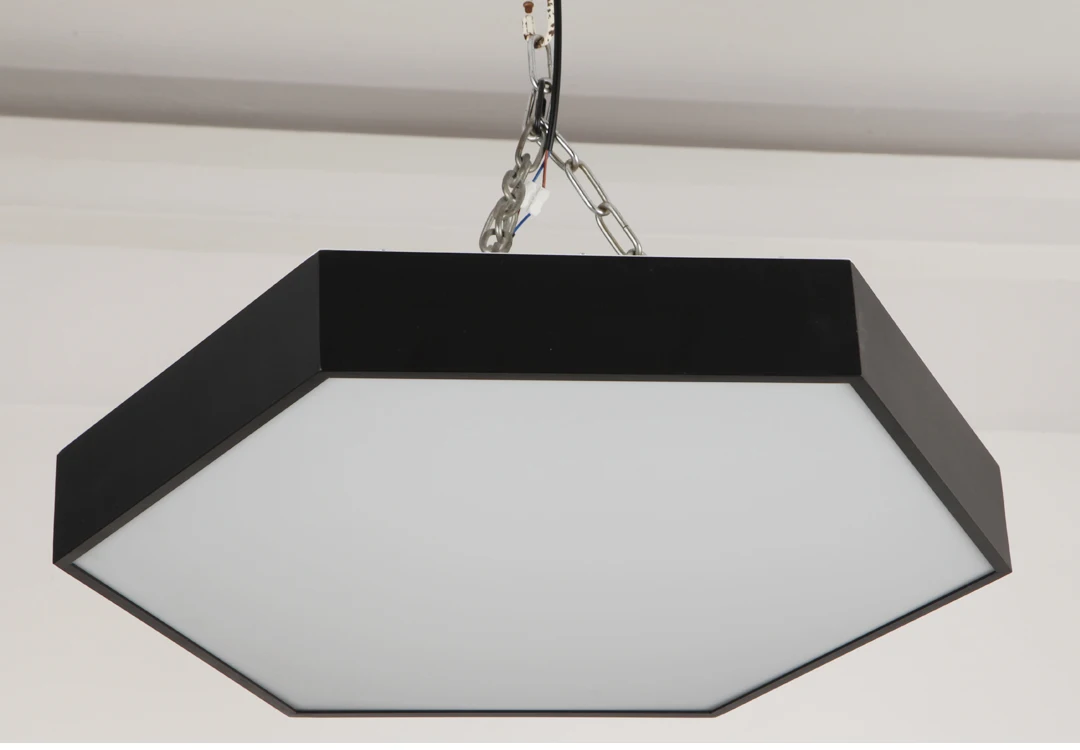

Solid Hexagon LED Pendant Light
Product Paramenters
Input Voltage
: AC100-277V,AC220-240V,50/60HZ
Height
: 70mm
Diameter Size
: Φ400mm / Φ500mm / Φ600mm / Φ800mm / Φ900mm / Φ1000mm / Φ1200mm
Luminous Flux
: 100-110Lm/W
Watt
: 24W / 36W / 48W / 80W / 100W / 120W /144W

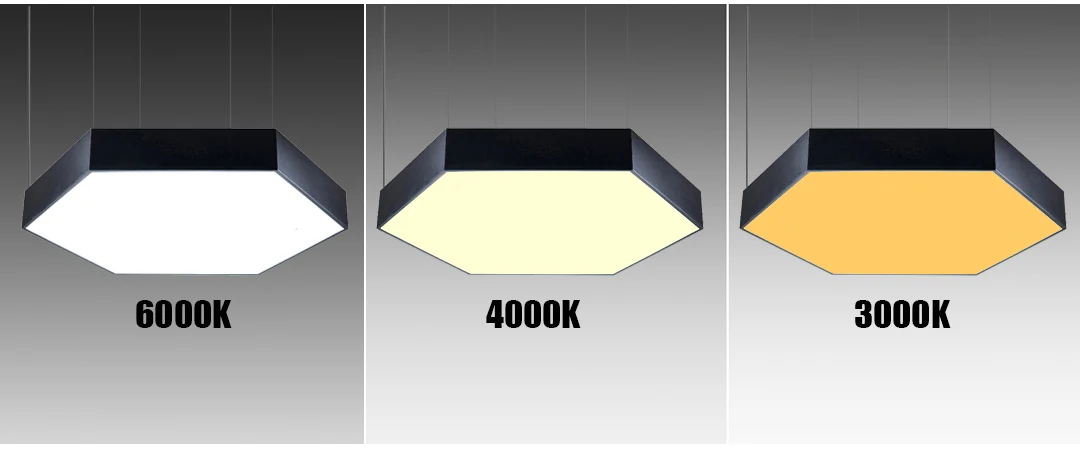

Color Temperature
: 3000K / 4000K / 6000K
Beam Angle
: 120°
LED Chip
: SMD2835
Driver Brand
: Cupower(AC100-277V) / BOKE(AC220-240V)
Material
: 6063 Aluminium Profile + Opal Diffuser
Finish Color Option
: Black / White / Silver
Function Option
: Non-dimming / 0-10V Dimming / DALI Dimming
Installation Option
: Suspension Mount / Wall Mount / Ceiling Mount
PF
: >0.95
CRI
: >82
IP Grade
: IP20
Model
Watt
Lumens
Product Size
Color Temperature
Beam Angle
EN-SXLCLBX70-400
24W
2400Lm
Φ400*H70mm
3000K 4000K 6000K
120°
EN-SXLCLBX70-500
36W
3600Lm
Φ500*H70mm
3000K 4000K 6000K
120°
EN-SXLCLBX70-600
48W
4800Lm
Φ600*H70mm
3000K 4000K 6000K
120°
EN-SXLCLBX70-800
80W
8000Lm
Φ800*H70mm
3000K 4000K 6000K
120°
EN-SXLCLBX70-900
100W
10000Lm
Φ900*H70mm
3000K 4000K 6000K
120°
EN-SXLCLBX70-1000
120W
12000Lm
Φ1000*H70mm
3000K 4000K 6000K
120°
EN-SXLCLBX70-1200
144W
14400Lm
Φ1200*H70mm
3000K 4000K 6000K
120°

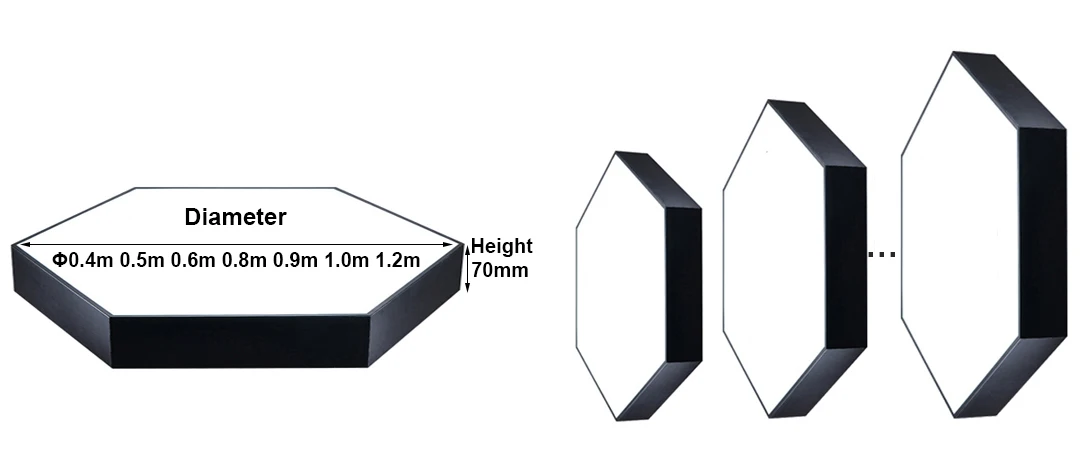

Product Size

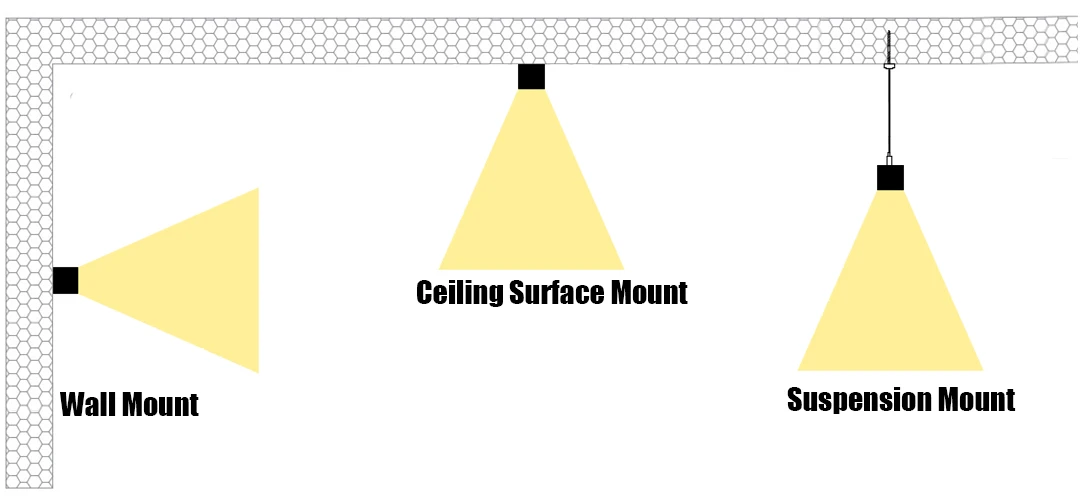

Installation Method
Dimming Type
* On/Off no dimming
* 0-10V dimming
* DALI dimming

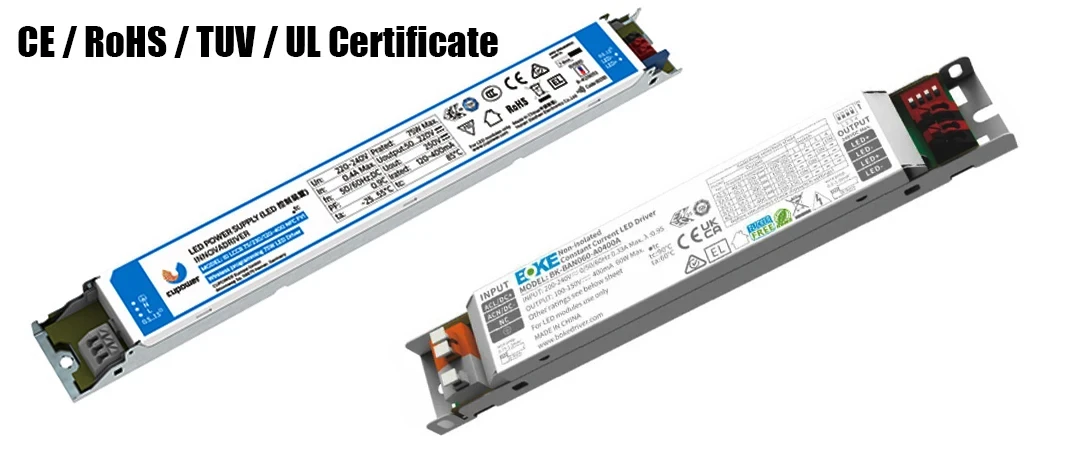

Driver Brand
* BOKE for AC220-240V;Cupower for AC100-277V.* PF>0.95,flicker free.

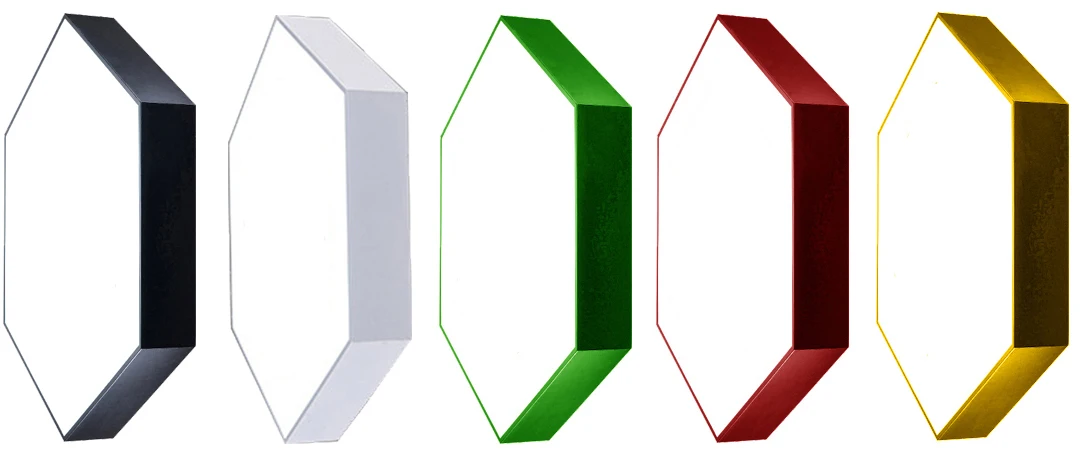

Finish Color Option

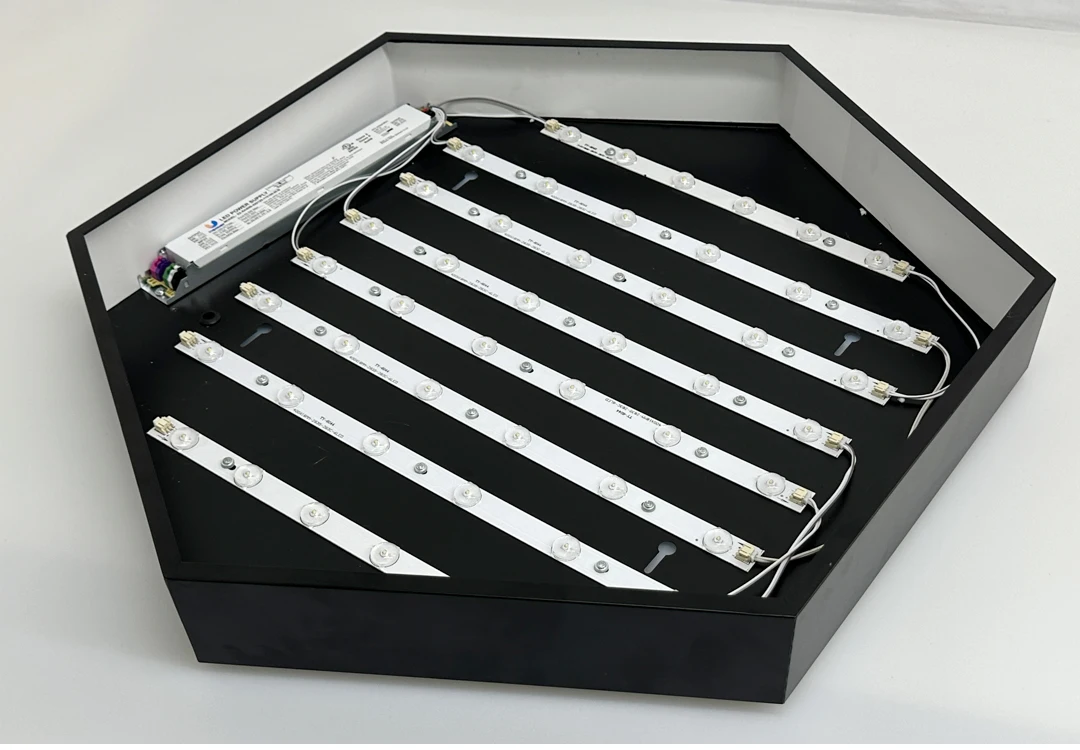

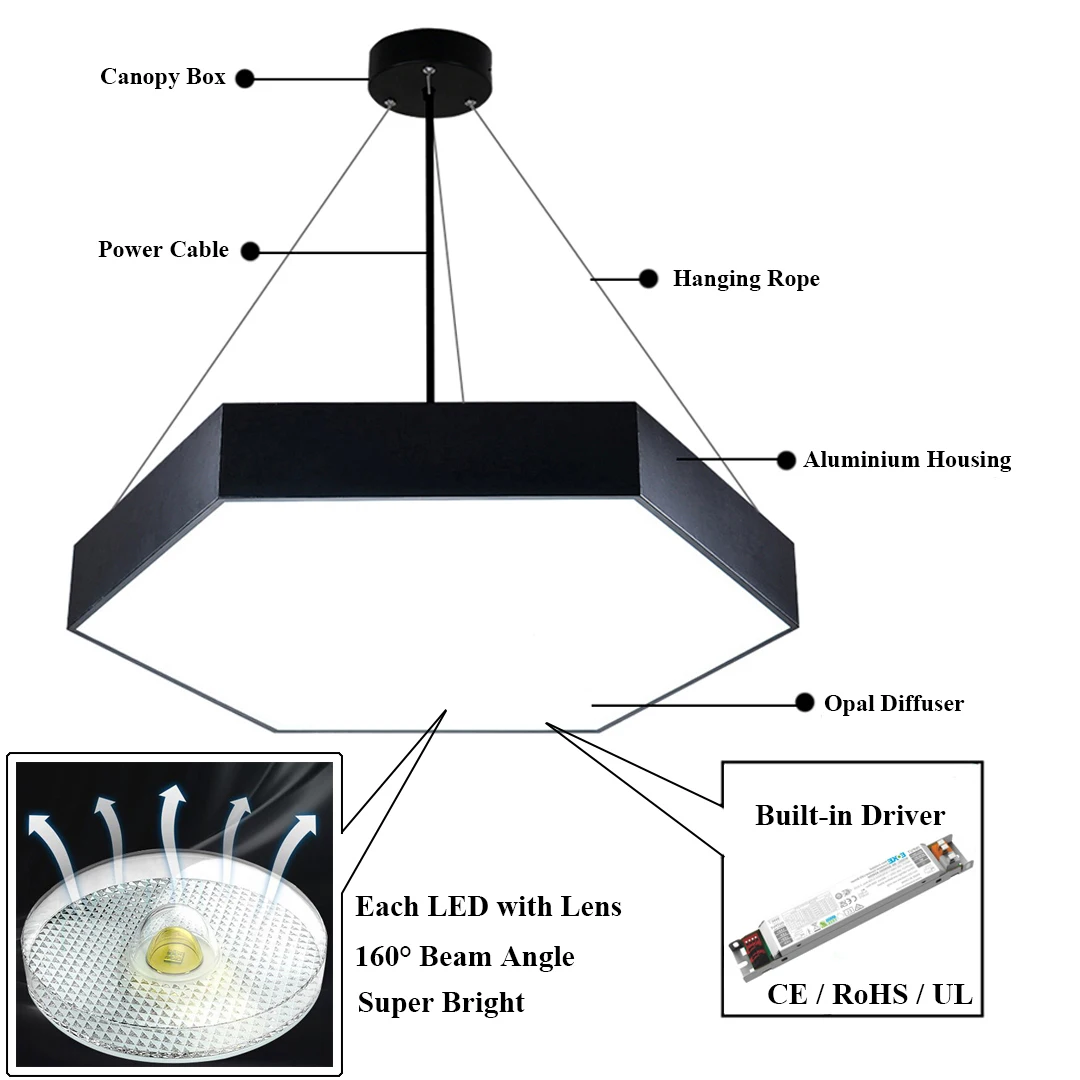

Product Structure

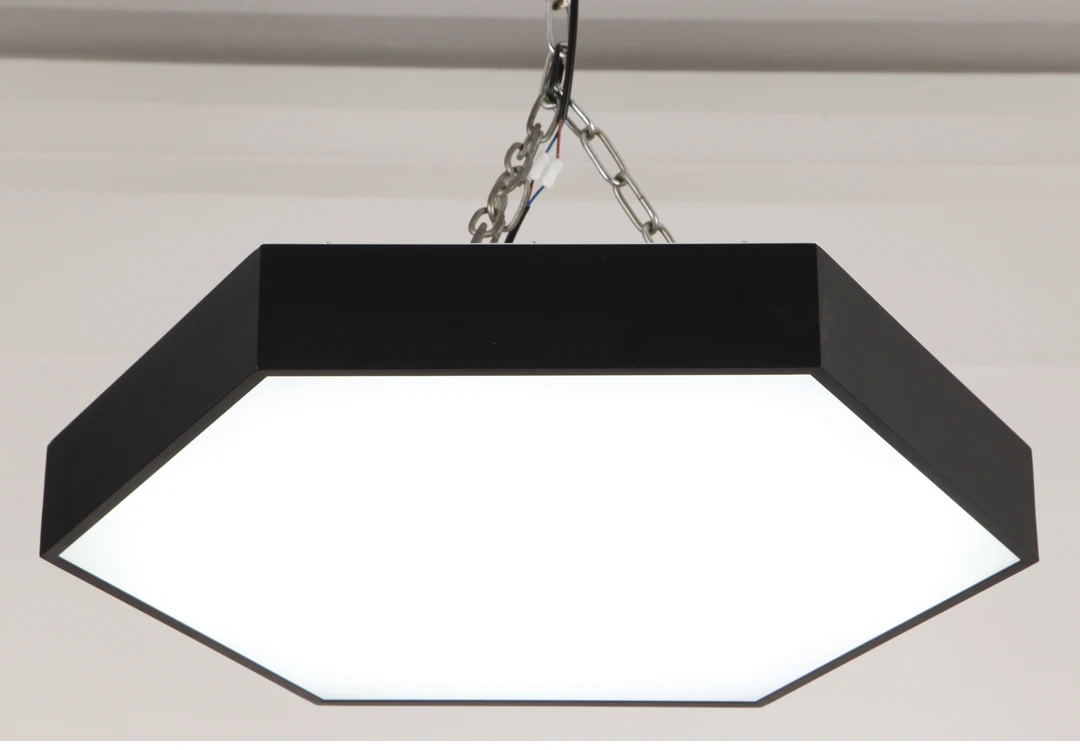

Product Details

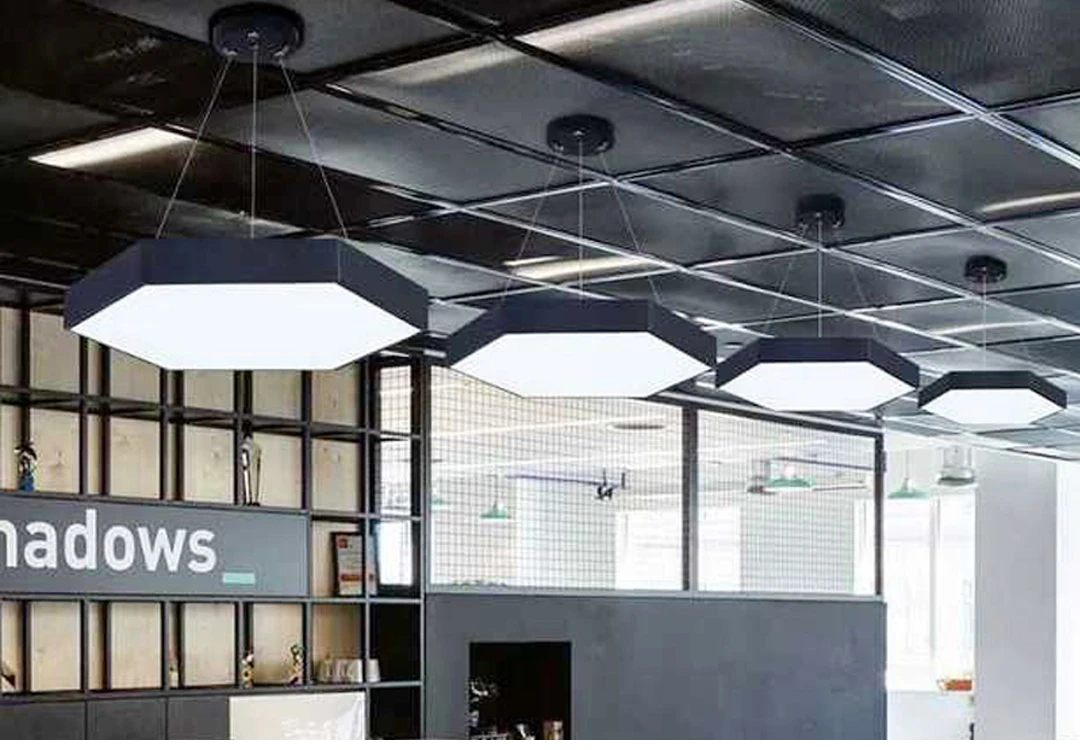

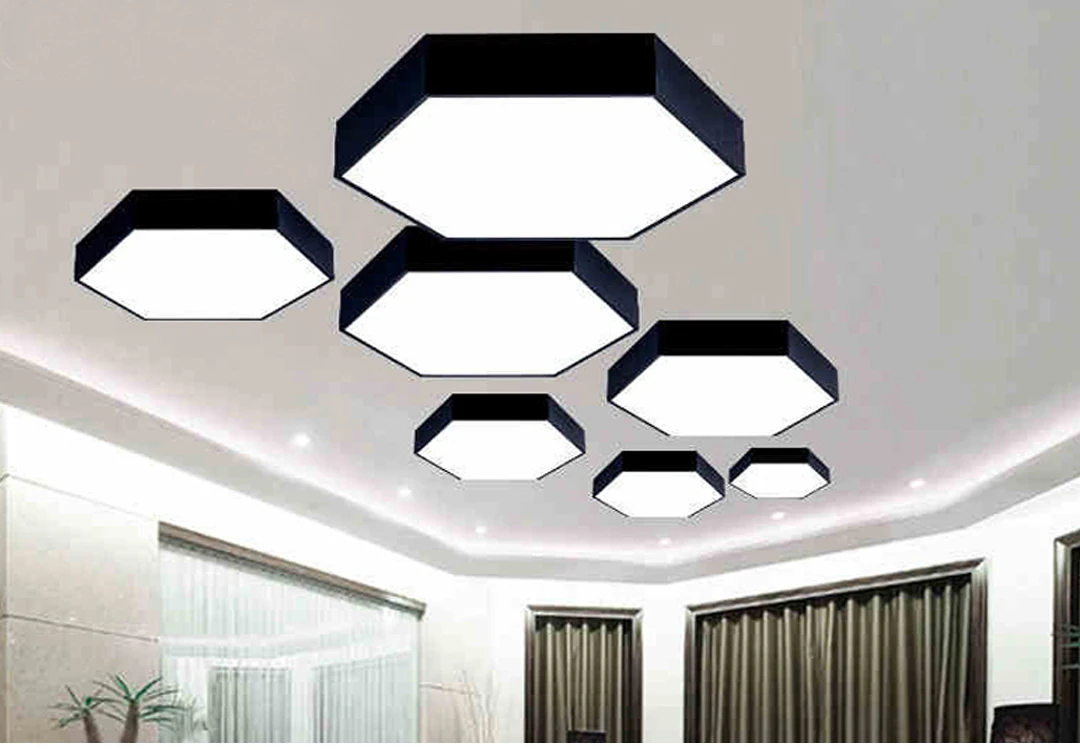

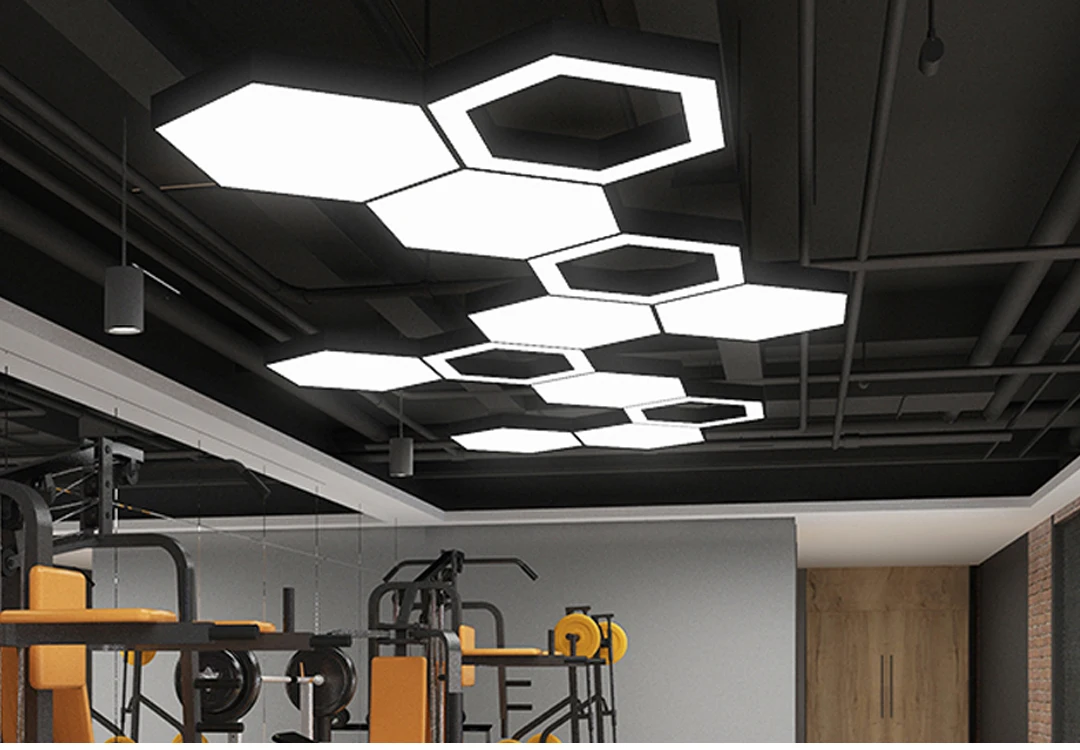

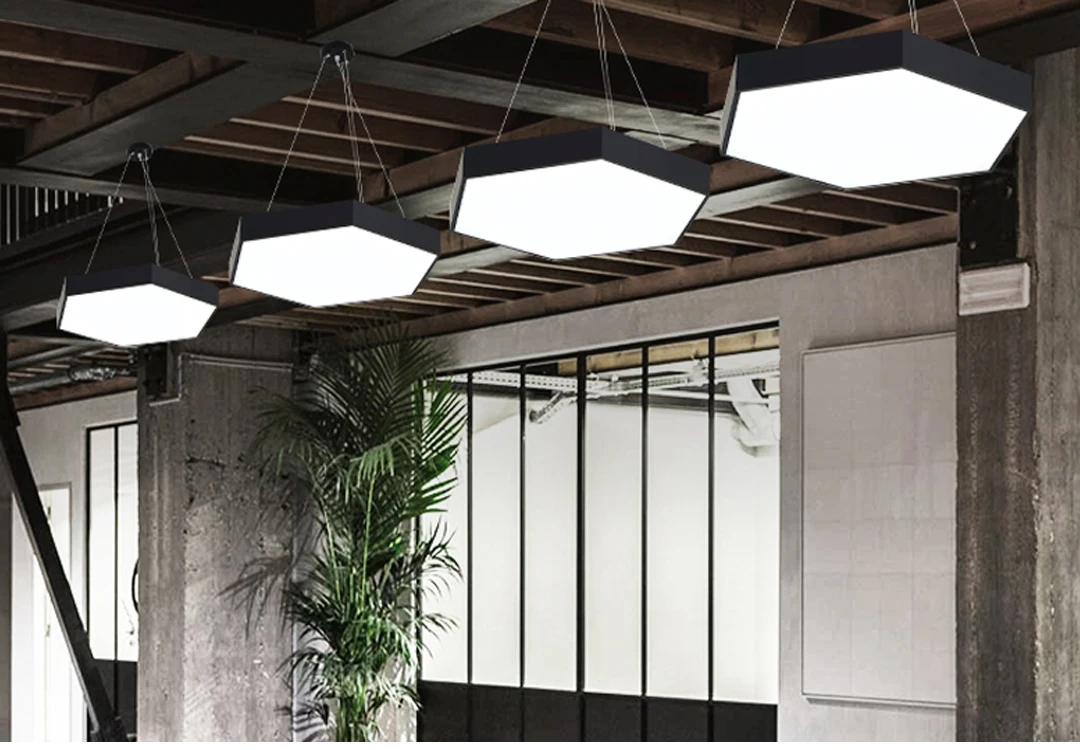

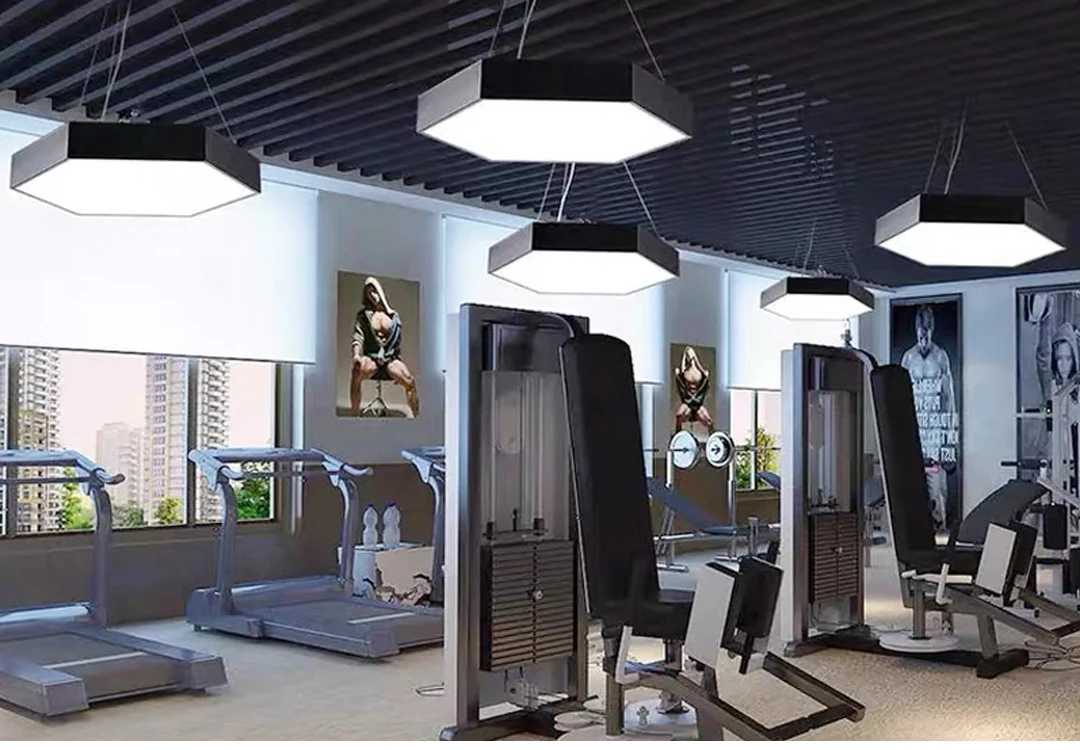

Application

* office,hotel,class room,meeting room,corridor.

* supermarket,living room,lobby,restaurant.

* bar,club,hospital,living room,dining room,bedroom,hall.
