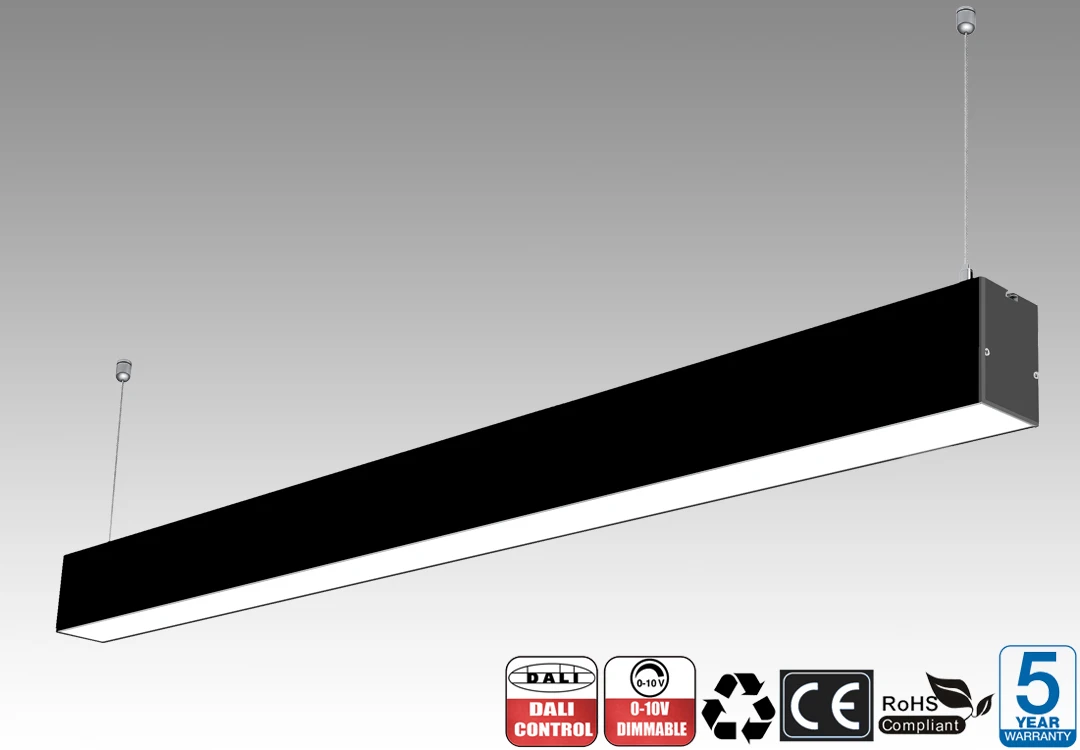

EN-5070

Product Parameters
Input Voltage : AC100-277V / AC220-240V,50-60HZ

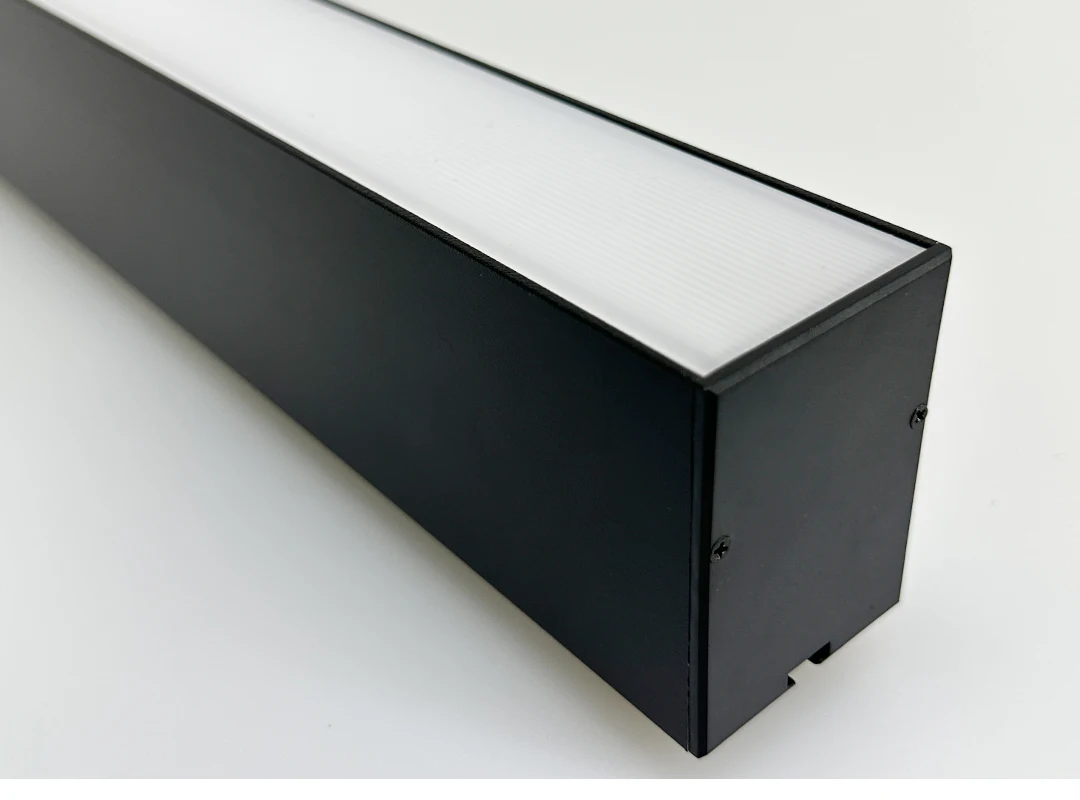

Material : 6063 Aluminium Profile + Opal Diffuser / Microprism Diffuser
LED Chip : SANAN SMD2835
Driver Brand : BOKE (220-240V) / Cupower (100-277V)

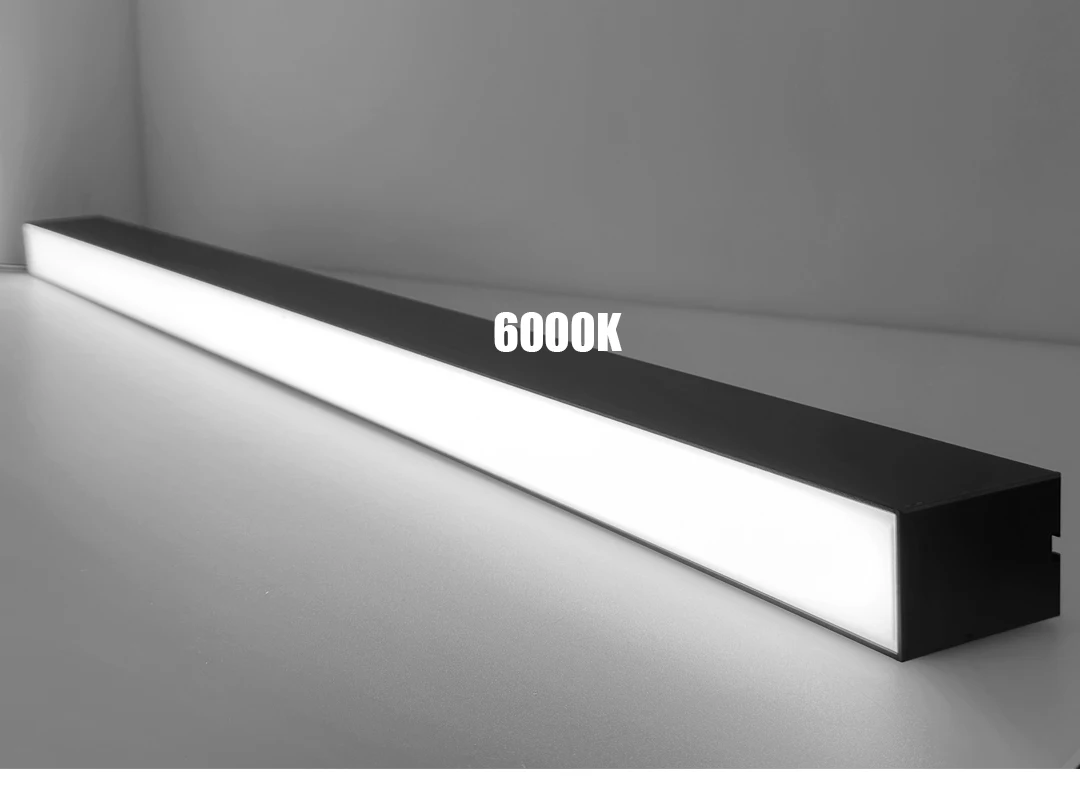

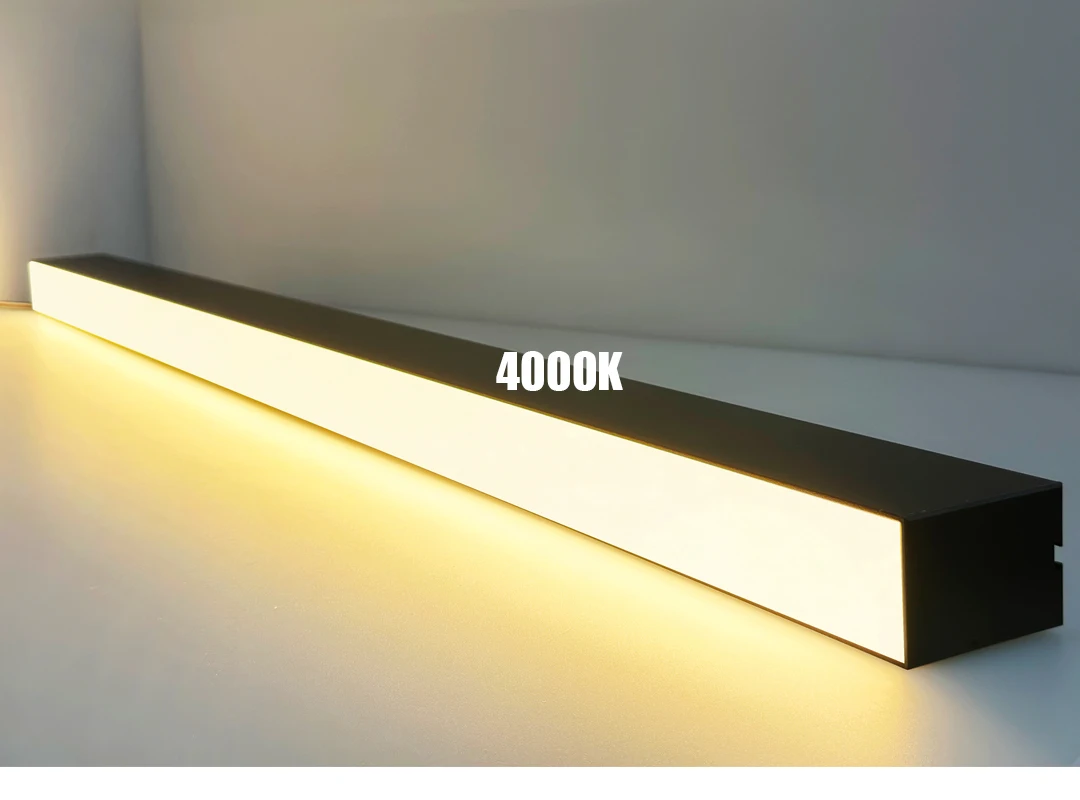

Color Temperature : 3000K / 4000K / 6000K

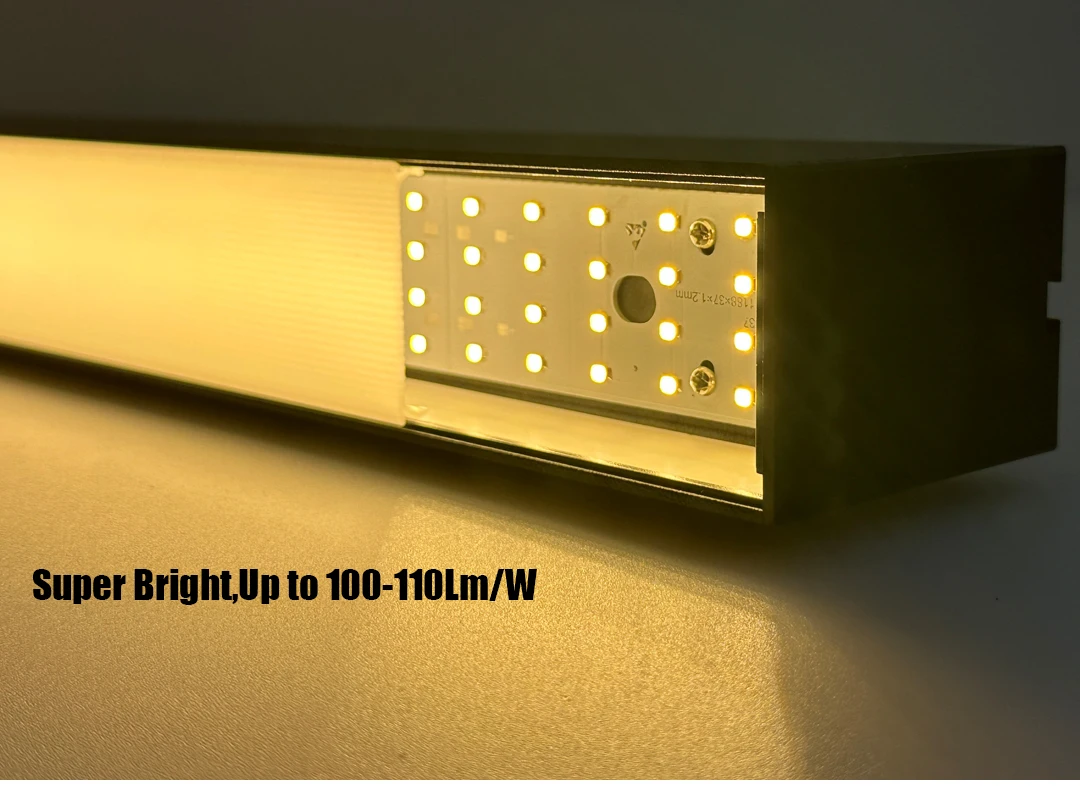

Luminous Flux : 100-110Lm/W
CRI : >80Ra
PF : >0.95
UGR : <19
Fllicker Free : Yes
Function Option : ON/OFF no dimming / 0-10V / Triac / DALI

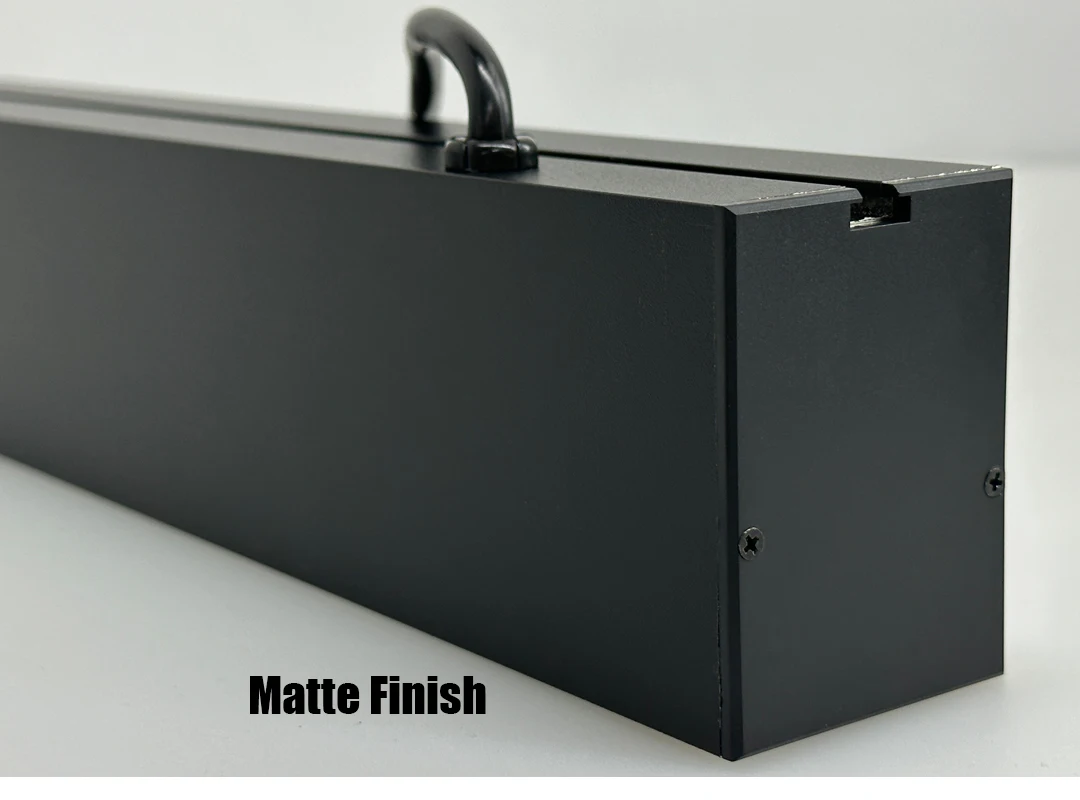

Finish Color Option : Black / White / Silver

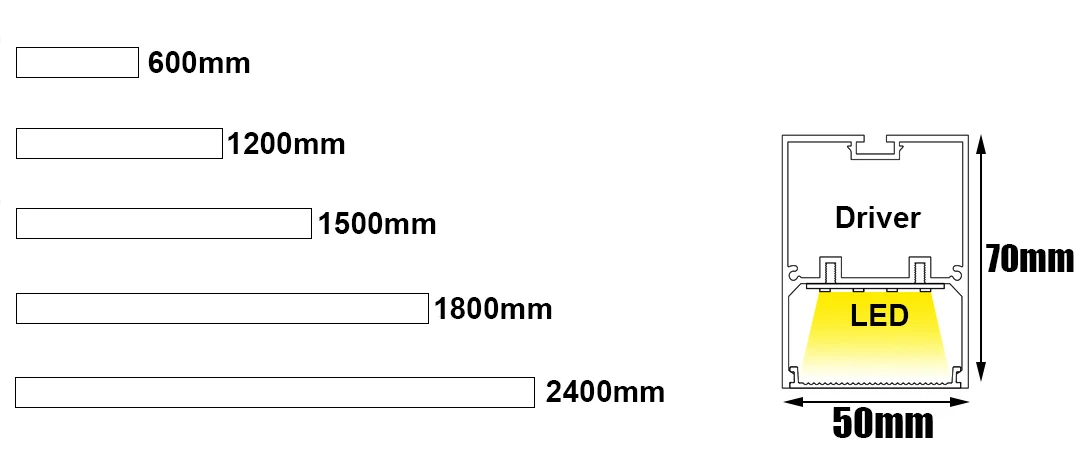

Profile Size Option : W50*H70mm

Length Option: 600mm / 1200mm / 1500mm /1800mm / 2400mm / Customized Available
IP Grade : IP20
Warranty : 5years

Model	Watt	Lumens	Size	Color Temperature
EN-5070-LS20W06	20W	2000Lm	L600W50H70mm	3000K 4000K 6000K
EN-5070-LS40W12	40W	4000Lm	L1196W50H70mm	3000K 4000K 6000K
EN-5070-LS50W15	50W	5000Lm	L1500W50H70mm	3000K 4000K 6000K
EN-5070-LS60W18	60W	6000Lm	L1791W50H70mm	3000K 4000K 6000K
EN-5070-LS80W24	80W	8000Lm	L2386W50H70mm	3000K 4000K 6000K

Feature

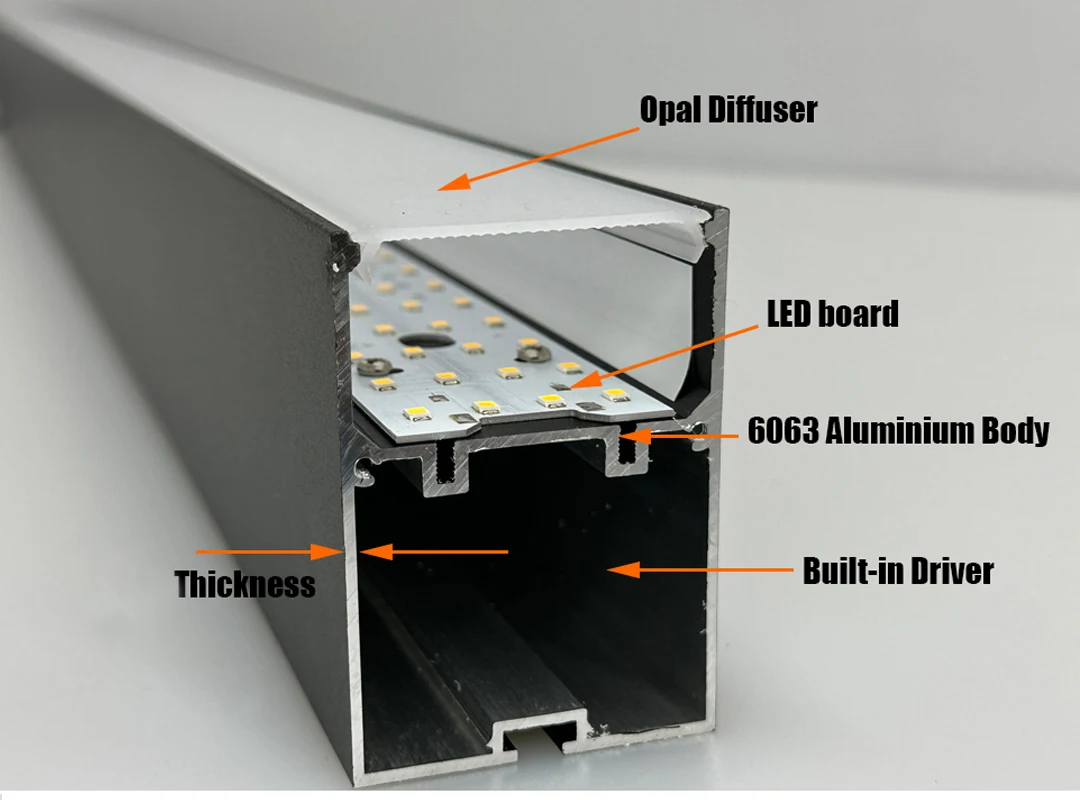

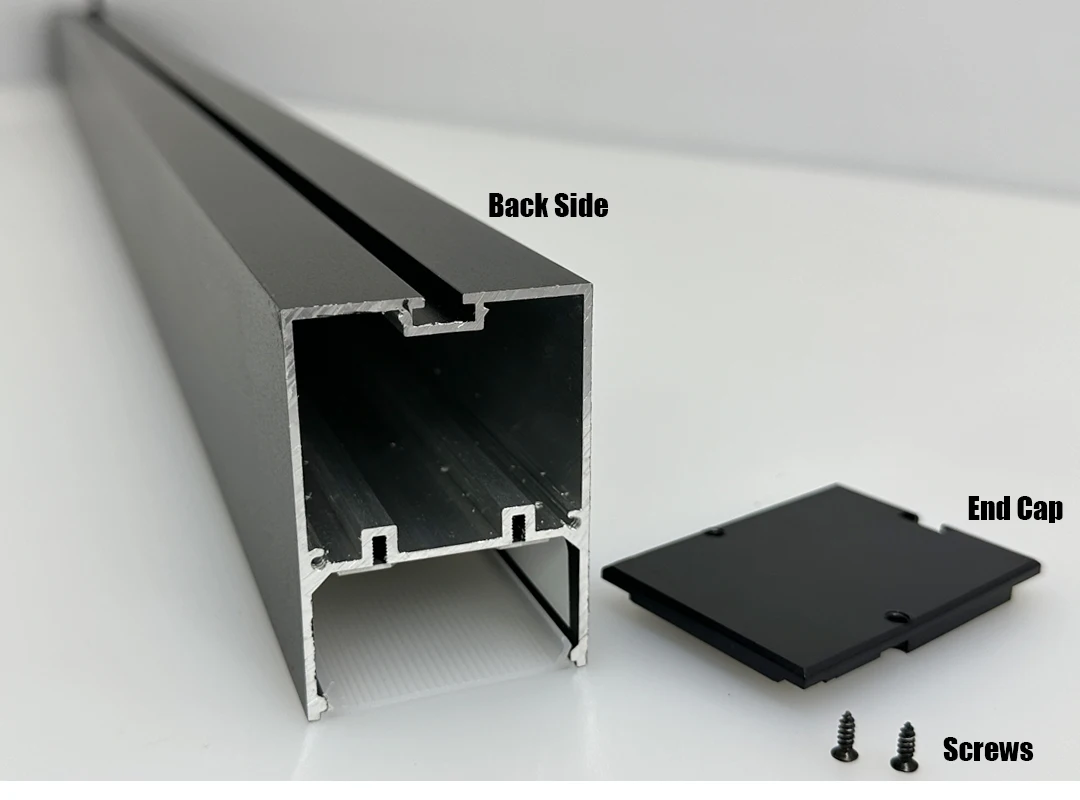

* 6063 Extruded aluminium profile

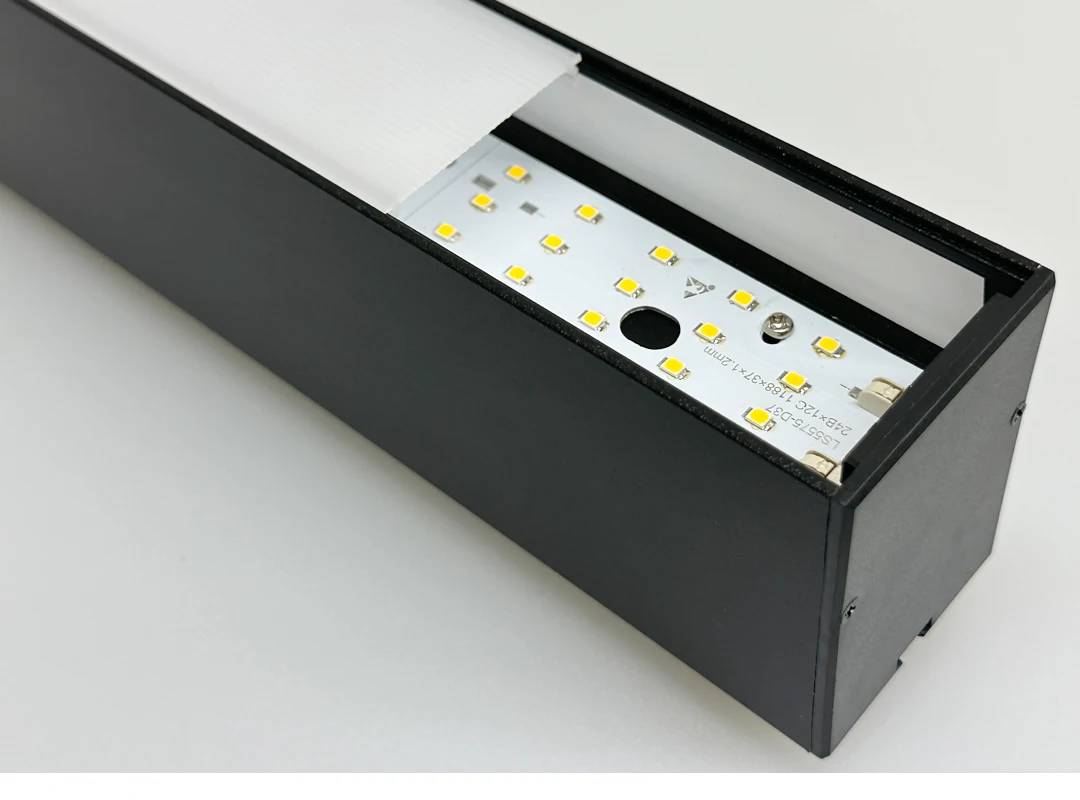

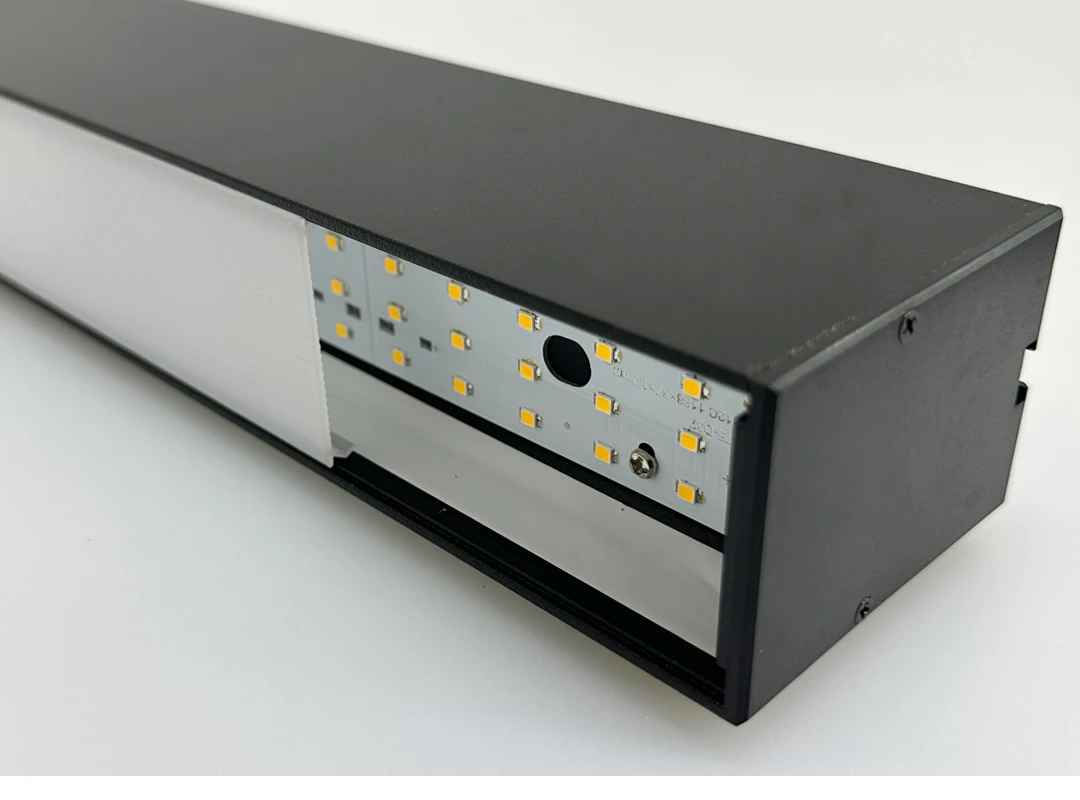

* High lumens LED board
* Built-in driver,PF>0.95,flicker free
* High efficiency LED board
* Range of length options,OEM option
* Wide-beam light distribution

Control Option
* Switch ON/OFF no dimming
* 0-10V dimming
* Triac dimming
* DALI dimming
* DALI DT8 dimming
