EN-4575 Lens Linear

W45xH75mm Lens LED Linear Light

Product Parameter

Input Voltage	AC220-240V,AC100-277V,50-60HZ
Profile Size	W45*H75mm
Length	4ft / 5ft / 6ft / 8ft
Watt	40W 50W 60W 80W
LED Chip	SMD3030
Color Temperature	3000K / 4000K / 6000K
Luminous Flux	100-110Lm/W
CRI	>90Ra
PF	>0.90
Flicker Free	Yes
SDCM	<3
Beam Angle	60° / 85°
Function Option	ON&OFF / 0-10V Dimming / DALI Dimming
Installation Option	Suspension Mount / Ceiling Mount / Wall Mount
IP Grade	IP20
Warranty	5 years

Model	Watt	Lumens	Product Size	Color Temperature
EN-4575LS-FG1.2M-P3	40W	4000Lm	L1205W45H75mm	3000K / 4000K / 6000K
EN-4575LS-FG1.5M-P3	50W	5000Lm	L1565W45H75mm	3000K / 4000K / 6000K
EN-4575LS-FG1.8M-P3	60W	6000Lm	L1805W45H75mm	3000K / 4000K / 6000K
EN-4575LS-FG2.4M-P3	80W	8000Lm	L2405W45H75mm	3000K / 4000K / 6000K

Model	Watt	Lumens	Product Size	Color Temperature
EN-4575LH-PZ1.2M-P3	40W	4000Lm	L1195W45H75mm	3000K / 4000K / 6000K
EN-4575LH-PZ1.5M-P3	50W	5000Lm	L1492W45H75mm	3000K / 4000K / 6000K
EN-4575LH-PZ1.8M-P3	60W	6000Lm	L1789W45H75mm	3000K / 4000K / 6000K
EN-4575LH-PZ2.4M-P3	80W	8000Lm	L2383W45H75mm	3000K / 4000K / 6000K

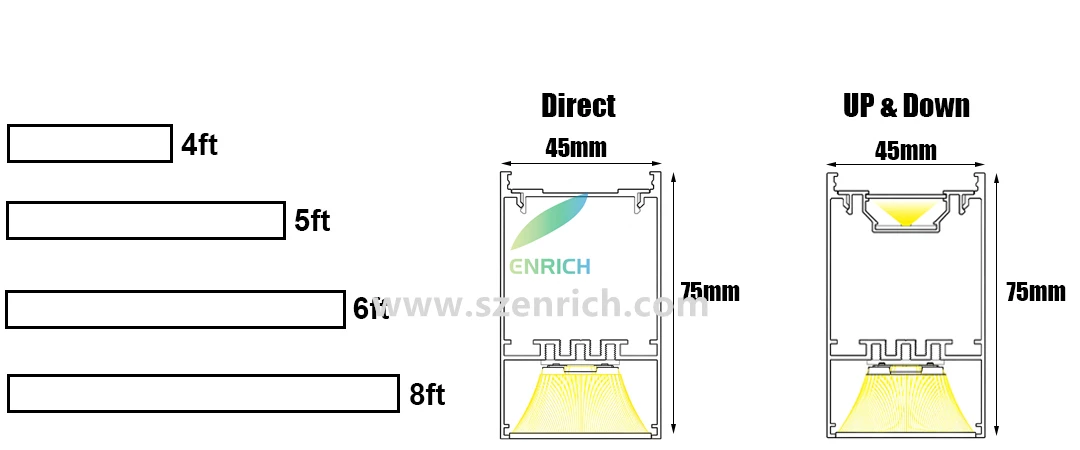

Product Size

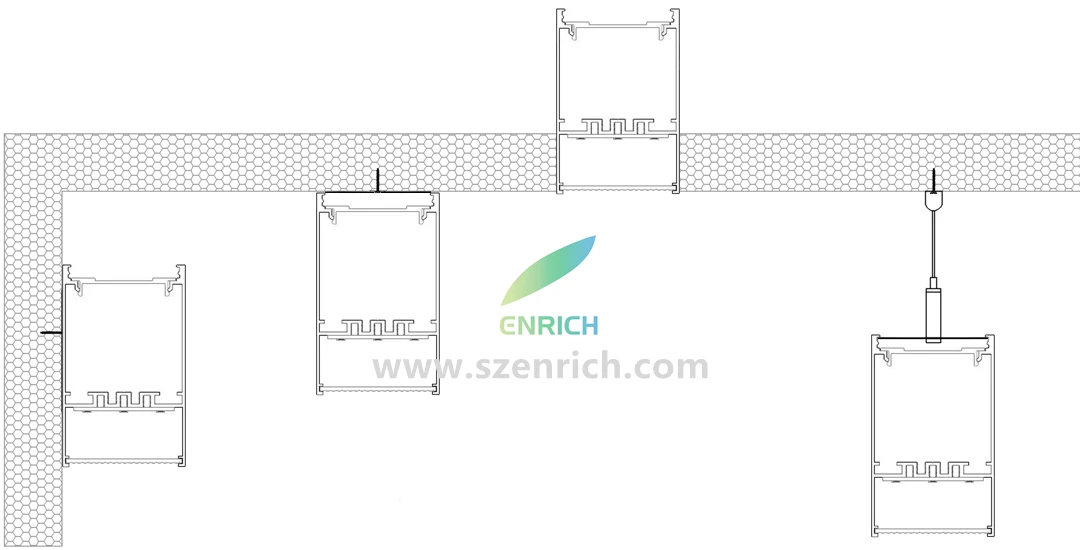

Installation Method

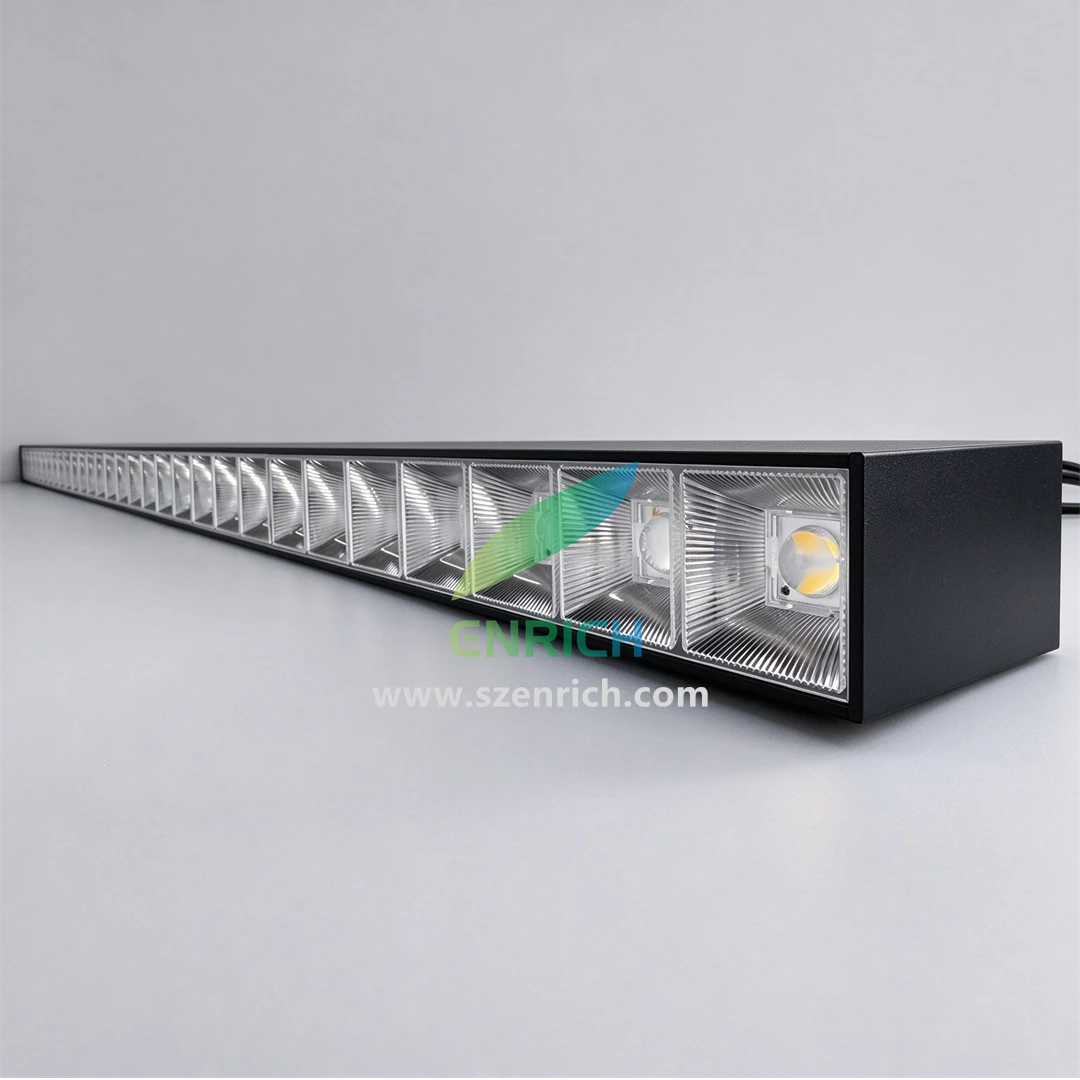

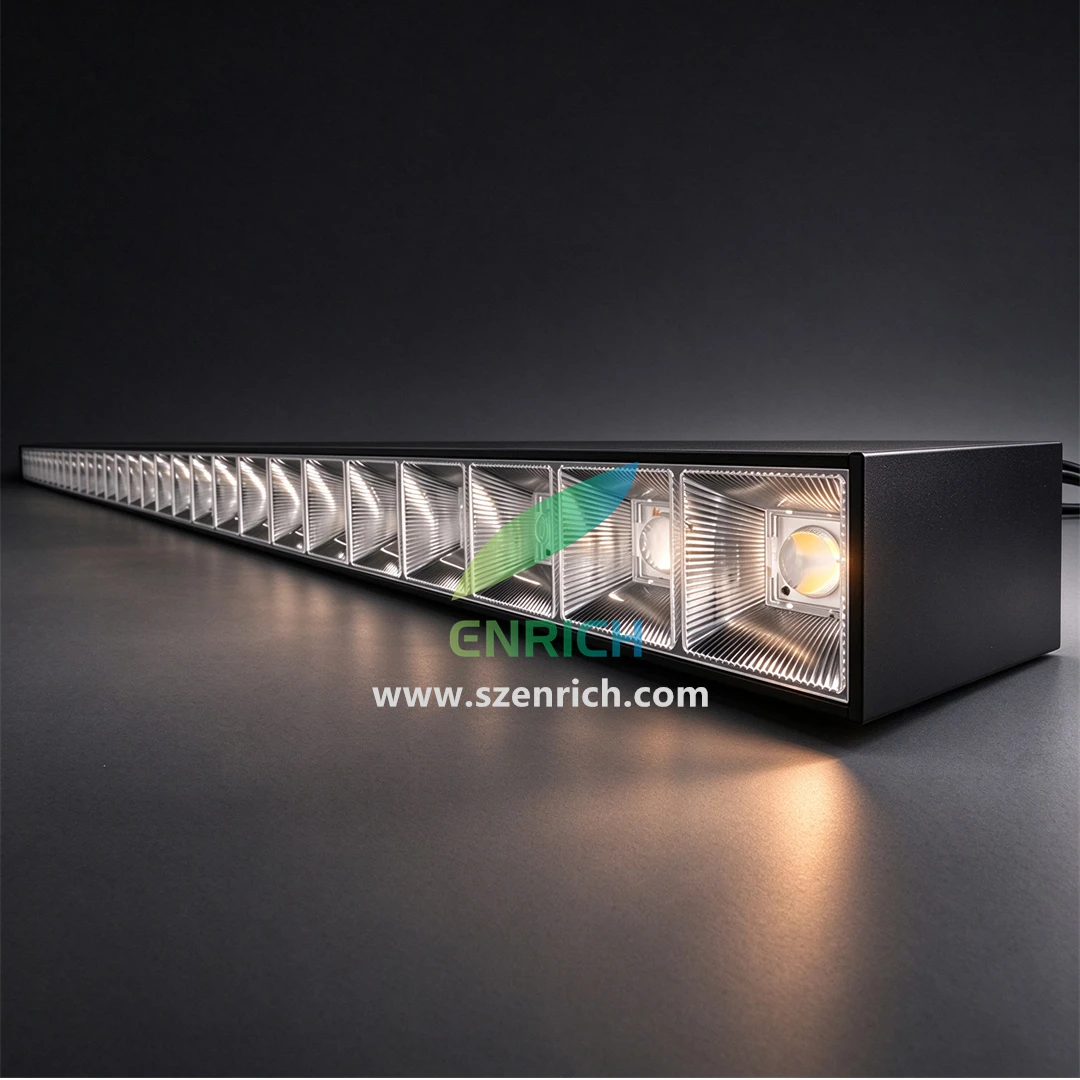

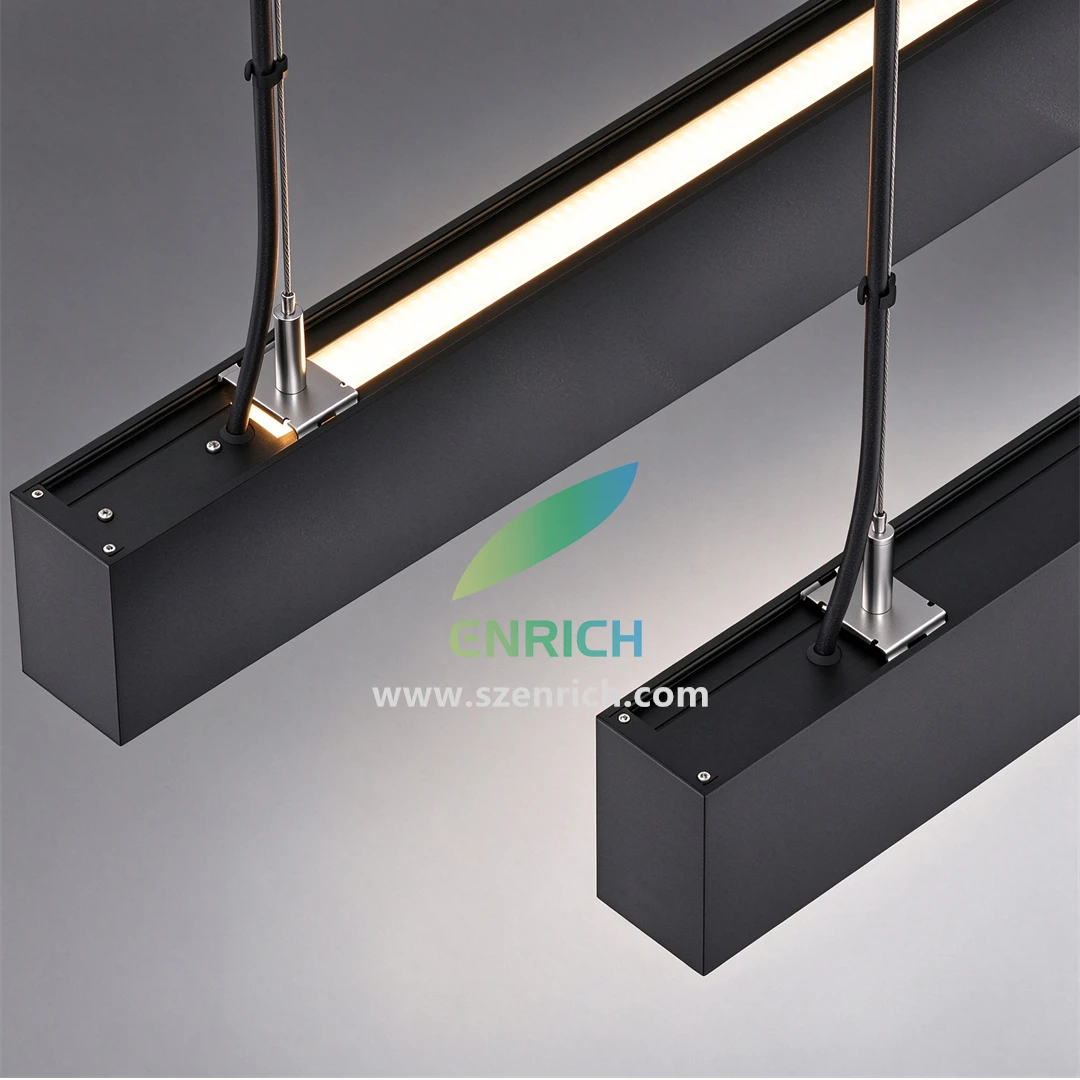

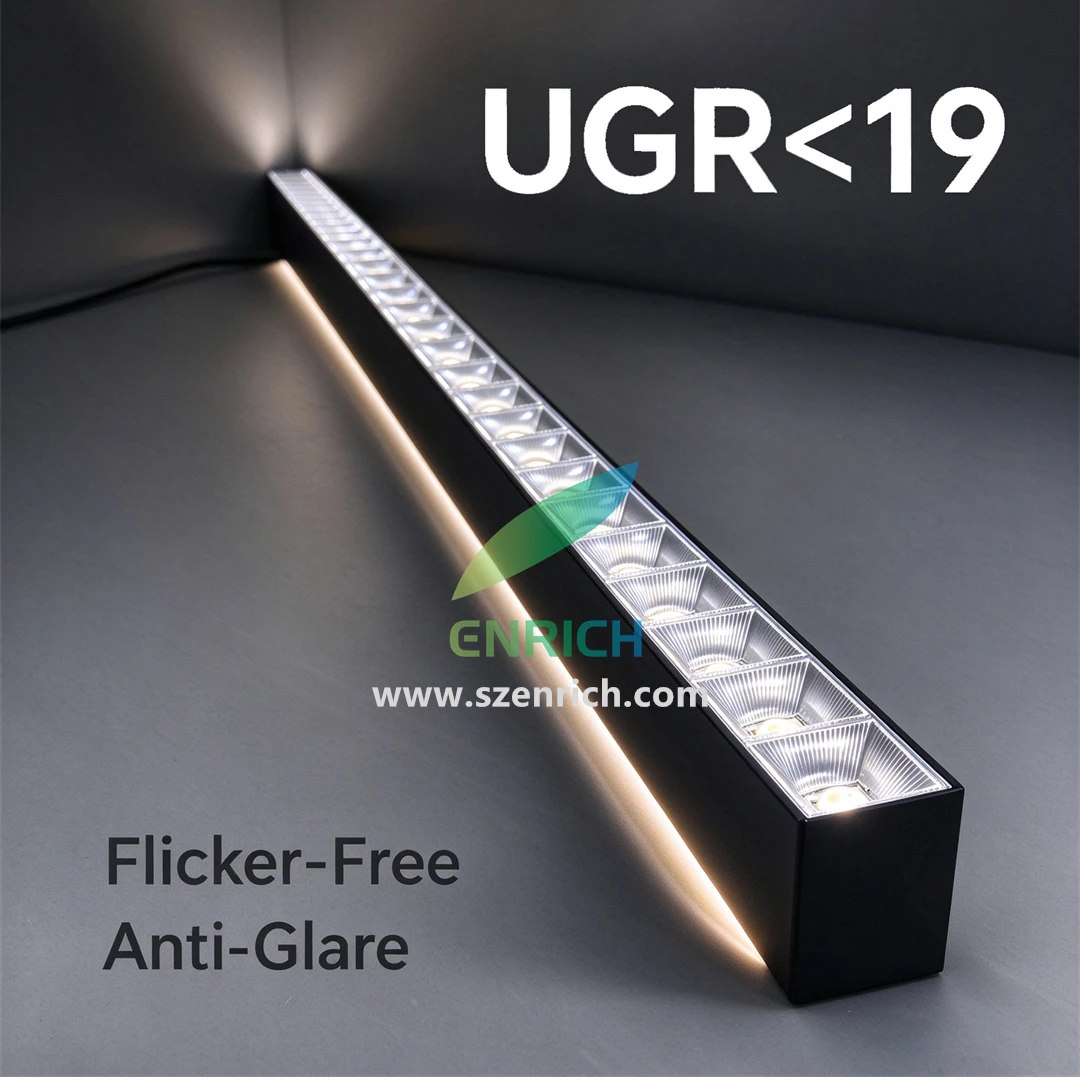

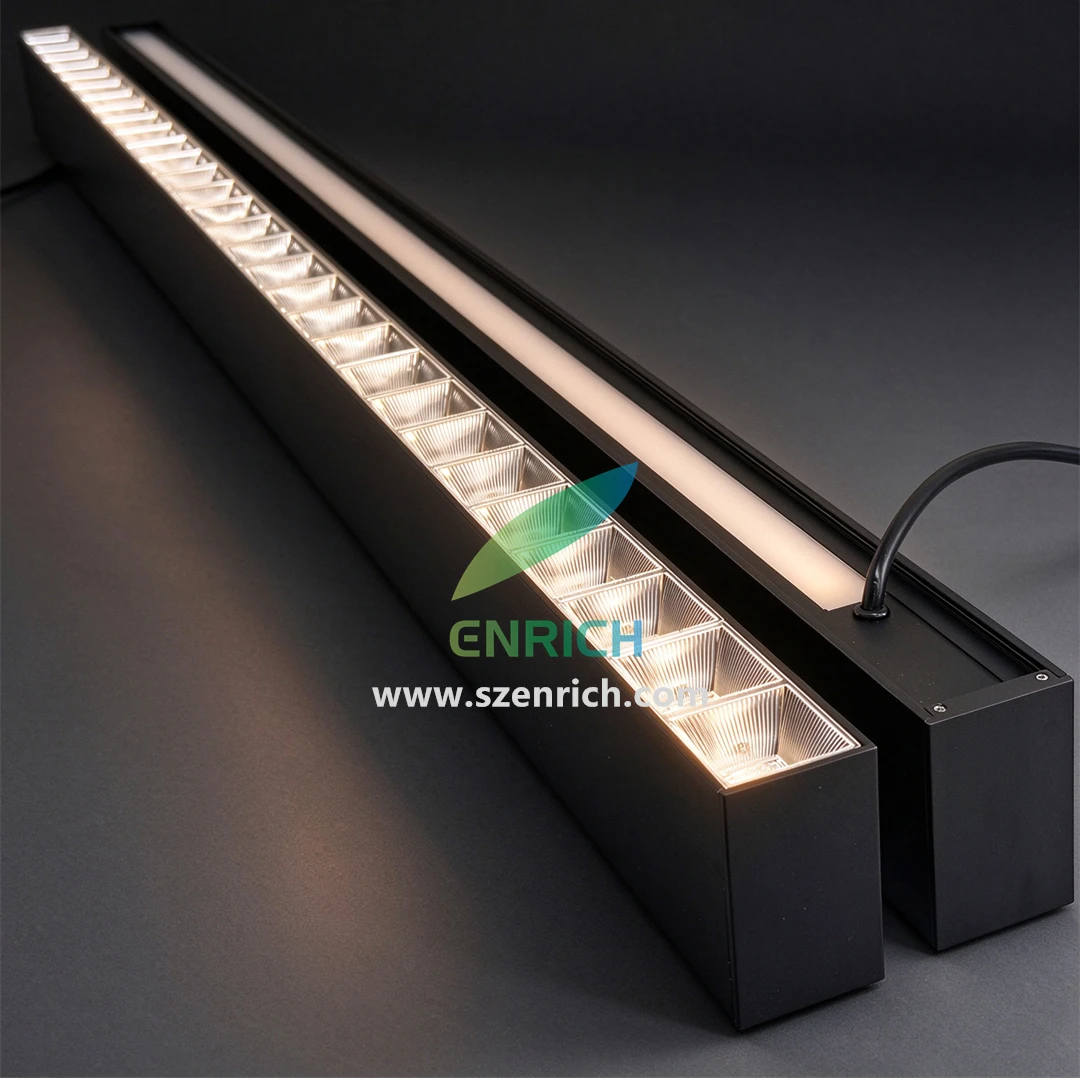

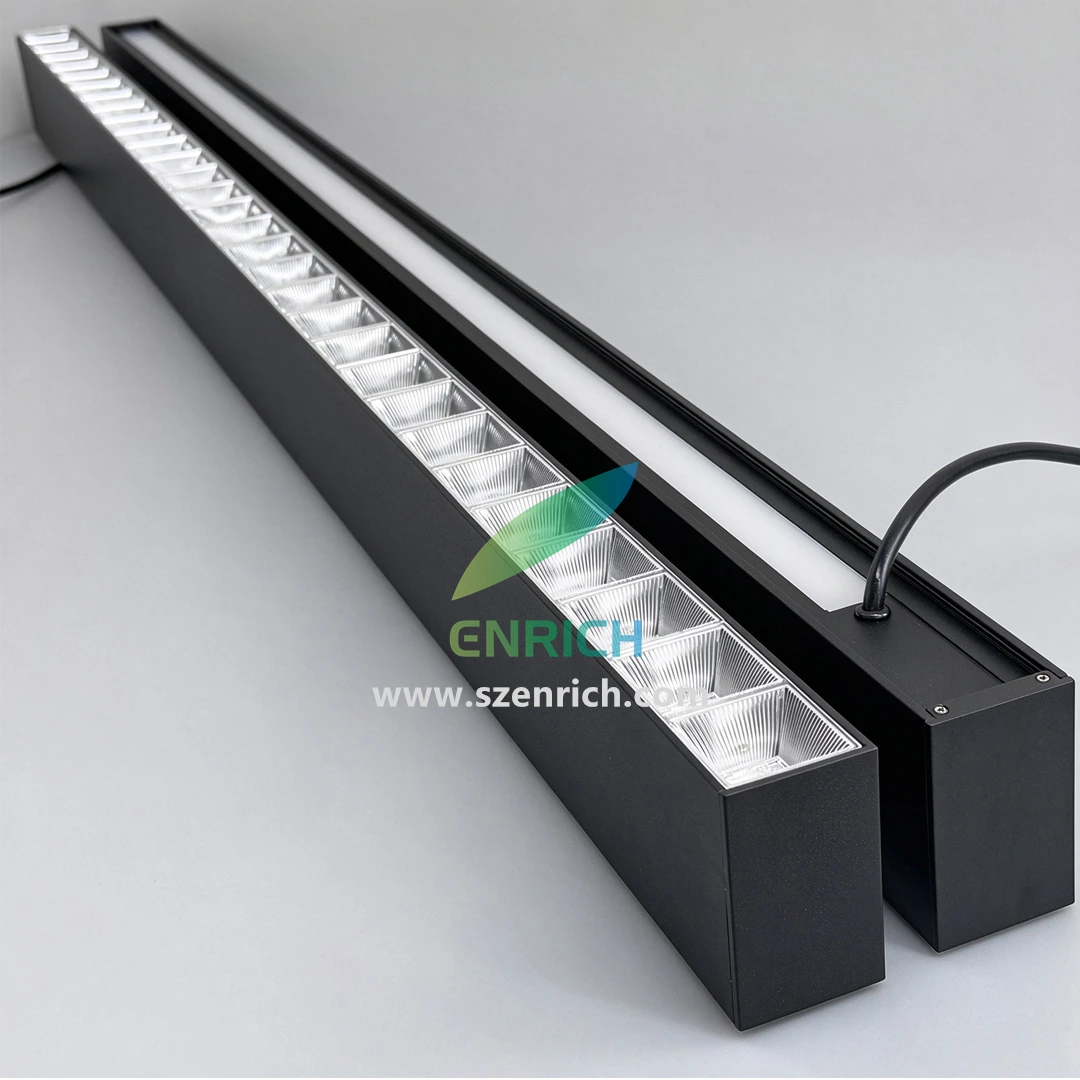

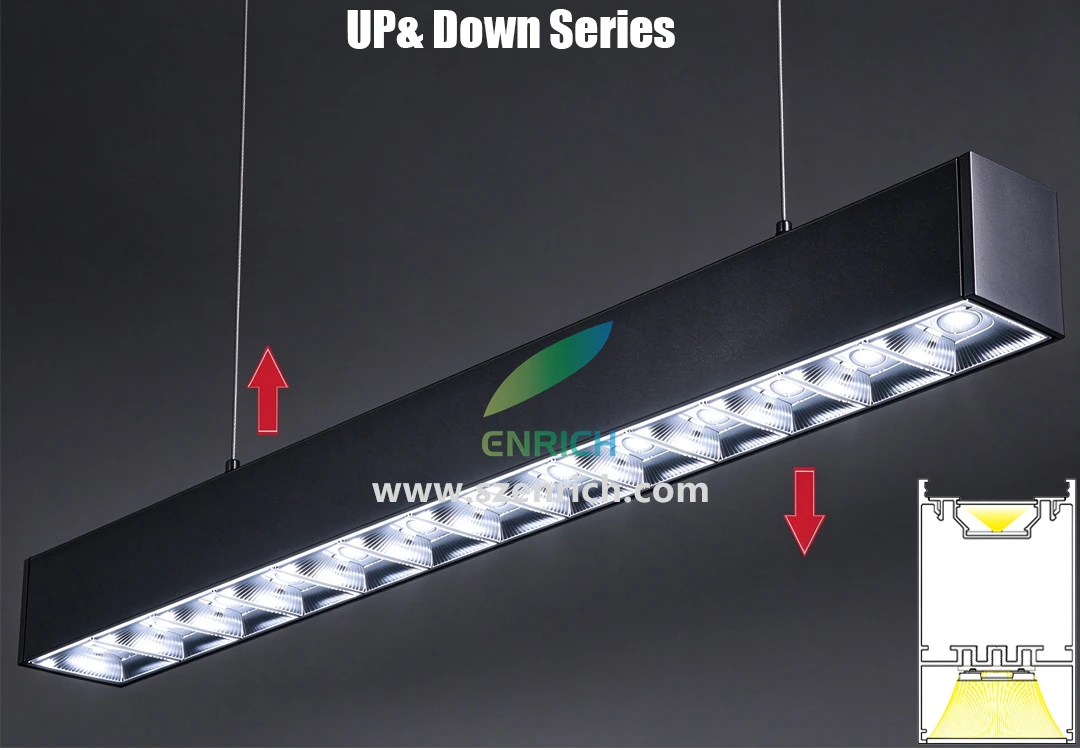

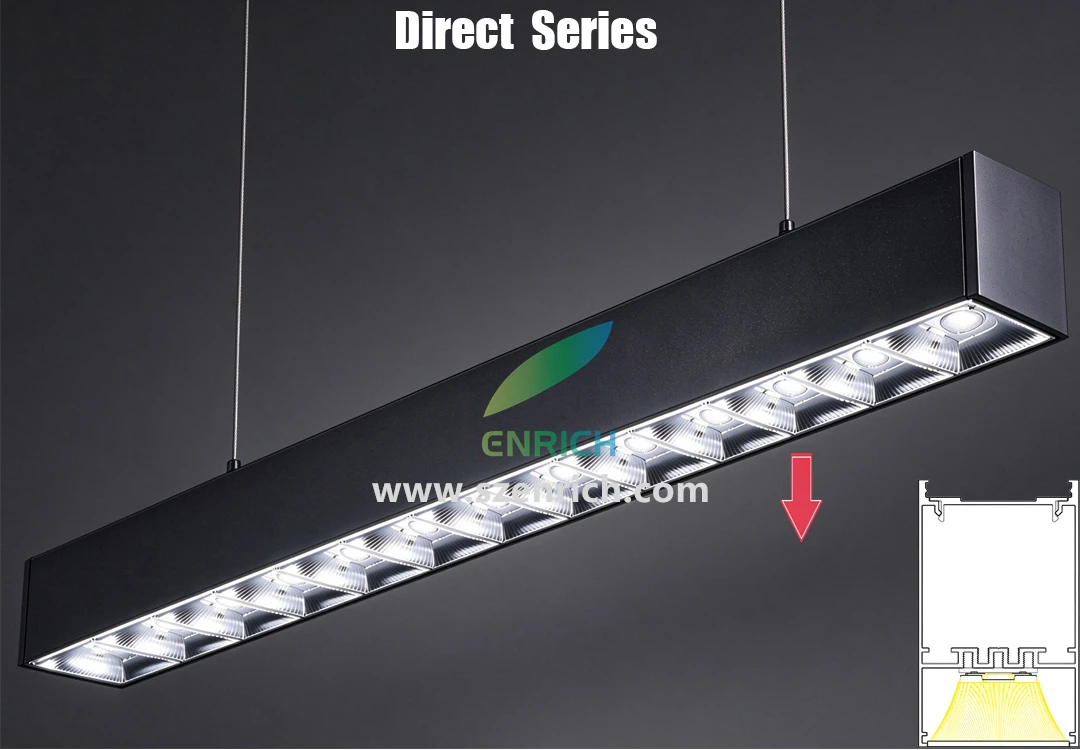

Product Details

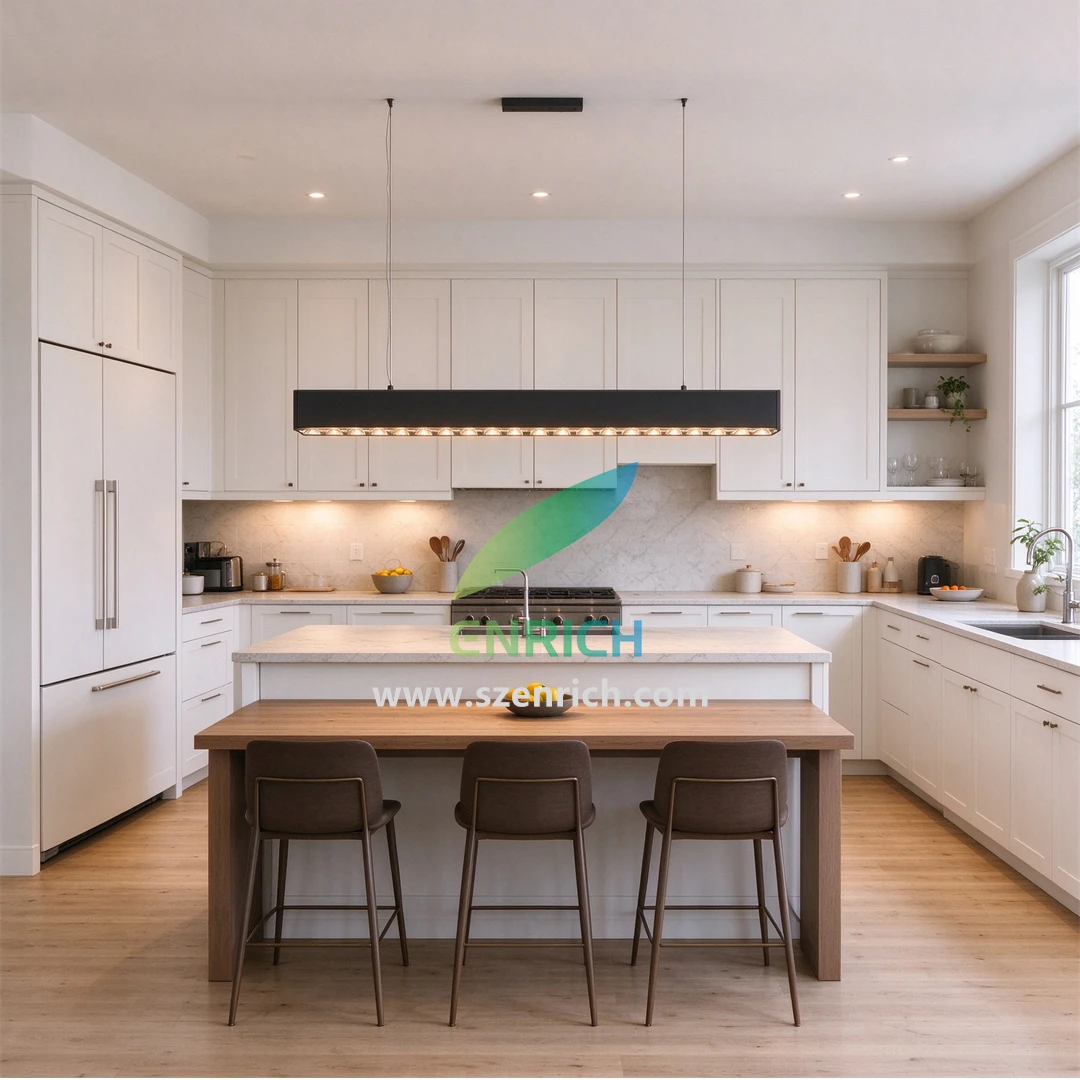

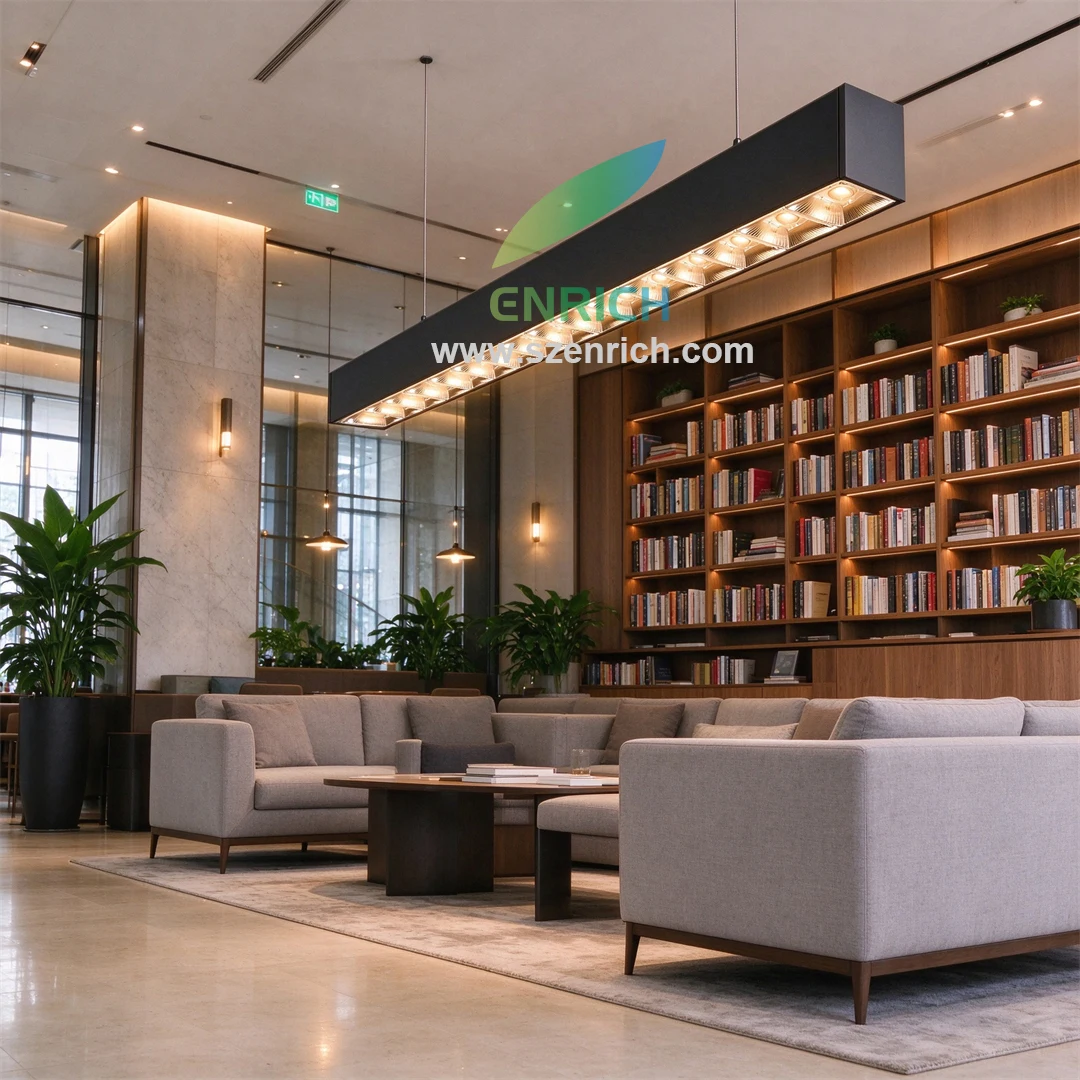

Application

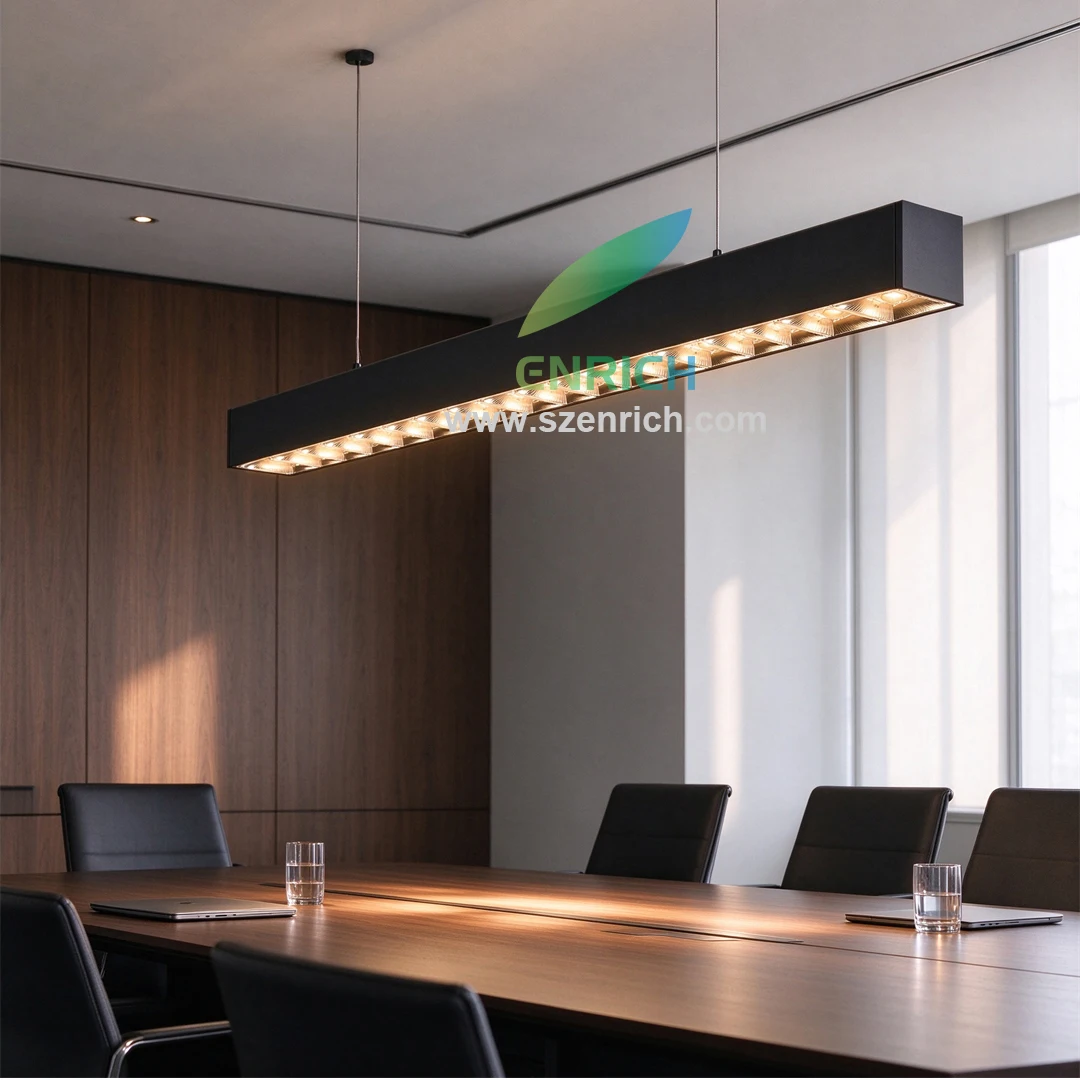

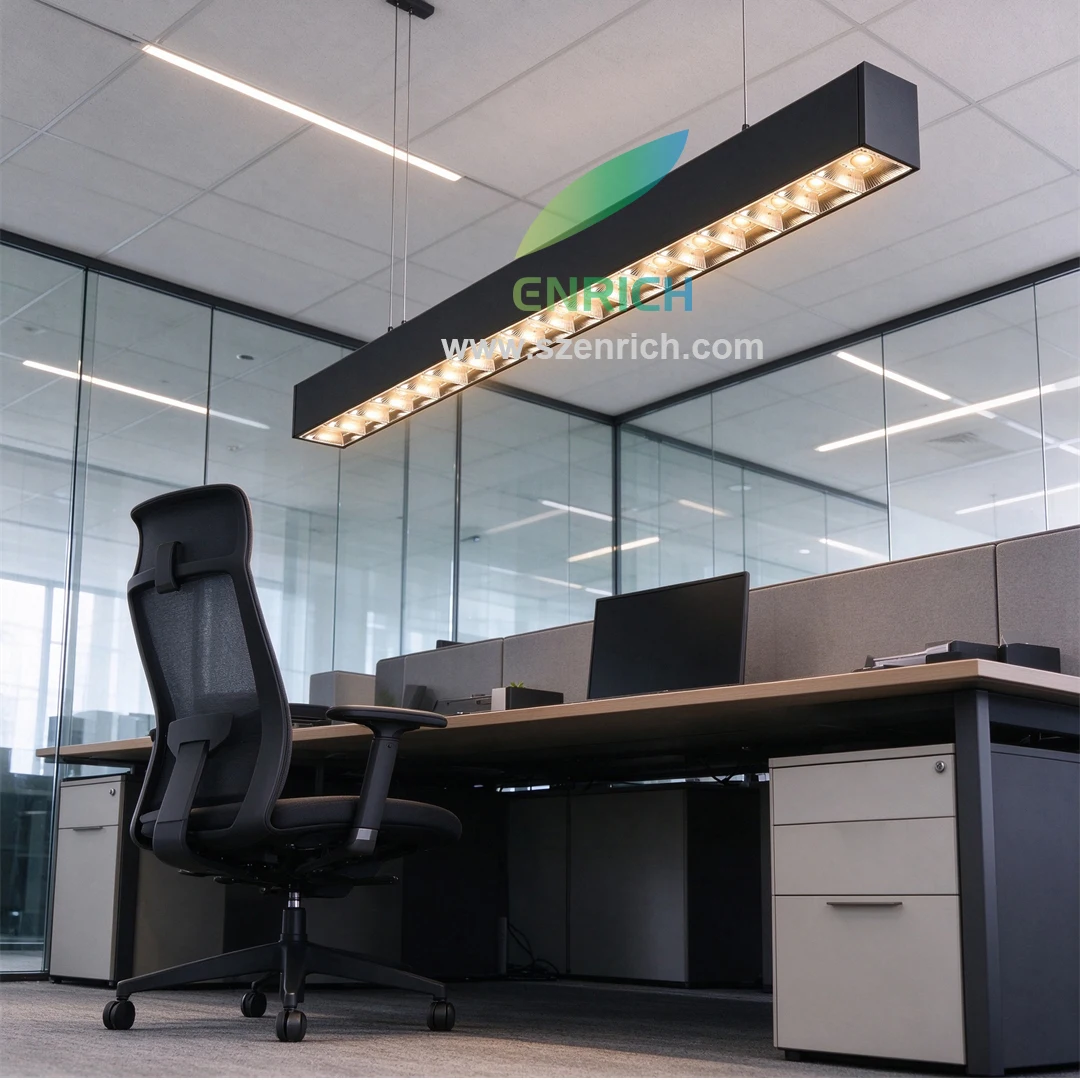

* Open‑plan office area, meeting room, negotiation room, manager’s office, private office cubicle.* Restaurant, hotel lobby, hotel guest room, corridor, café, bubble tea shop, lounge club, exhibition hall,boutique.
* Flat‑type large apartment living room, high‑ceiling living room, duplex /loft, high‑height space, large dining room.
* Wellness center, nursing home public area, gym lounge area, maker space.
