EN-COB-TD03

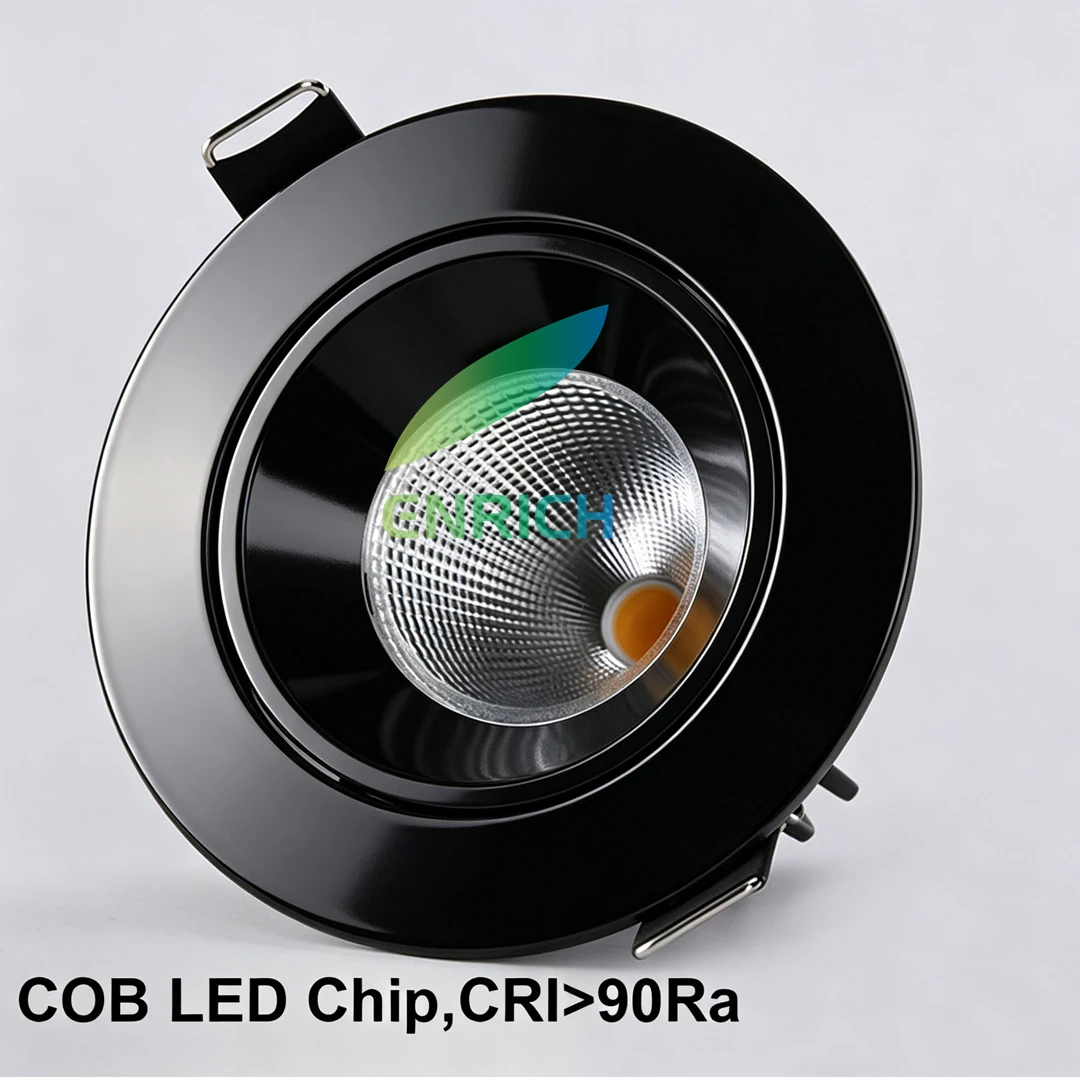

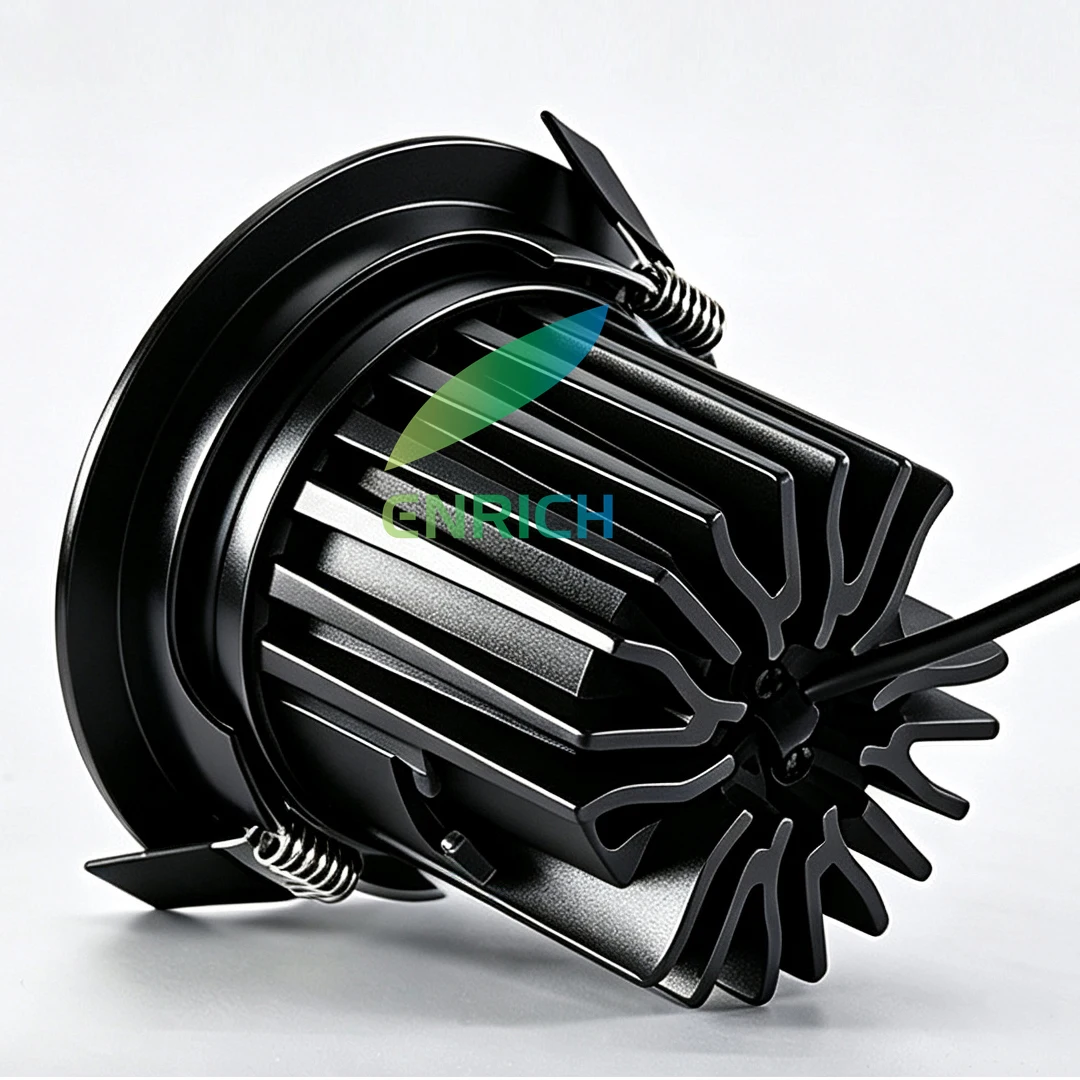

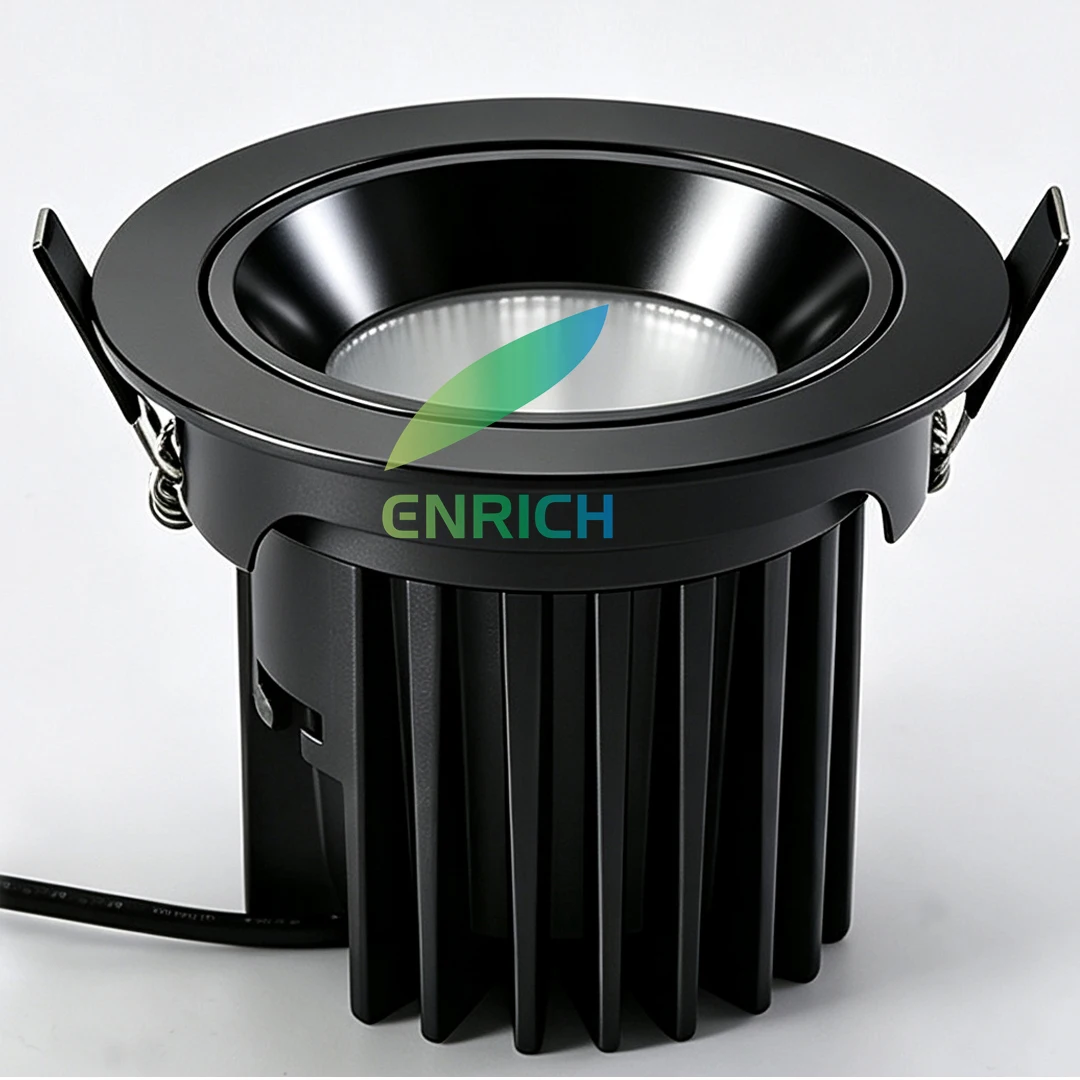

Recessed COB LED Downlight (EN-COBTD03)

Product Paramenters

Input Voltage	AC100-277V / AC220-240V,50-60HZ
Material	6063 Aluminium Profile + Reflector
Watt	5W / 7W / 12W / 20W / 25W
LED Chip	Bridgelux
Color Temperature	3000K / 4000K / 6000K
Luminous Flux	100-110Lm/W
CRI	>90Ra
PF	>0.90
Fllicker Free	Yes
SDCM	<3
Beam Angle	15° 24° 38°
Function Option	ON&OFF / Triac Dimming / 0-10V Dimming / DALI Dimming
Installation Option	Recessed Mount
Finish Color	Mat Black / Mat White
IP Grade	IP20
Warranty	5years

Model	Watt	Size	Emitting Color	Finish
EN-COB-TD03-5	5W	D79*H55mm	3000K / 4000K / 6000K	Black / White
EN-COB-TD03-7	7W	D79*H55mm	3000K / 4000K / 6000K	Black / White
EN-COB-TD03-12	12W	D94*H64mm	3000K / 4000K / 6000K	Black / White
EN-COB-TD03-20	20W	D109*H85mm	3000K / 4000K / 6000K	Black / White
EN-COB-TD03-25	25W	D109*H85mm	3000K / 4000K / 6000K	Black / White

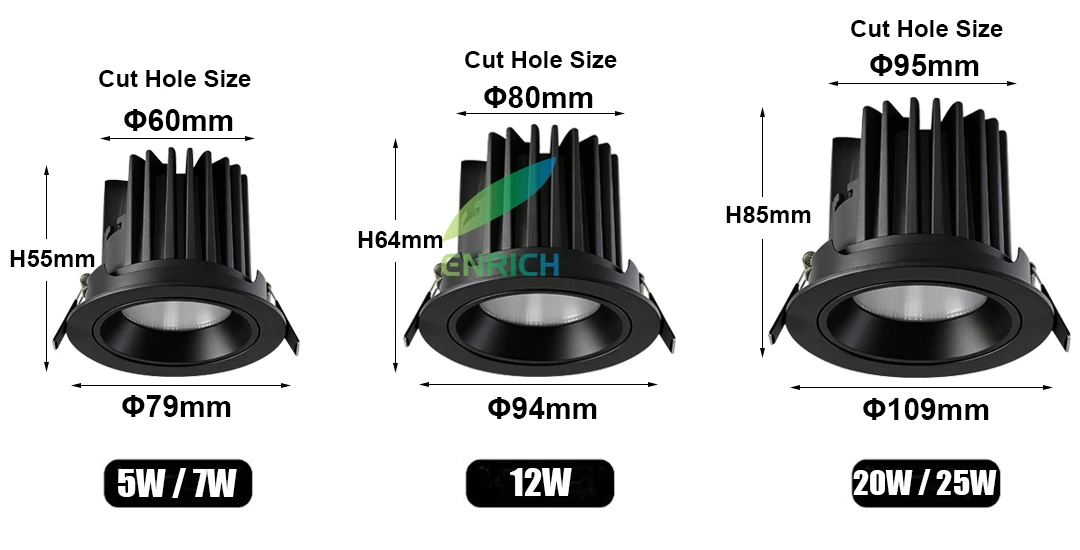

Product Size

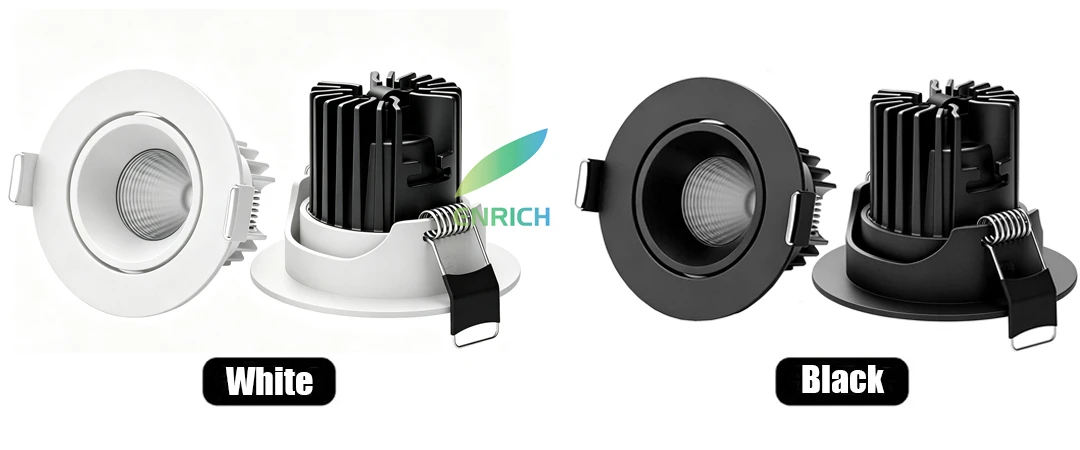

Finish Color Option

Installation Method

Recessed Mount

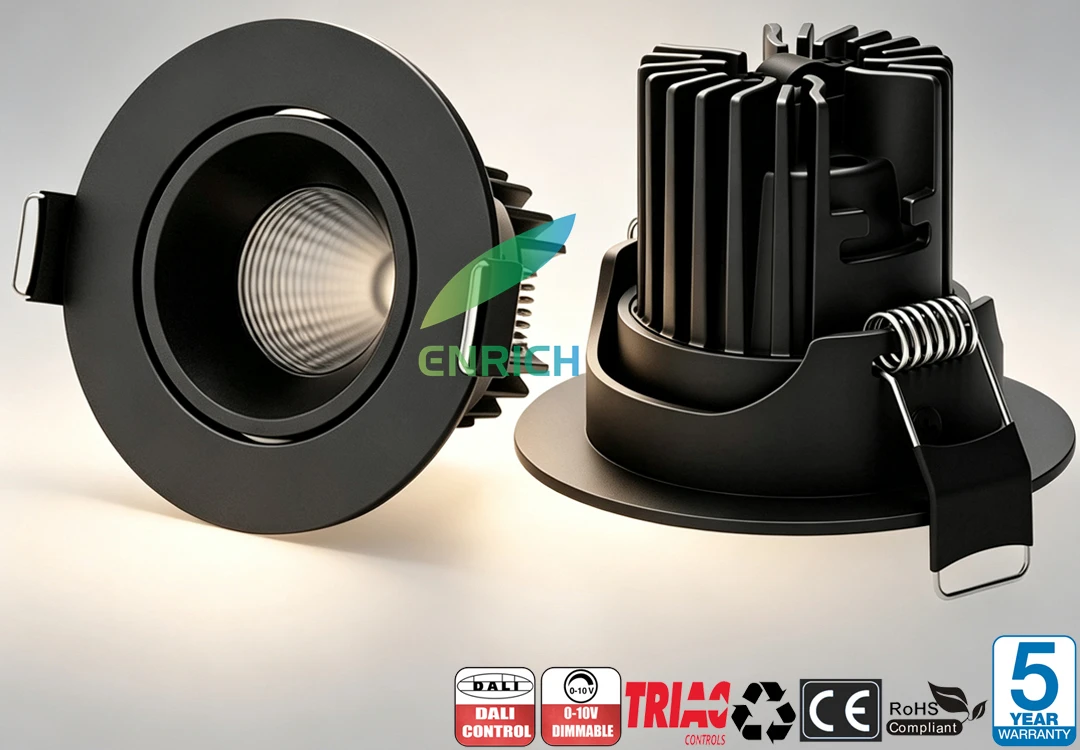

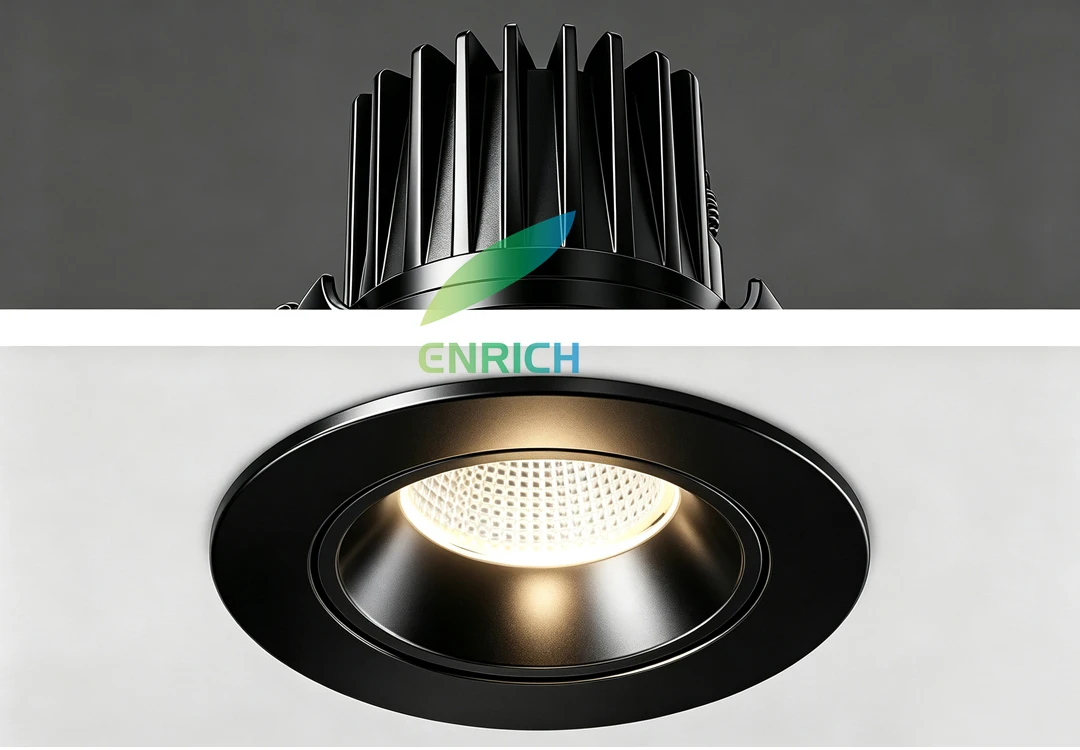

Product Display

Application

* Hospital,Gym,Theater,Cinema,Exhibition Hall,Museum,Video Game Room.* Hotel,Restaurant,Supermarket,Station,Airport,Cafe Shop,Bar,Club.
* Living Room,Bedroom,Conference Room,Office,Corridor,Lobby,etc.
