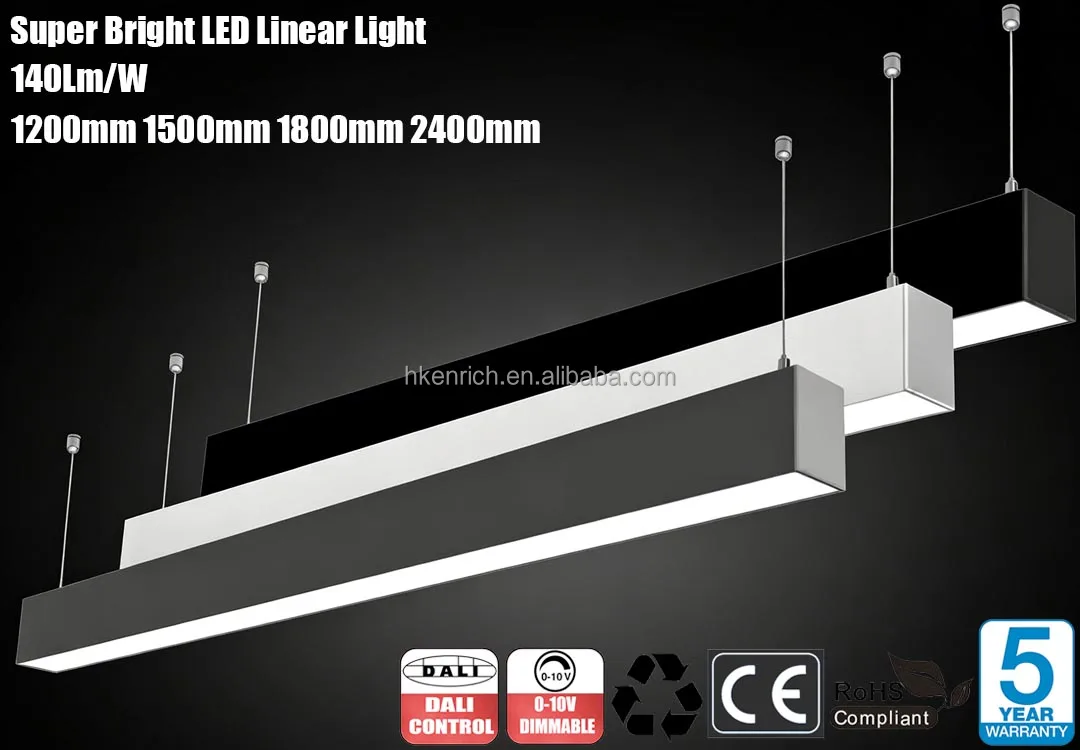

EN-5575 140Lm/W

Product Category

Your current location: Home > Products > LED Linear Light

EN-5575 140Lm/W

Product Paramenters

Input Voltage	AC100-277V / AC220-240V,50/60HZ
Profile Size	W55*H75mm
Luminous Flux	140Lm/W
Length	1200mm / 1500mm / 1800mm / 2400mm
Watt	40W / 50W / 60W / 80W
Material	6063 Aluminium Profile + Opal Diffuser
Driver Brand	BOKE / Cupower
LED Chip	SANAN SMD2835
Color Temperature	3000K / 4000K / 6000K
Luminous Flux	>80Ra
PF	>95
Flicker Free	Yes
SDCM	<3
Beam Angle	120°
Function Option	ON/OFF,0-10V Diming,DALI Dimming,Emergency
Installation Method	Suspension Mount / Ceiling Surface Mount
Finish Color	Black / White
IP Grade	IP20
Warranty	5years

Model	Watt	Lumens	CCT	Product Size
EN-5575-LS40W12	40W	5600lm	3000K/4000K/6000K	L1200*W55xH75mm
EN-5575-LS40W15	50W	7000lm	3000K/4000K/6000K	L1500*W55xH75mm
EN-5575-LS40W18	60W	8400lm	3000K/4000K/6000K	L1800*W55xH75mm
EN-5575-LS40W24	80W	11200lm	3000K/4000K/6000K	L2400*W55xH75mm

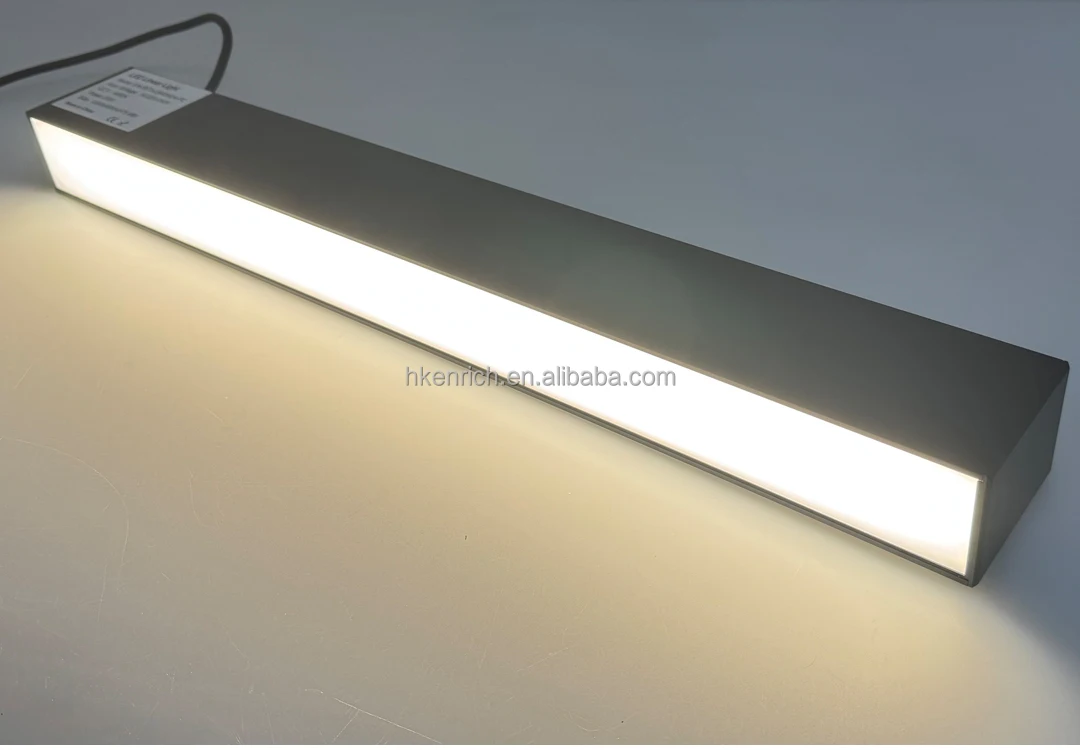

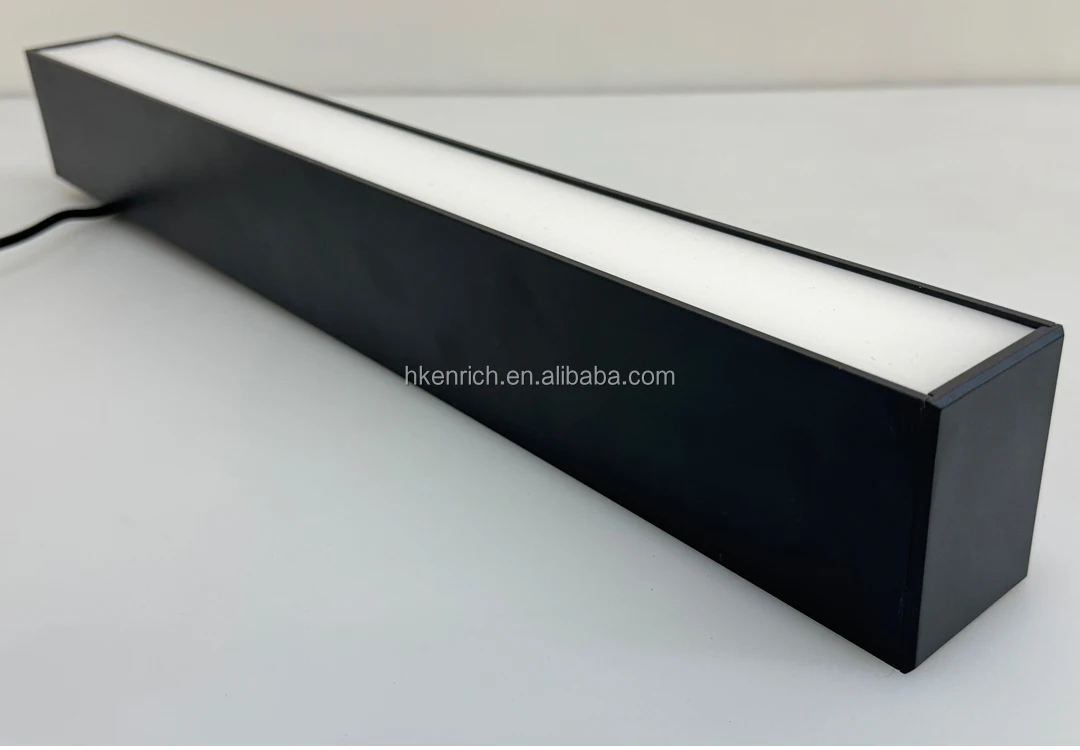

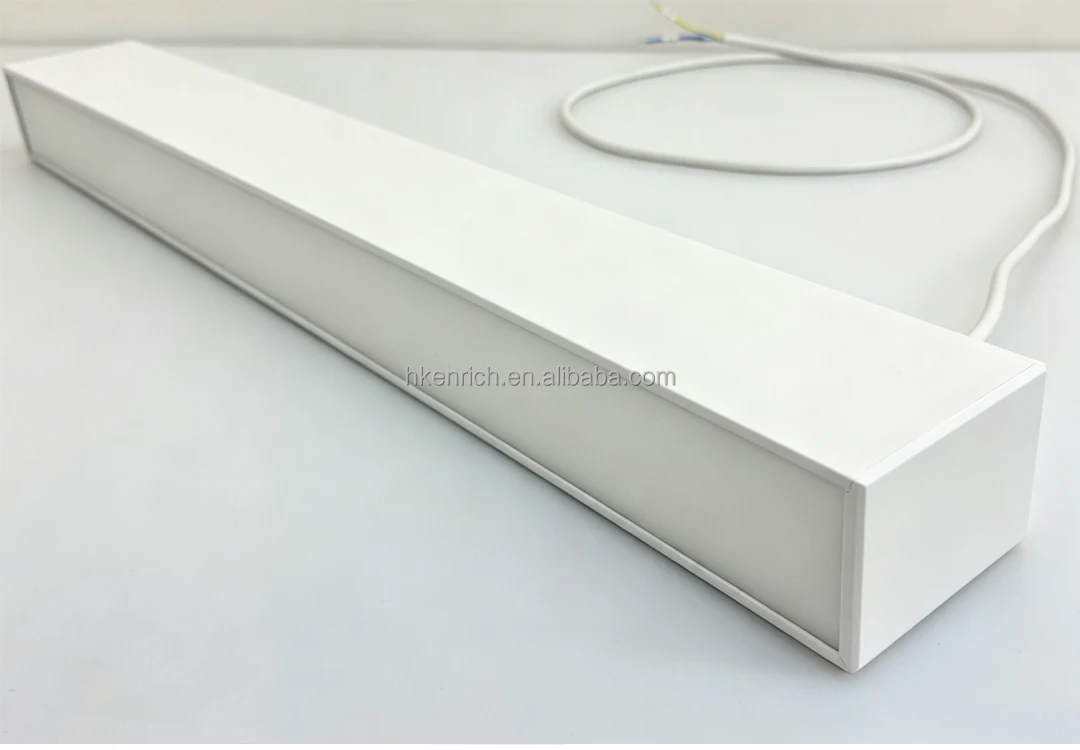

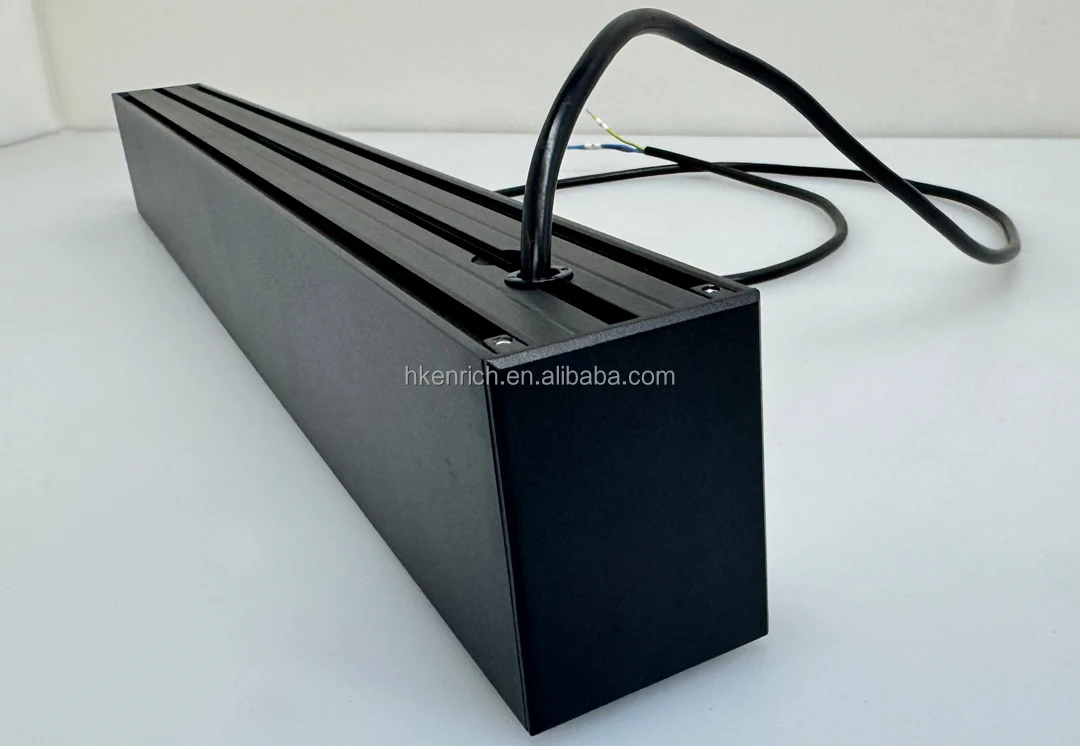

Shell Color

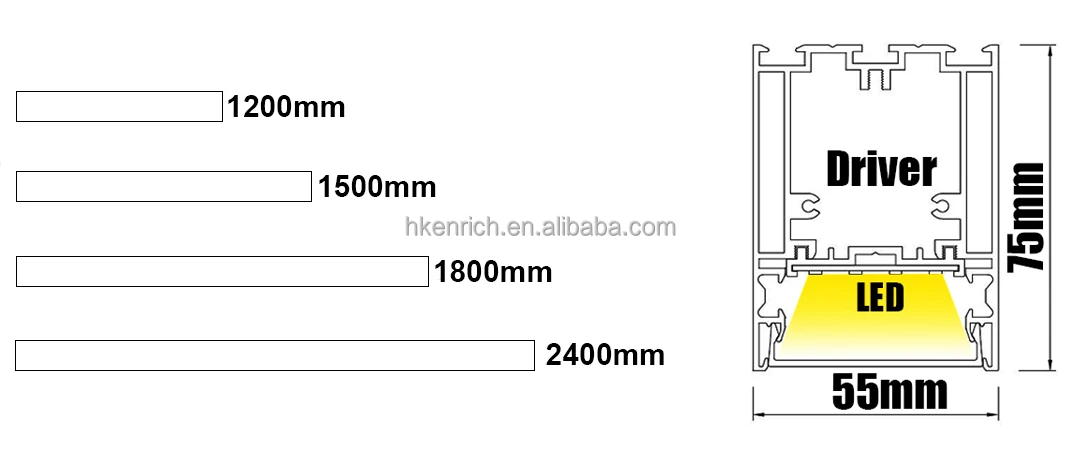

Product Size

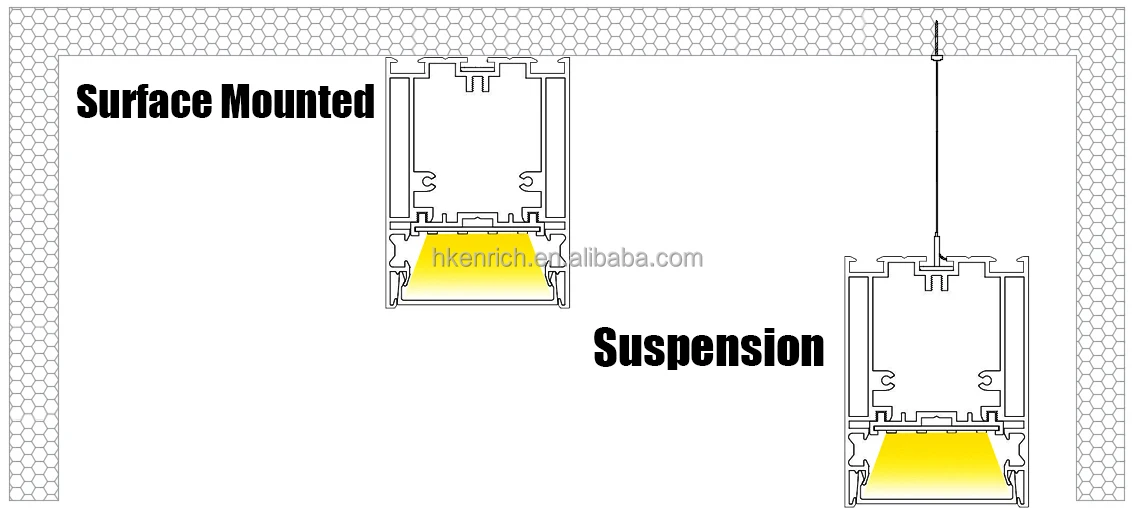

Installation Method

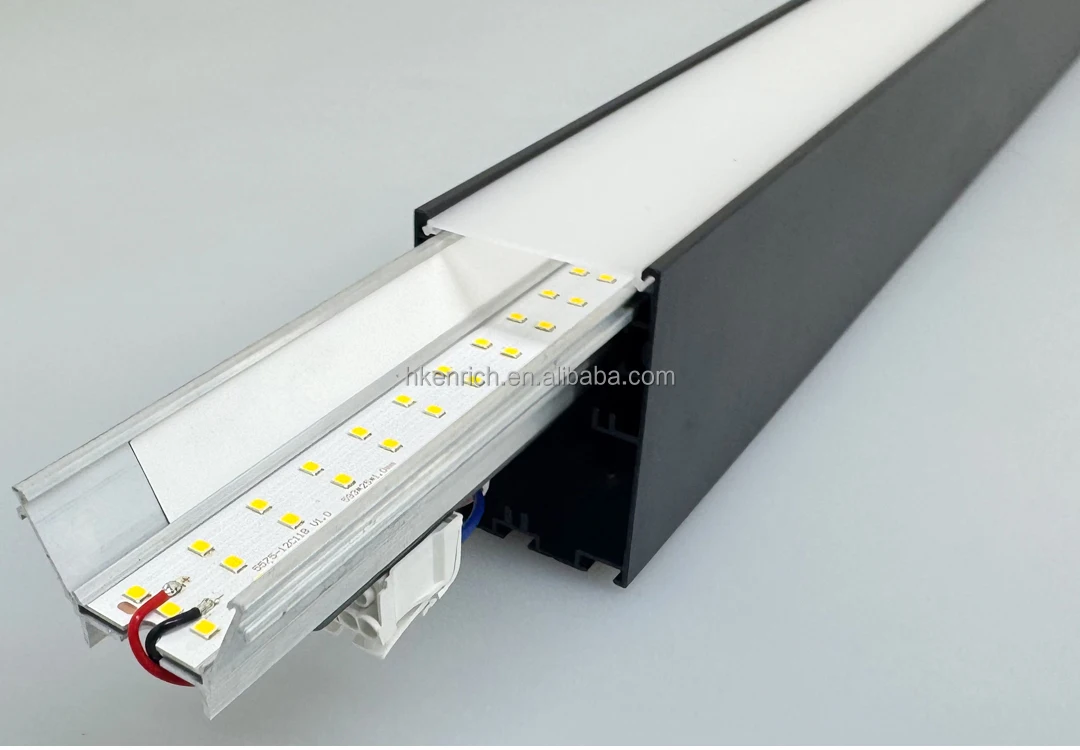

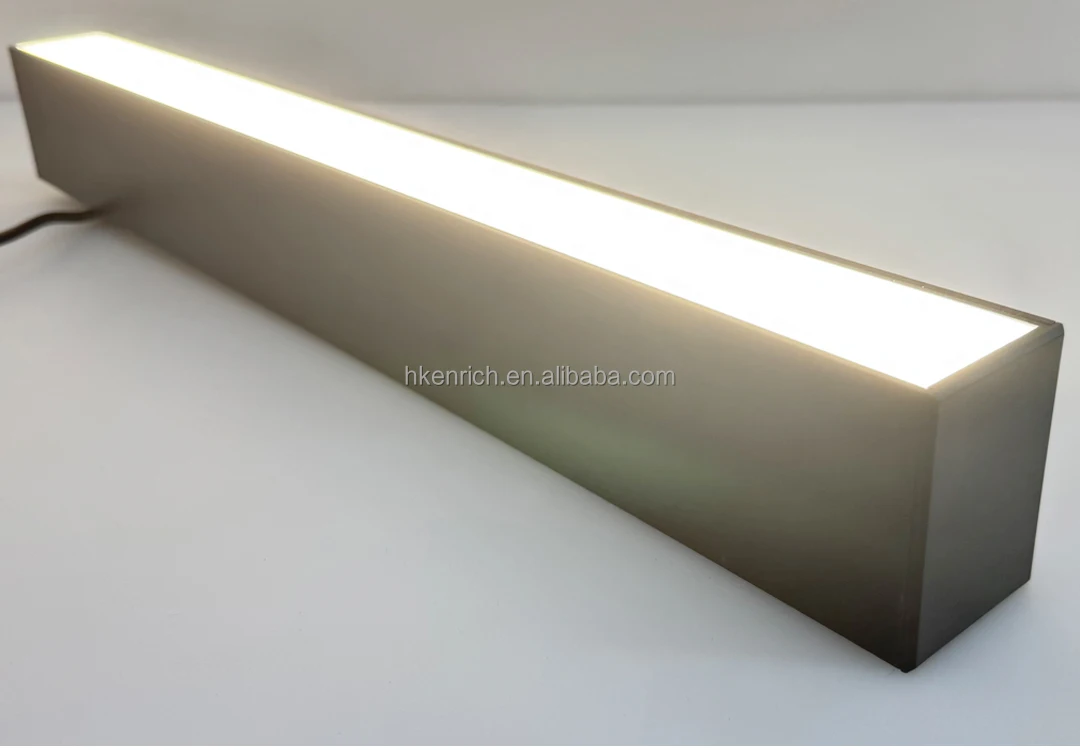

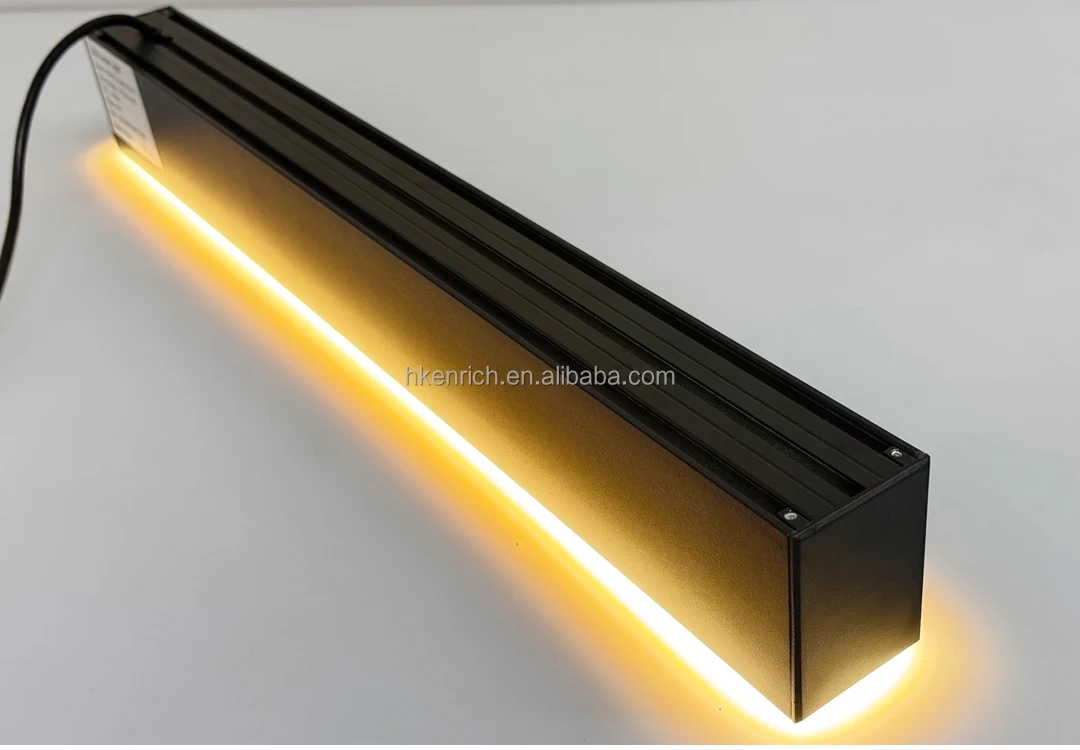

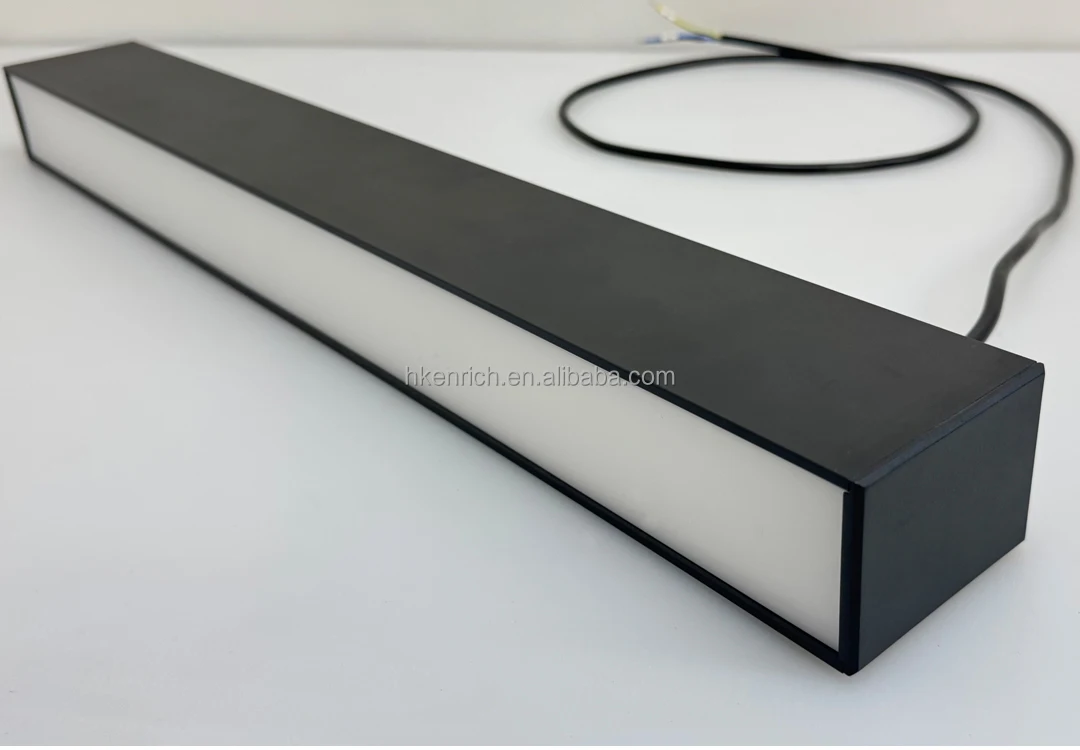

Product Display

Application

Hospital,Gym,Theater,Cinema,Exhibition Hall,Museum,Video Game Room.Hotel,Restaurant,Supermarket,Station,Airport,Cafe Shop,Bar,Club.
Living Room,Bedroom,Conference Room,Office,Corridor,Lobby,etc.
