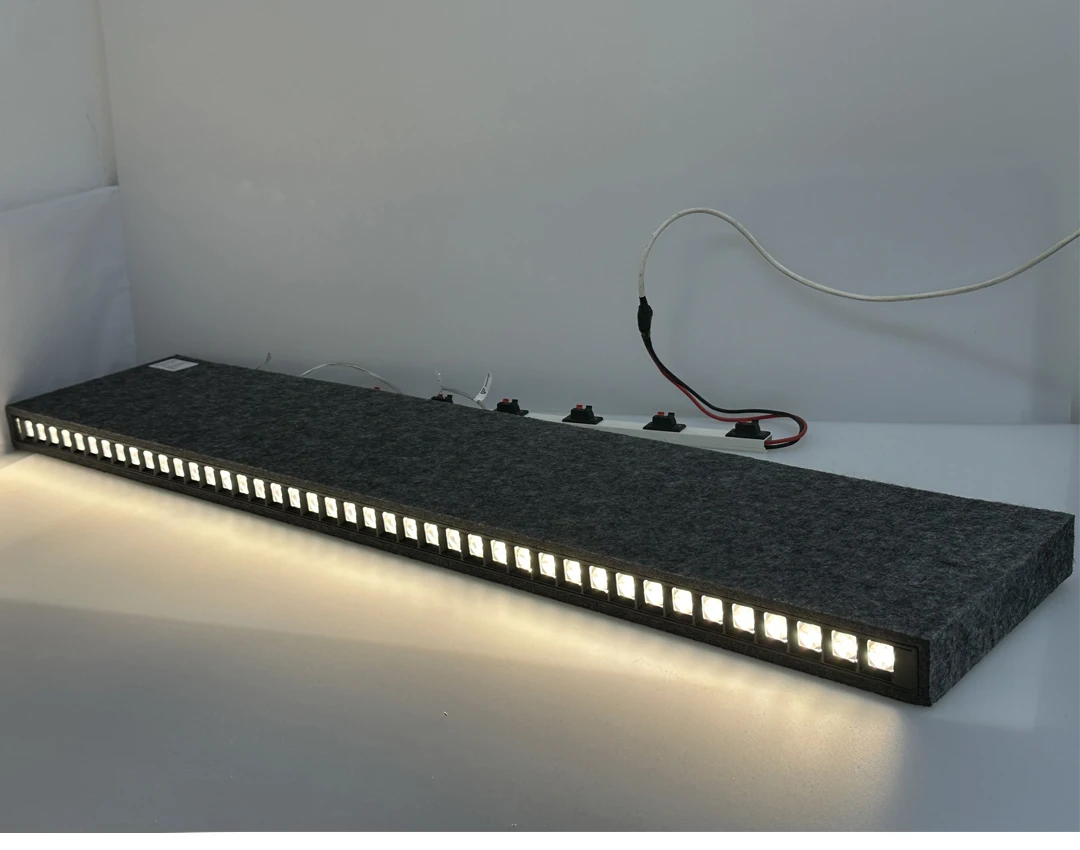

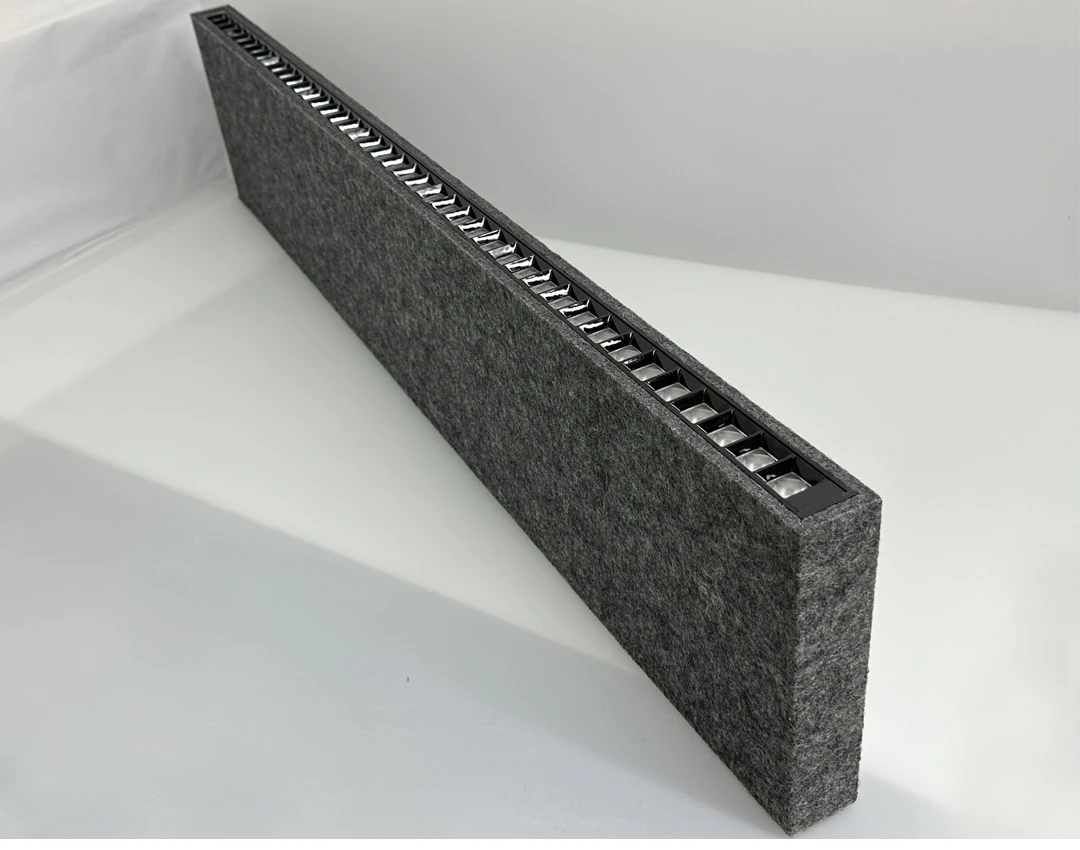

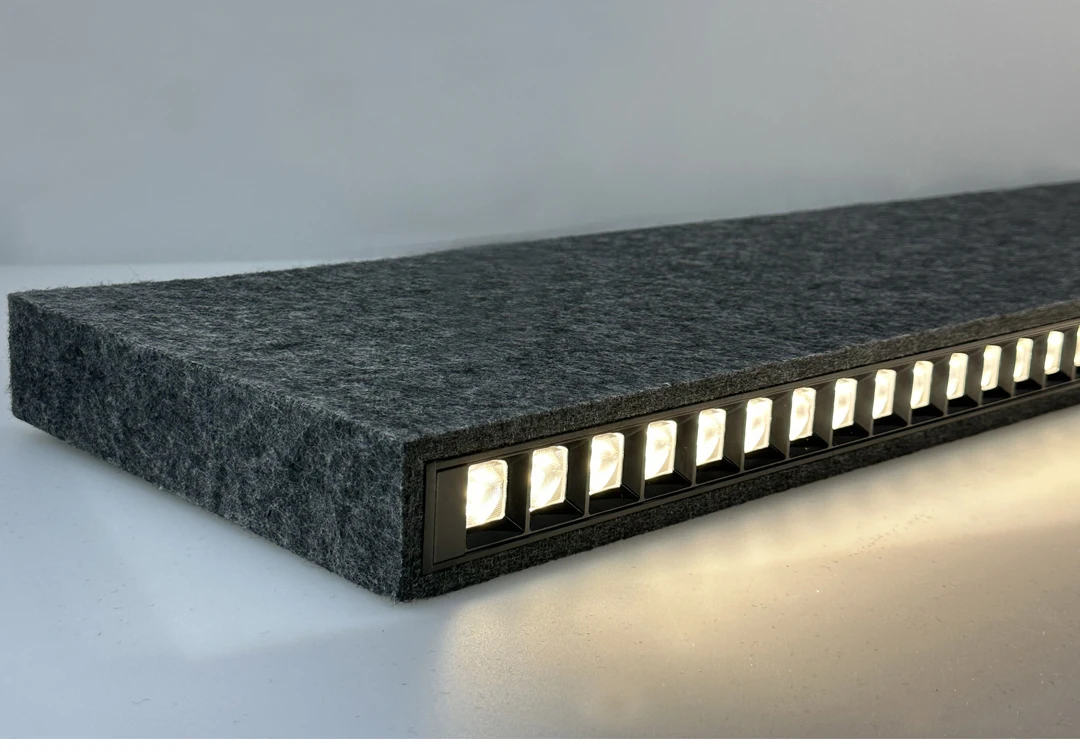

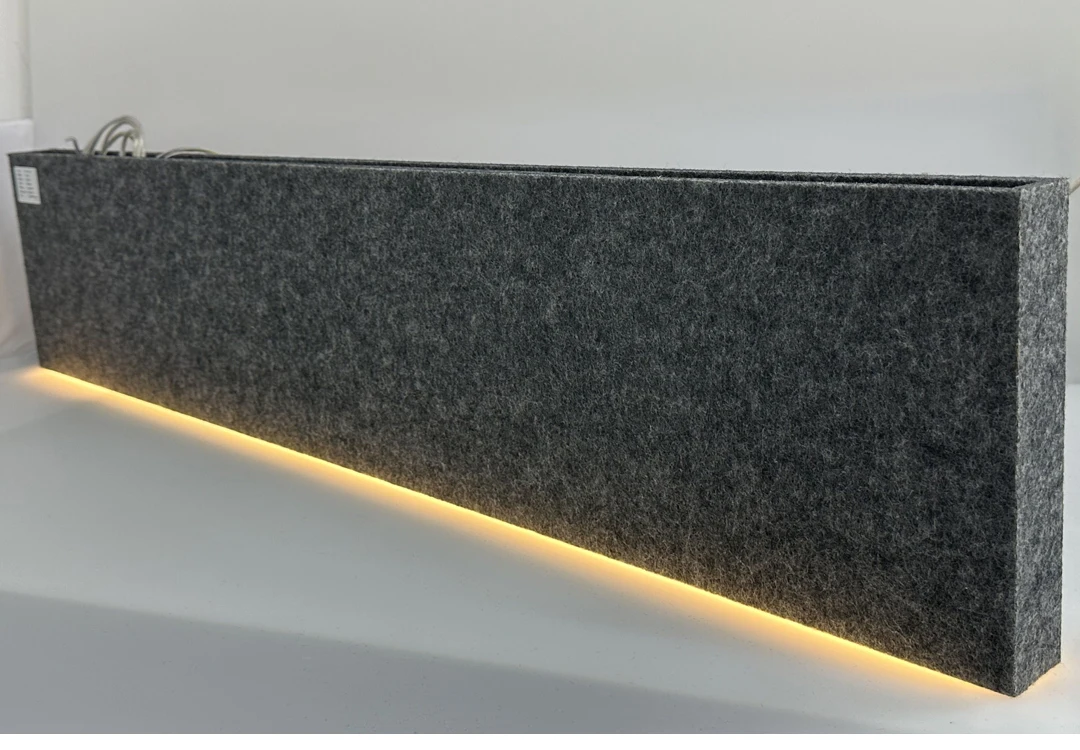

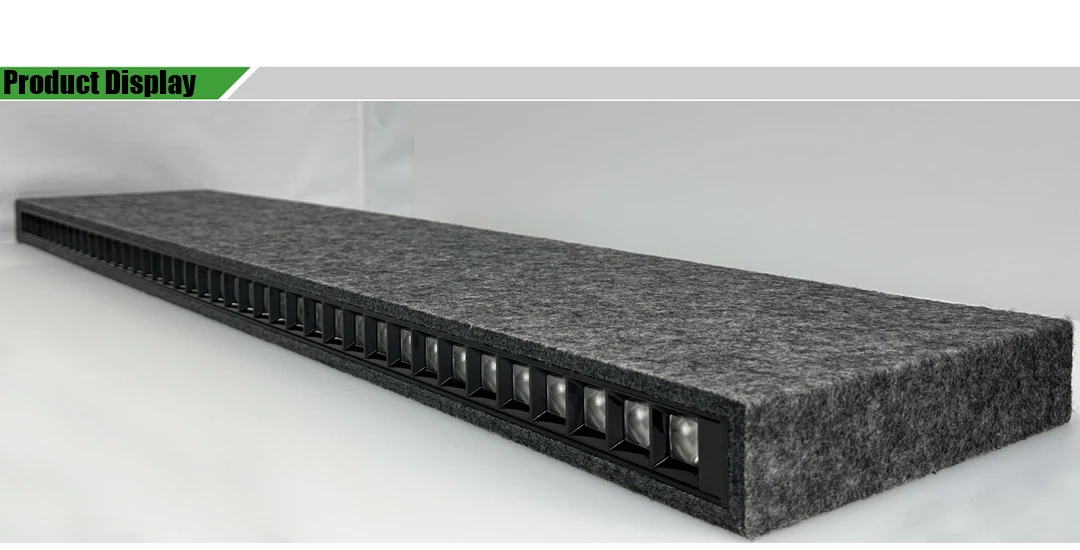

53mm Width Acoustic LED Reflector Linear Light
Product Parameters
Input Voltage | : AC110-120V / AC220-240V,50-60HZ |

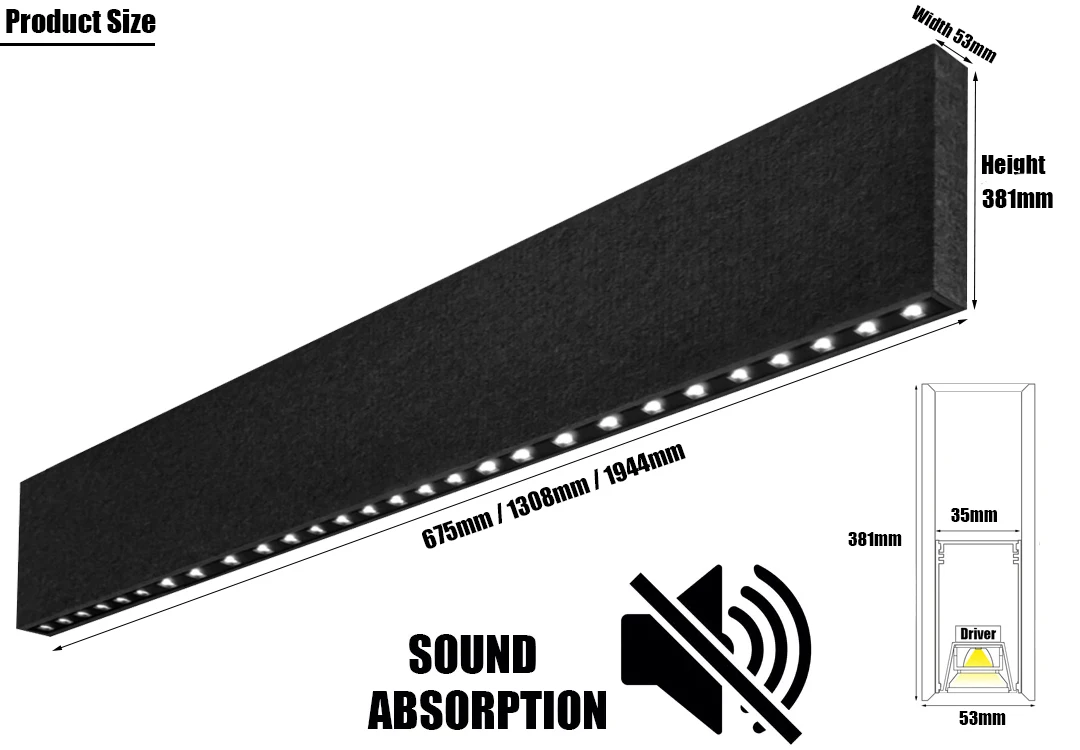

Width | : 53mm |
Height | : 381mm |
Length | : 675mm / 1308mm / 1944mm |
LED Chip | : SANAN SMD2835 |
Driver Brand | : BOKE / Cupower |
UGR | : <19 |
PF | : >0.90 |
CRI | : >80Ra ( >90Ra available) |
Luminous Flux | : 100Lm/W |
Beam Angle | : 34° |
CCT | : 3000K / 4000K / 6000K |

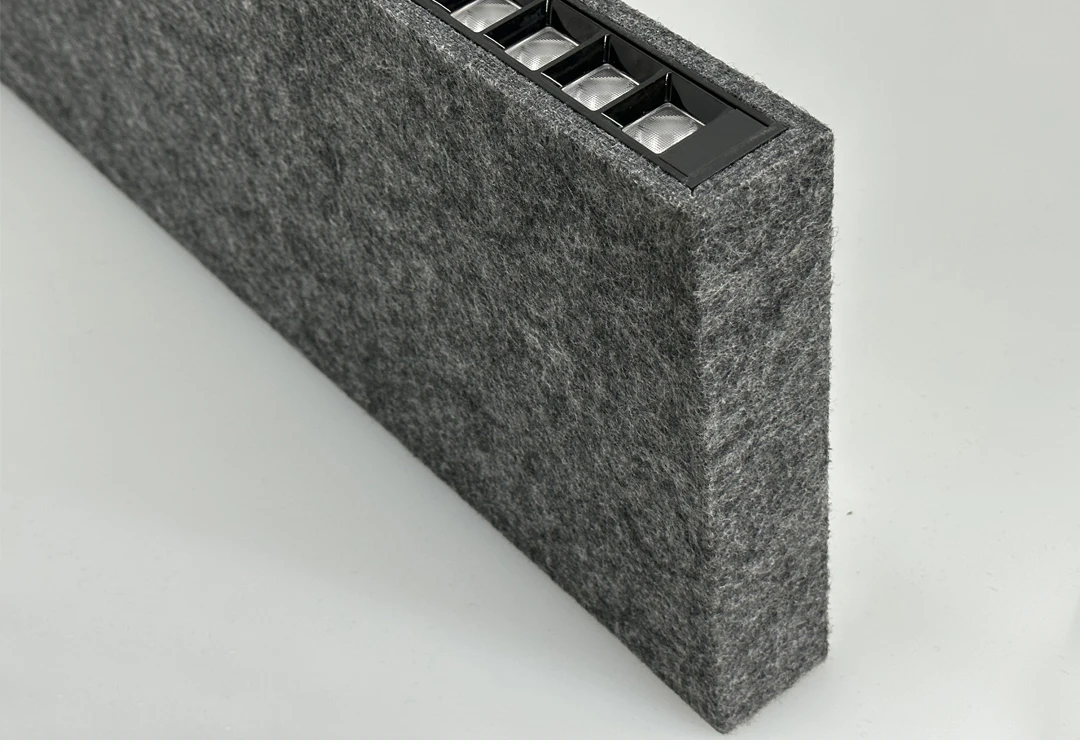

Material | : Aluminium + Acoustic Panel + Lens |

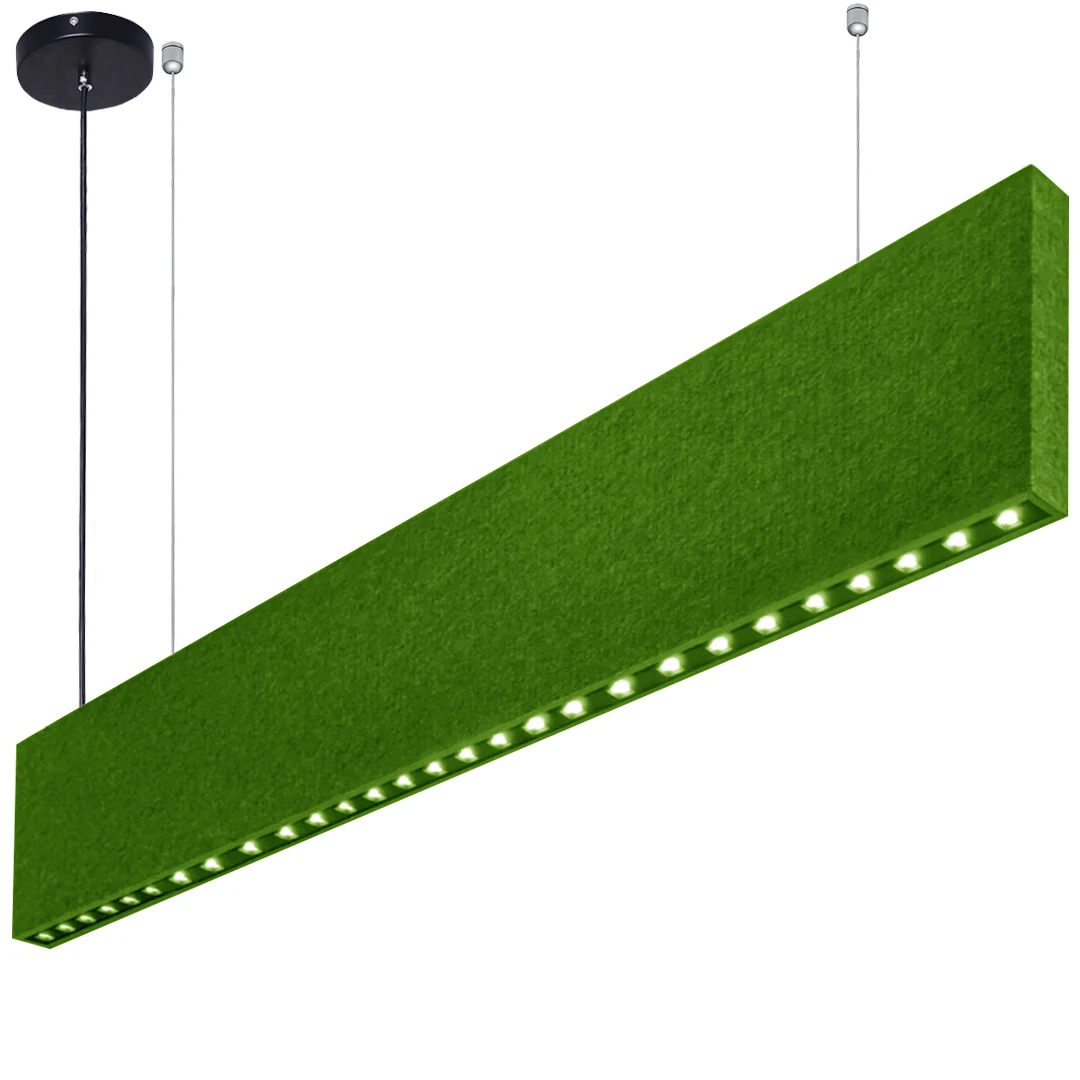

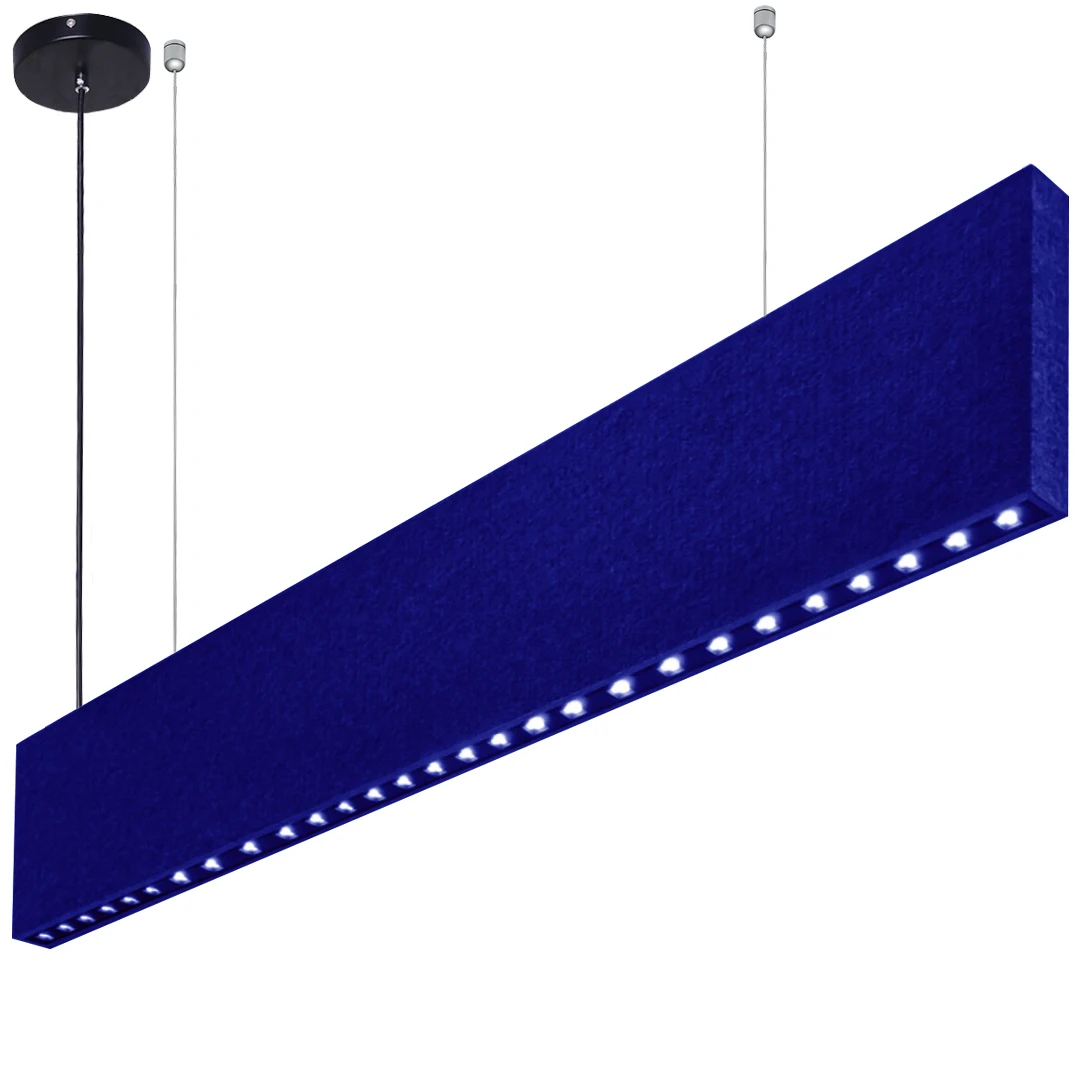

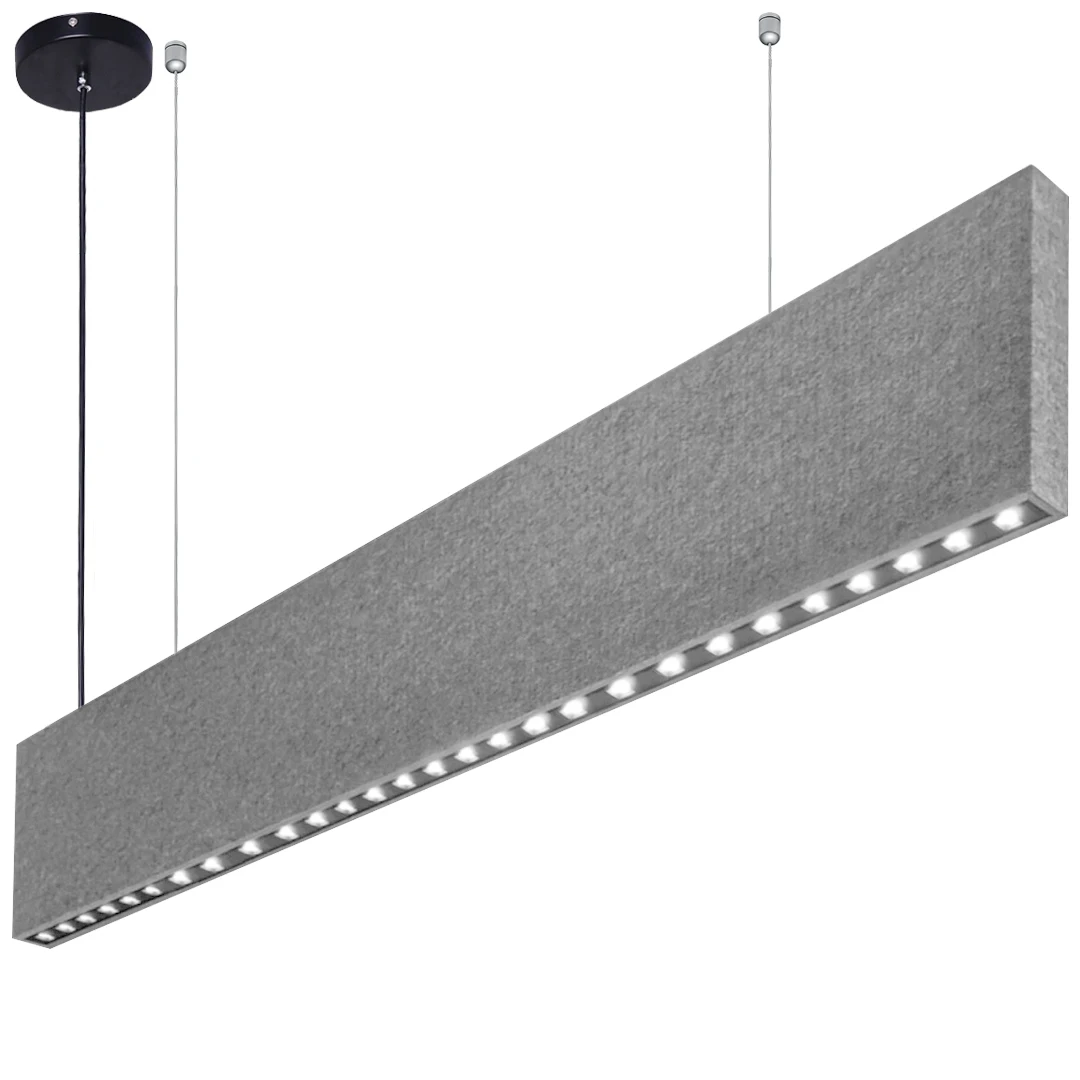

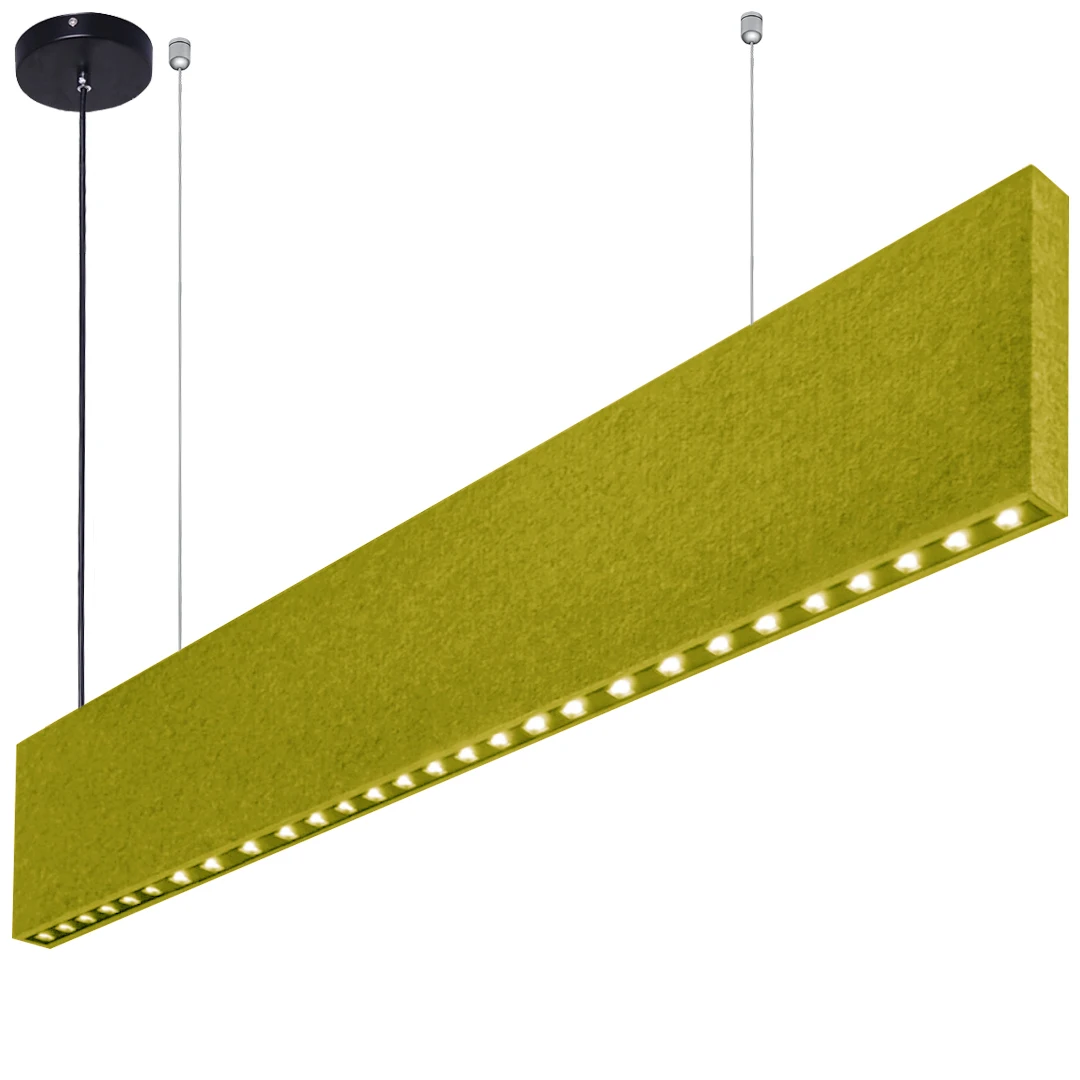

Acoustic Panel | : Silver Grey / Concrete Grey / Moon Grey |
: Cloudy Black / China Red / Navy Blue / Stone Blue | |
: Ocean Blue / Indigo Blue / Camel Brown | |

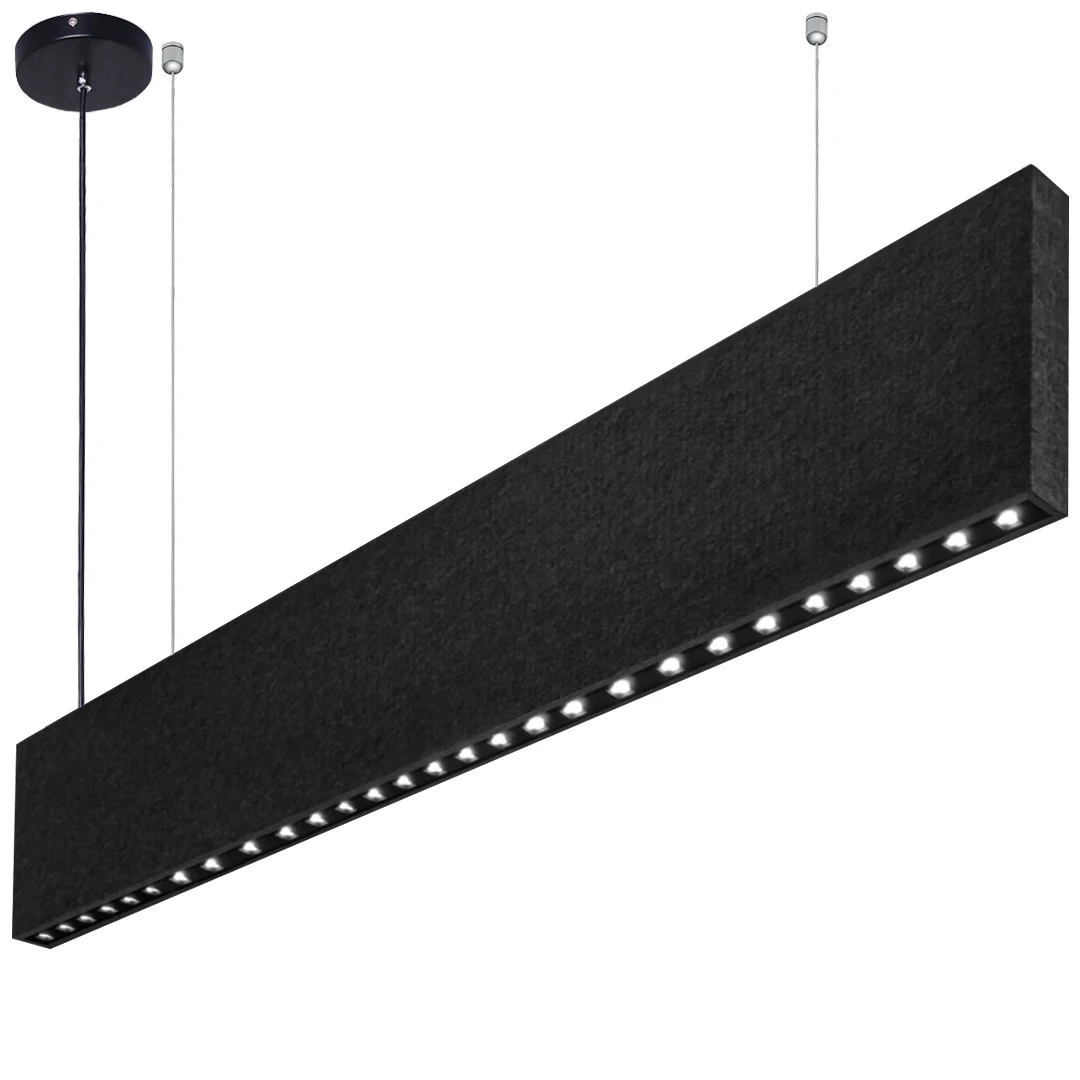

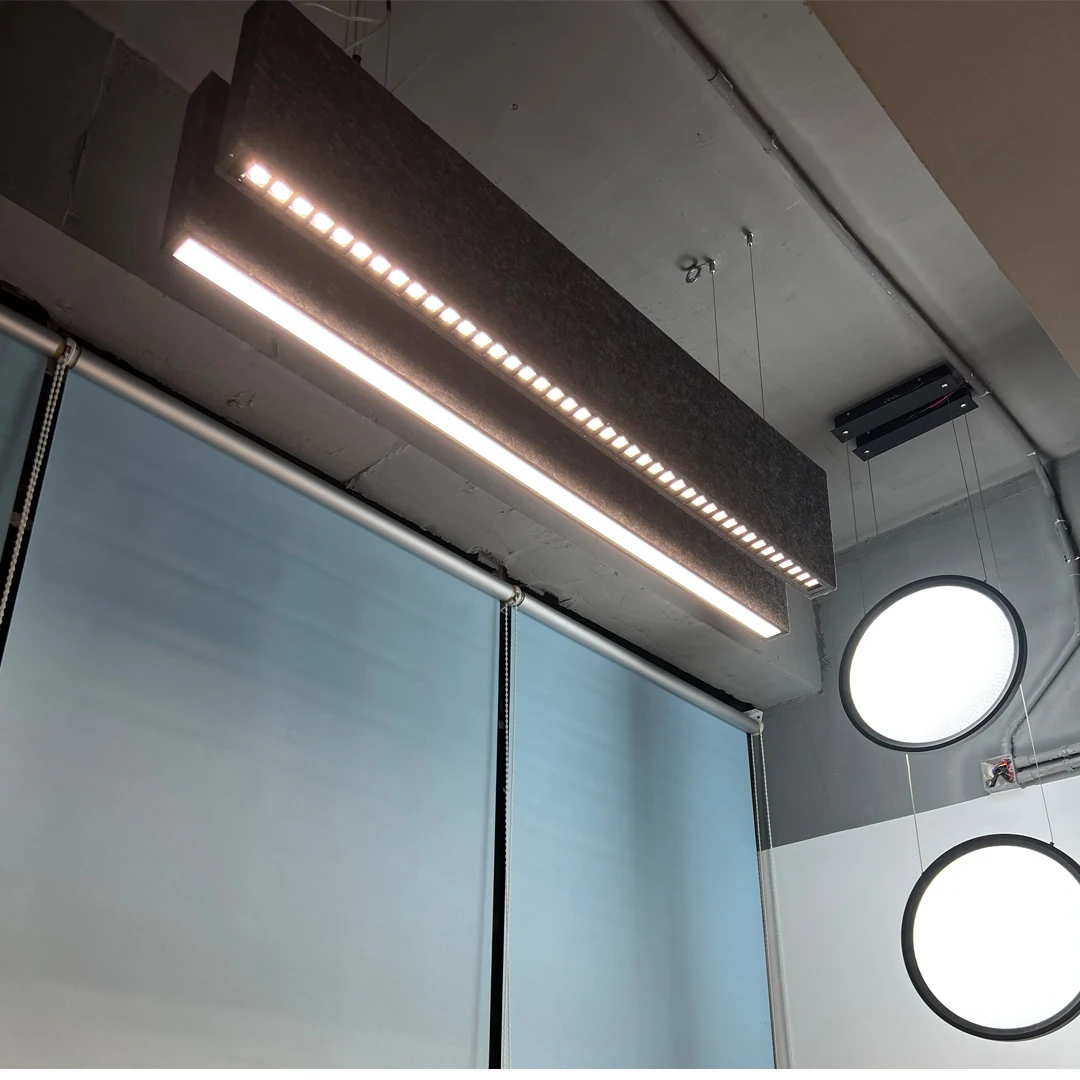

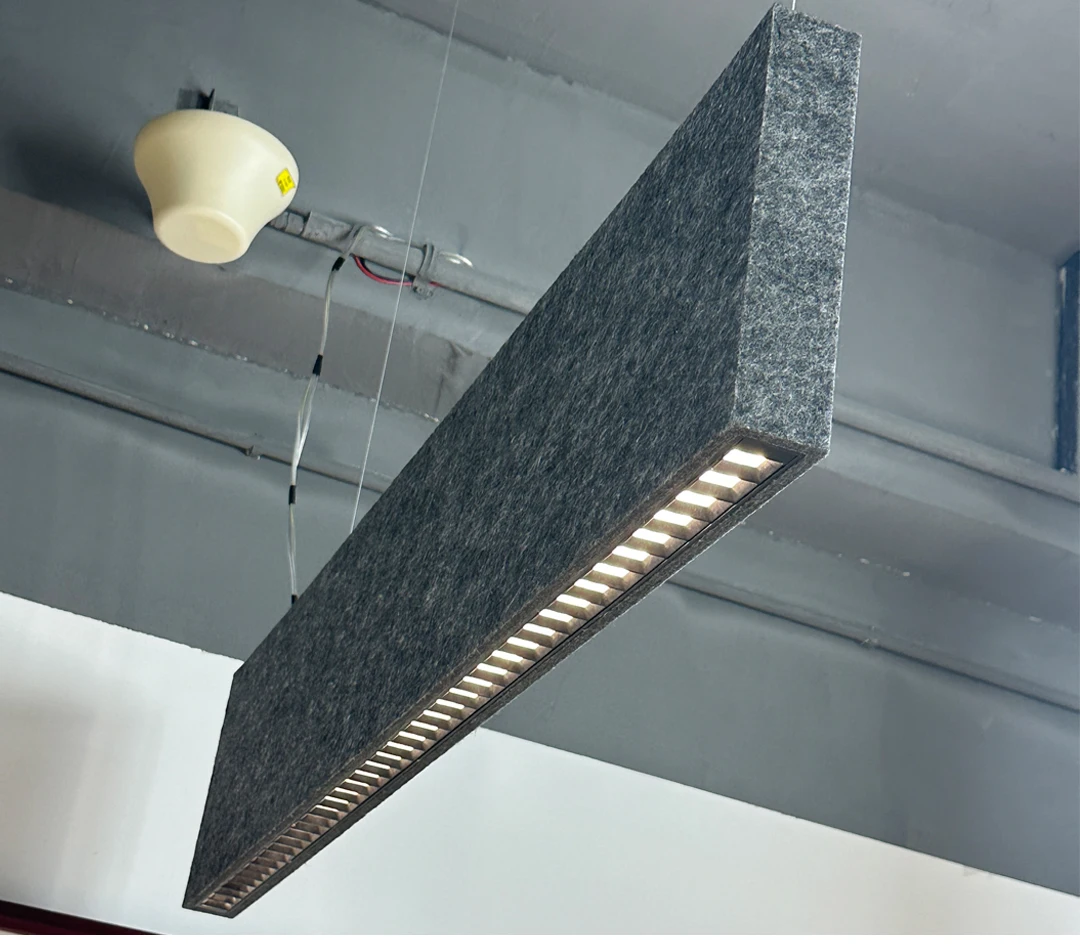

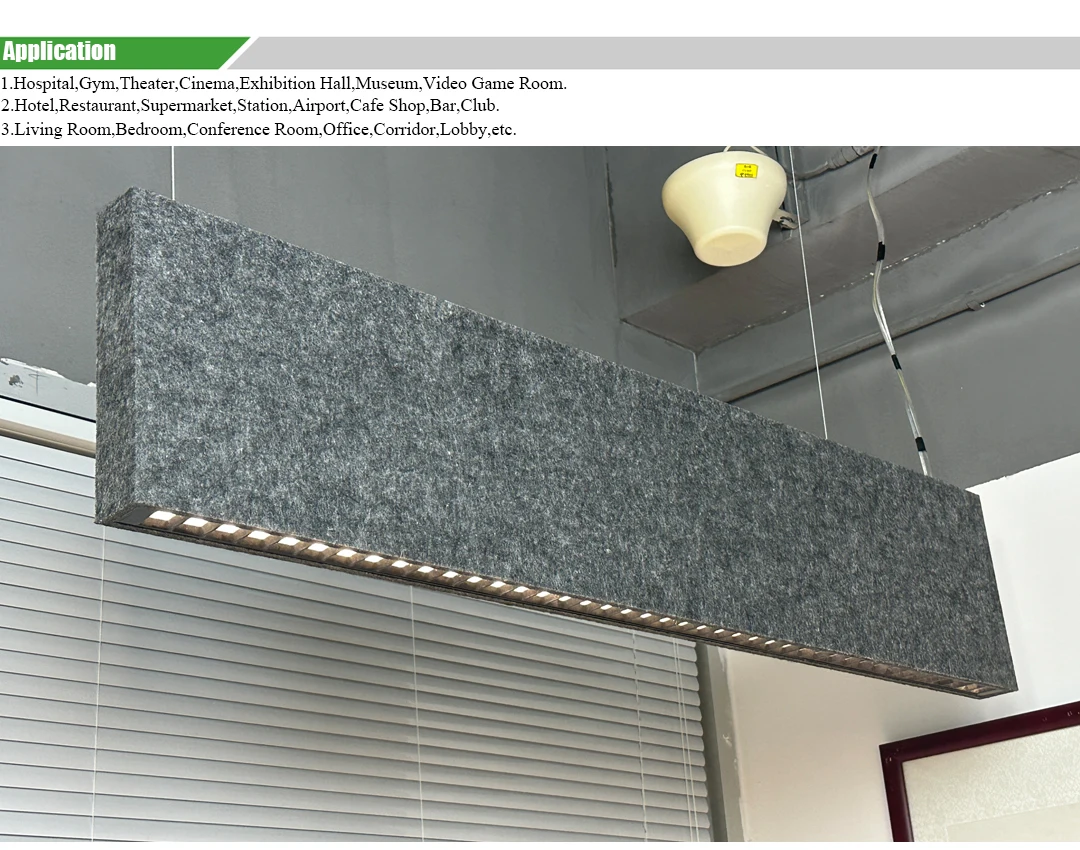

Installation | : Suspended Mount |
Warranty | : 5years |
Model | Watt | Lumens | Size | ||
EN-ACTXFGB381-20 | 20W | 2000Lm | L675*W53*H381mm | ||
EN-ACTXFGB381-40 | 40W | 4000Lm | L1308*W53*H381mm | ||
EN-ACTXFGB381-60 | 60W | 6000Lm | L1944*W53*H381mm | ||
What is Acoustics?
*Acoustic products are made from 100% polyethylene terephthalate(PET), with 50% post consumer recycled material.
*PET is a green product manufactured free of added chemicals,binders, adhesives and dyes.
*The product is very adaptable, it can be cut, notched or trimmed for installation purpose.
*Nearly every environment interacts with sound, PET can achieve a triple purpose functionally acoustic in nature, enhanced design of any space and environmental consciousness.

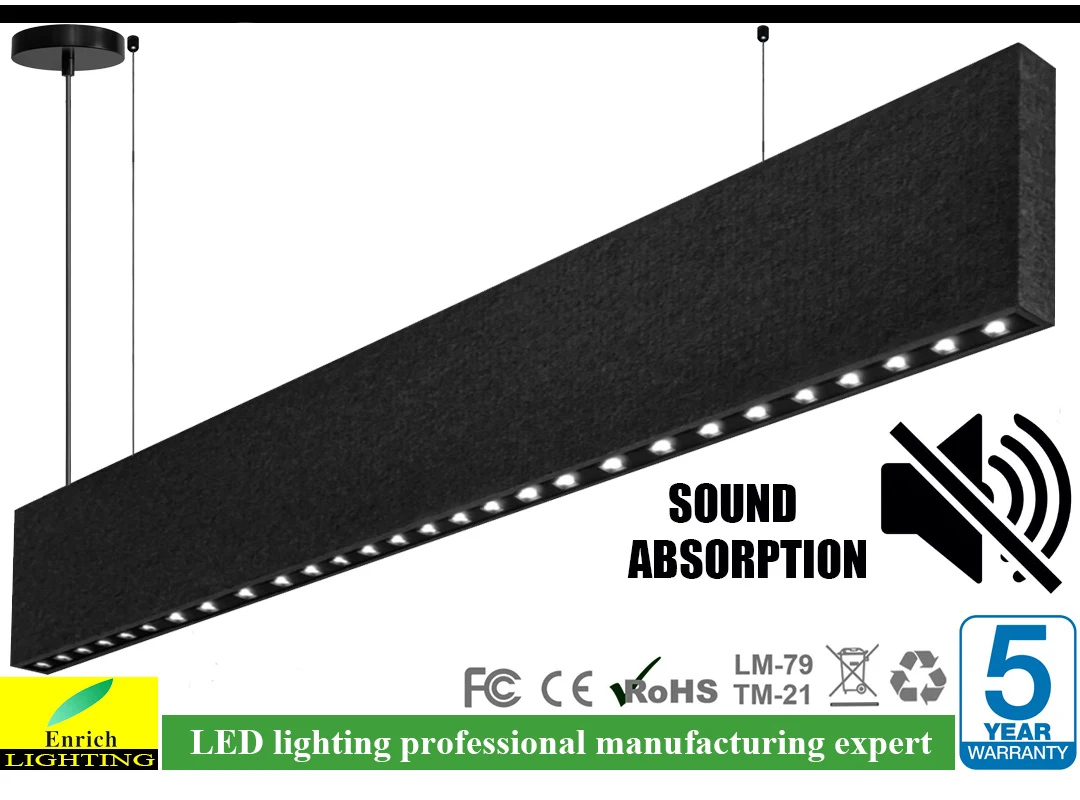

Acoustic Lighting Features
*High Sound Absorption Performance in NRC = 0.7
*Excellent illumination performance
*Up to CRI>95 & R9>90
*100% recyclable and odorless material
*Class A/HB Fire retardant
*Various customized design in 4x8ft/1.22x2.44m acoustic panels

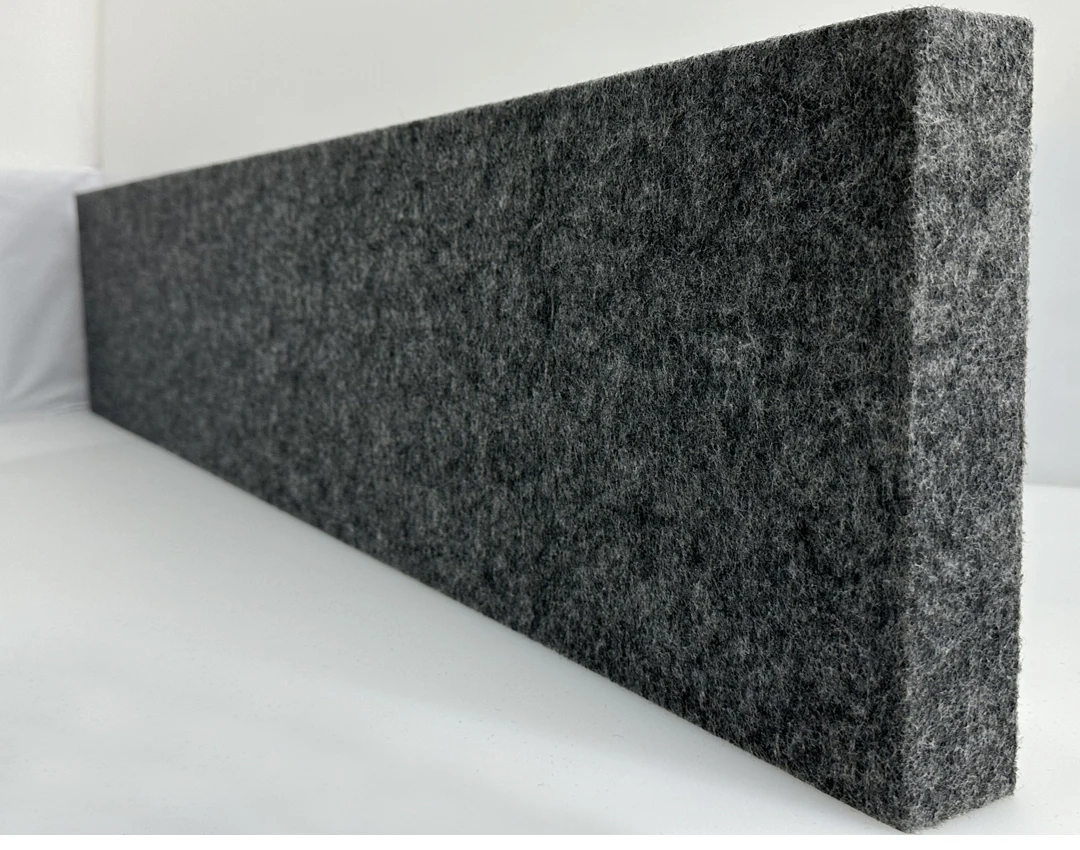

Acoustic Board Option
