EN-6080YTXXD
EN-6080YTXXD

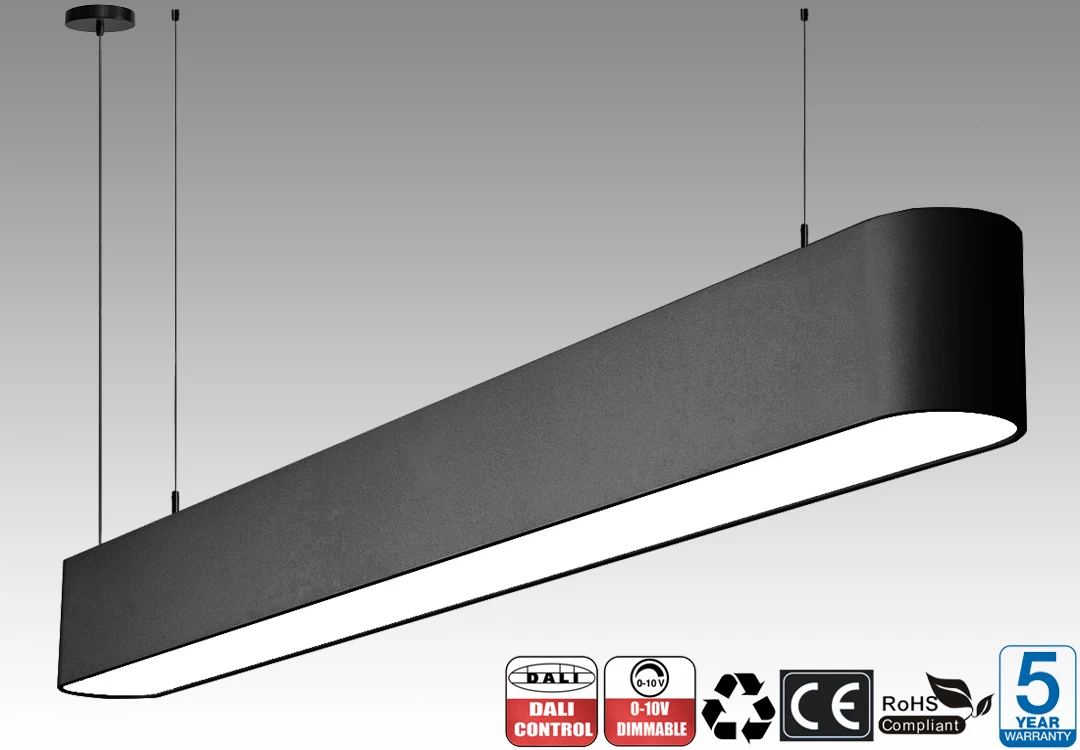

W60xH80mm Round Corner Profile LED Linear Light
Product Parameter
Input Voltage
: AC100-277V,AC220-240V,50/60HZ
Profile Size
: W60*H80mm
Length
: 600mm / 1200mm / 1500mm / 1800mm / 2400mm
Luminous Flux
: 100-110Lm/W
Watt
: 20W / 40W / 60W / 80W
Color Temperature
: 3000K / 4000K / 6000K
Beam Angle
: 120°
LED Chip
: SANAN SMD2835
Driver Brand
: Cupower(AC100-277V) / BOKE(AC220-240V)
Material
: 6063 Aluminium Profile + Opal Diffuser
Finish Color Option
: Black / White / Silver
Function Option
: Non-dimming / 0-10V Dimming / DALI Dimming
Installation Option
: Suspension Mount / Ceiling Mount
PF
: >0.95
CRI
: >82
IP Grade
: IP20
Model
Watt
Product Size
Lumens
Color Temperature
Beam Angle
EN-6080YTXXD20-06
20W
L600*W60*H80mm
2000Lm
3000K 4000K 6000K
120°
EN-6080YTXXD40-12
40W
L1200*W60*H80mm
4000Lm
3000K 4000K 6000K
120°
EN-6080YTXXD50-15
50W
L1500*W60*H80mm
5000Lm
3000K 4000K 6000K
120°
EN-6080YTXXD60-18
60W
L1800*W60*H80mm
6000Lm
3000K 4000K 6000K
120°
EN-6080YTXXD80-24
80W
L2400*W60*H80mm
8000Lm
3000K 4000K 6000K
120°

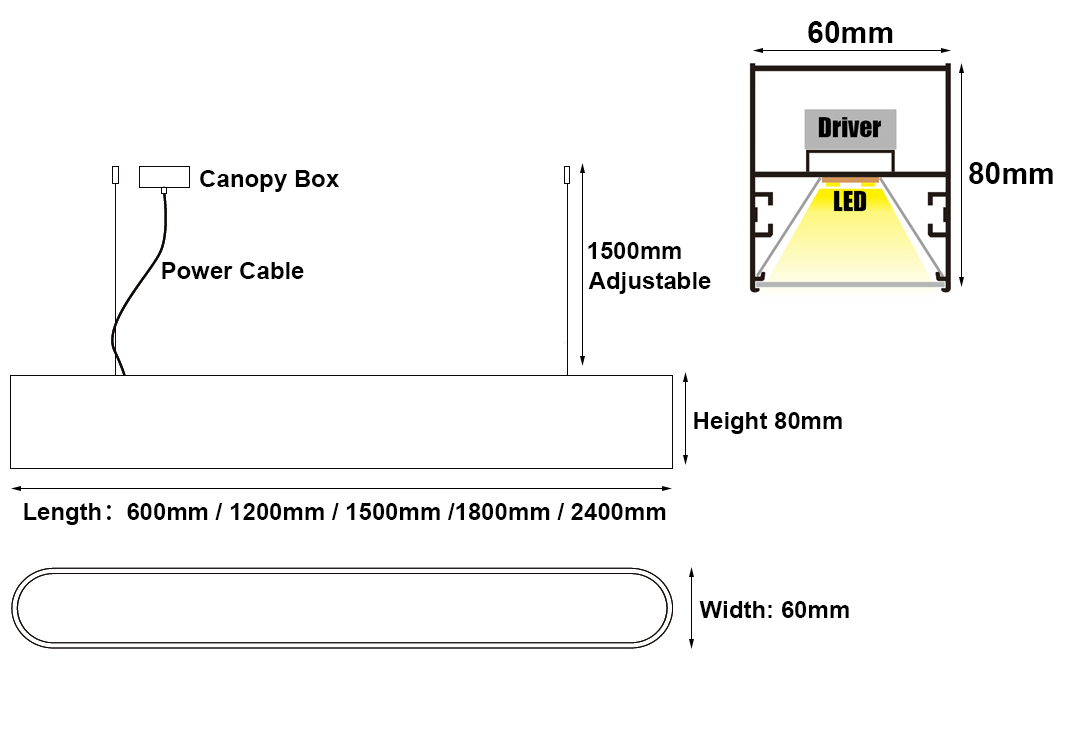

Dimension

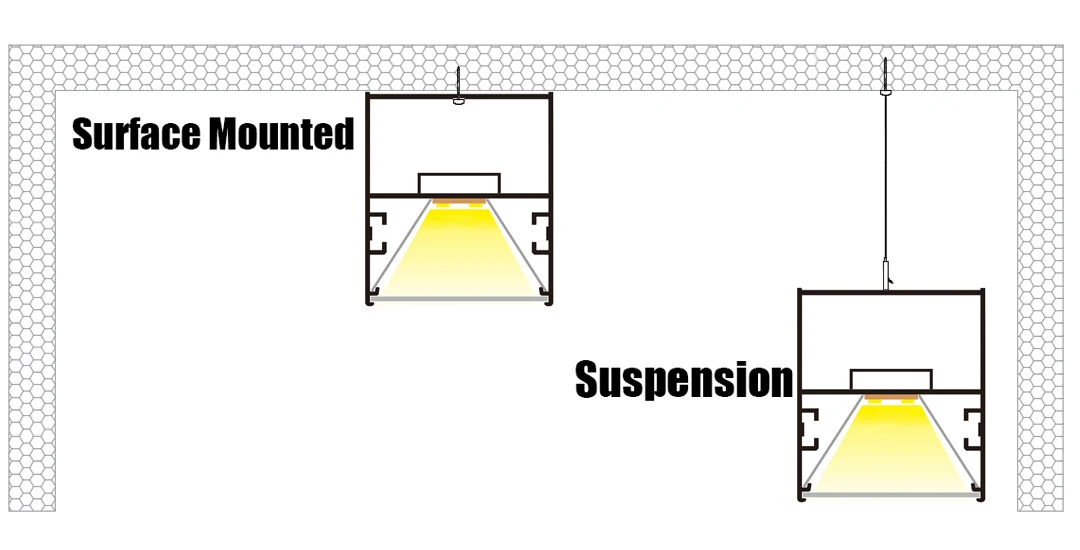

Installation Method
Dimming Type
* On/Off no dimming
* 0-10V dimming
* DALI dimming
Driver Brand
* BOKE for AC220-240V;Cupower for AC100-277V.* PF>0.95,flicker free.

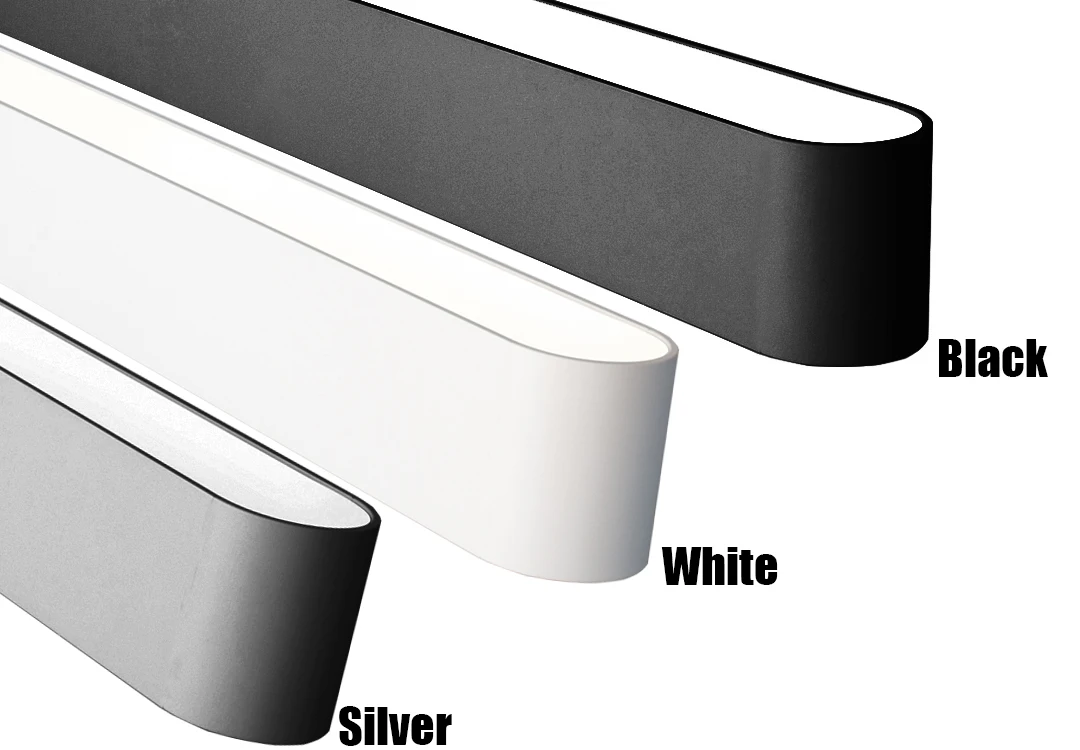

Finish Color Option

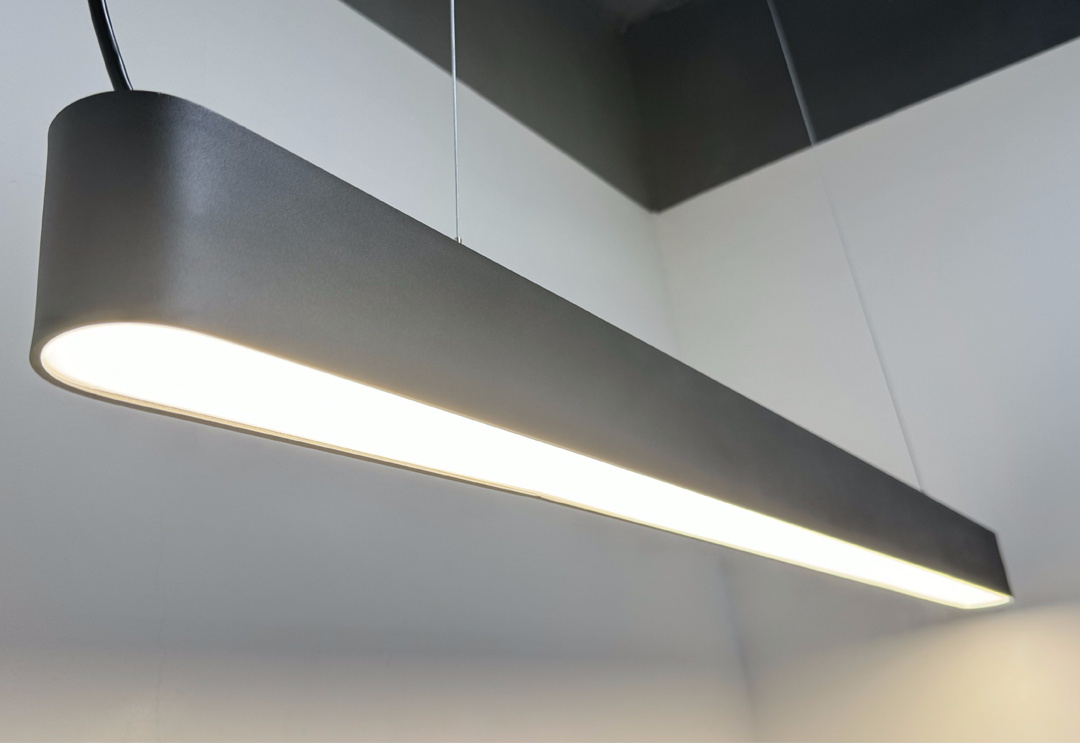

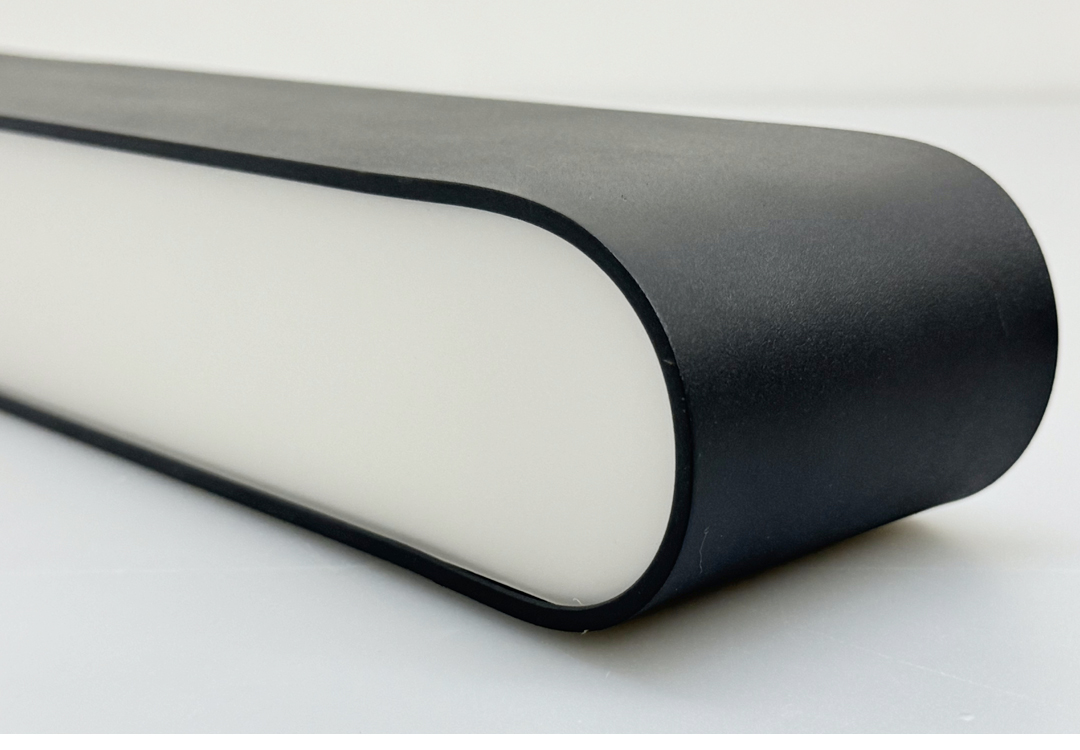

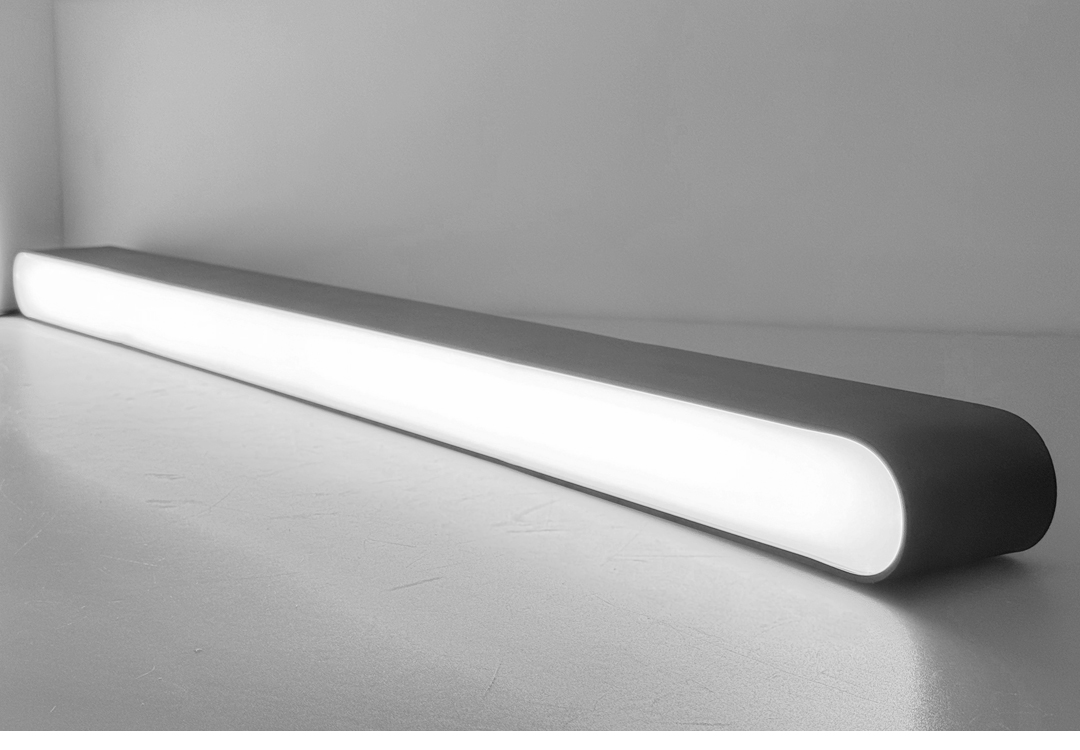

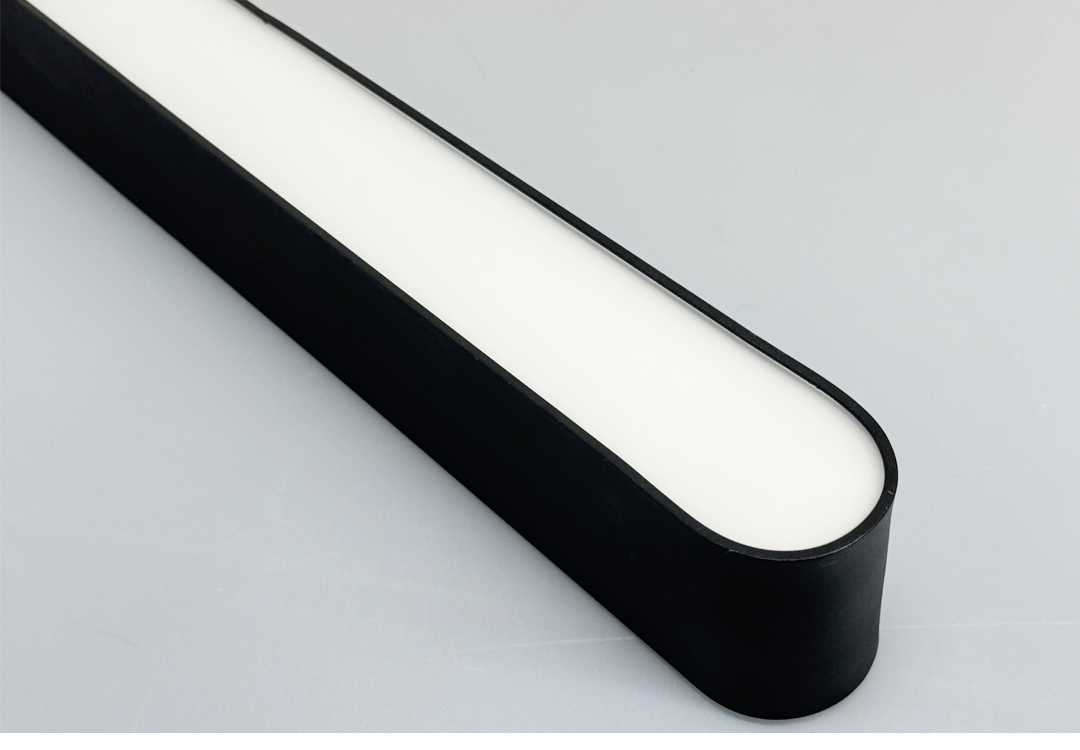

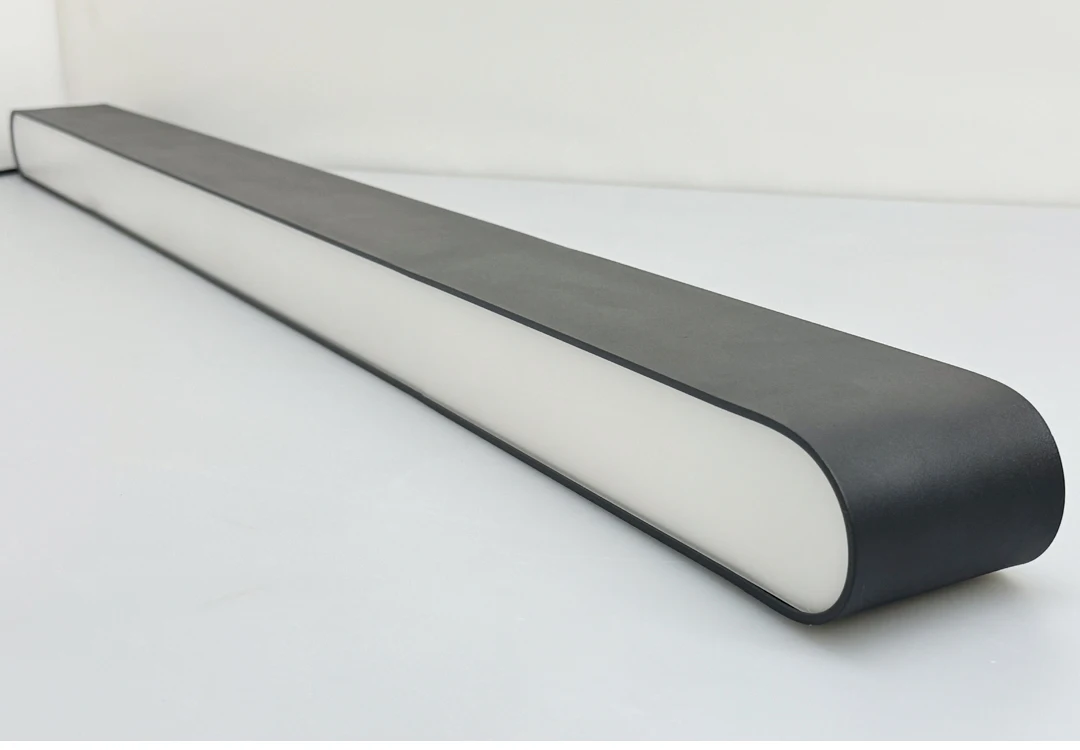

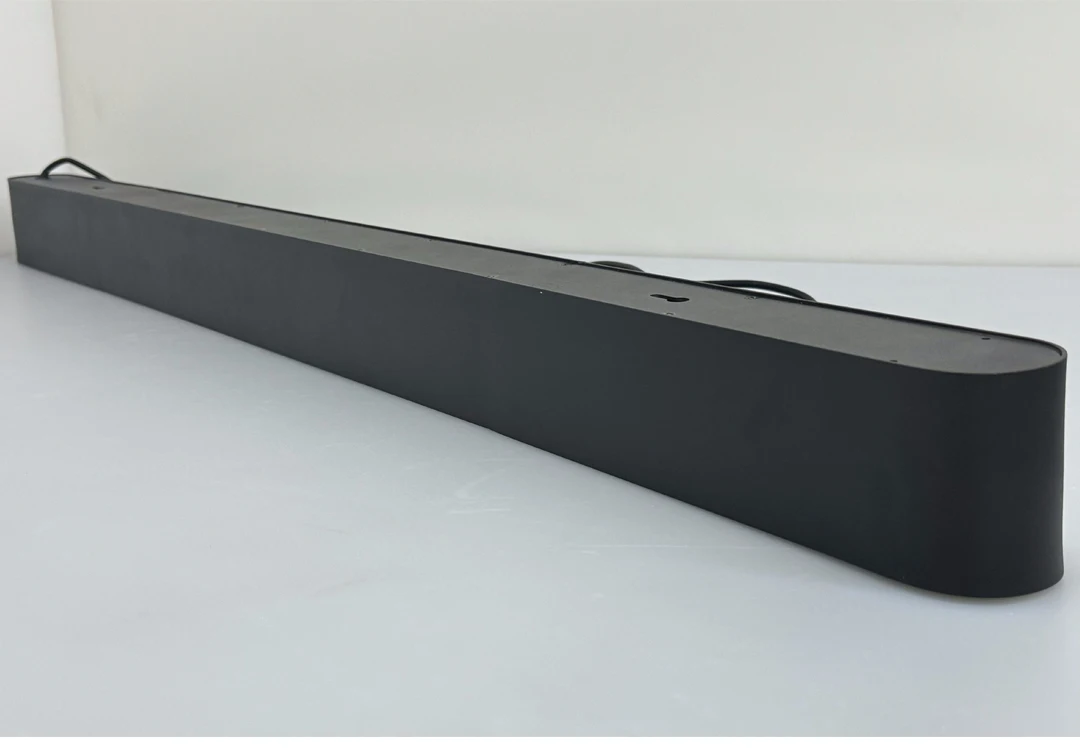

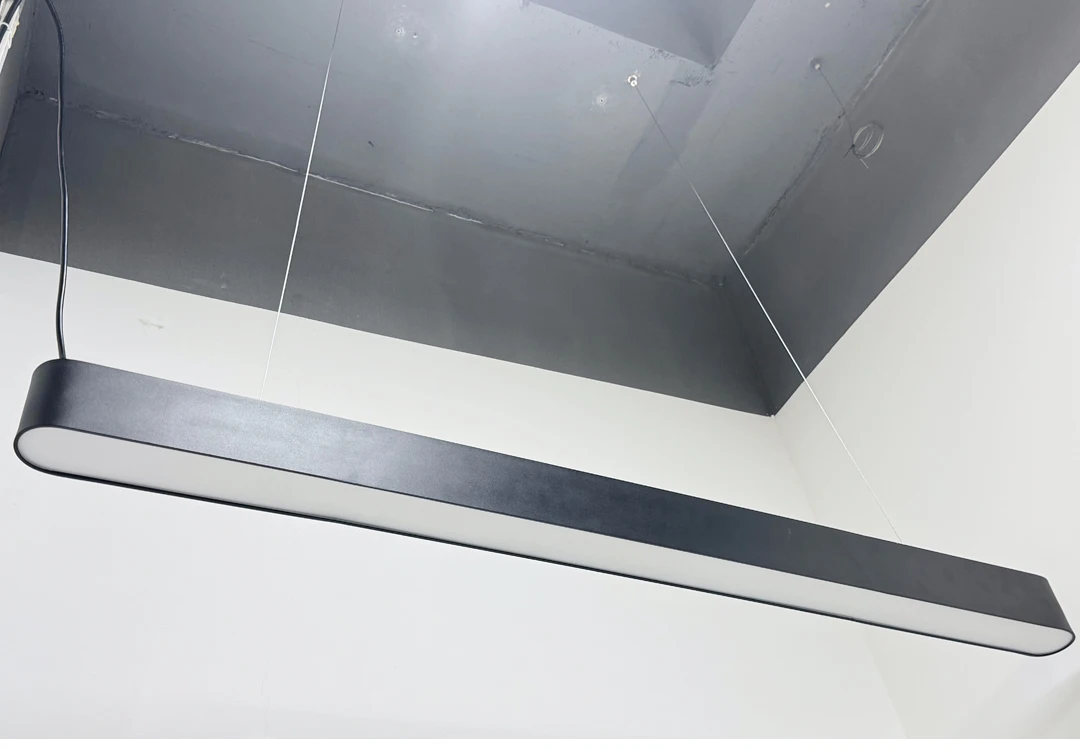

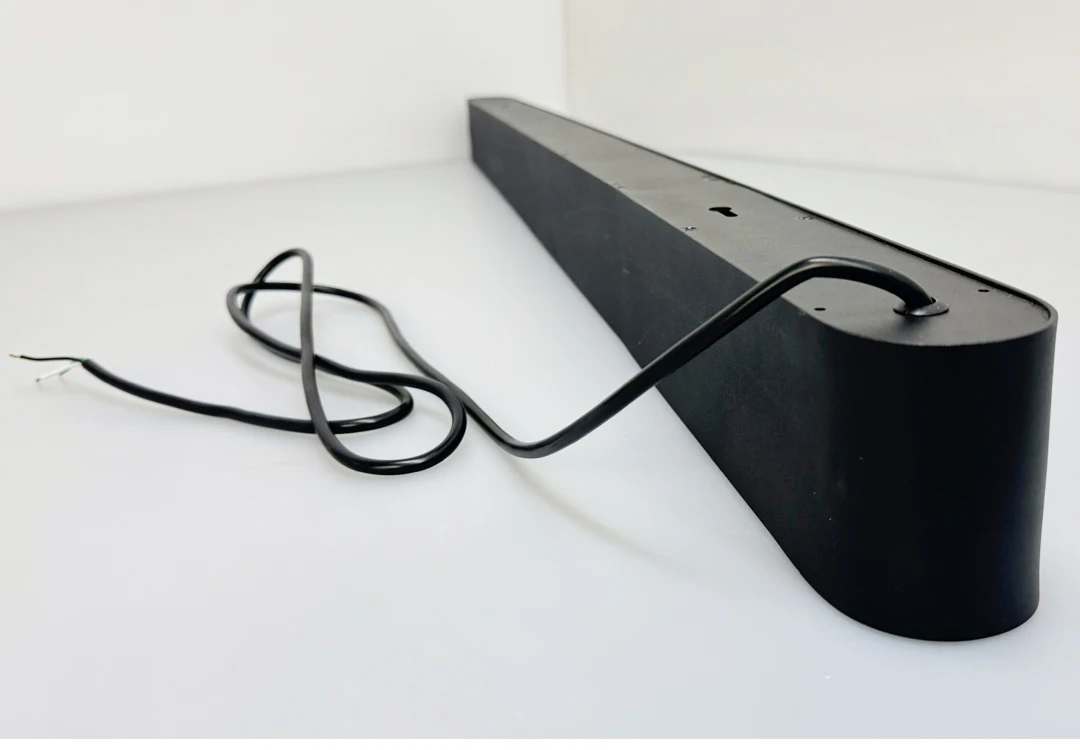

Product Display

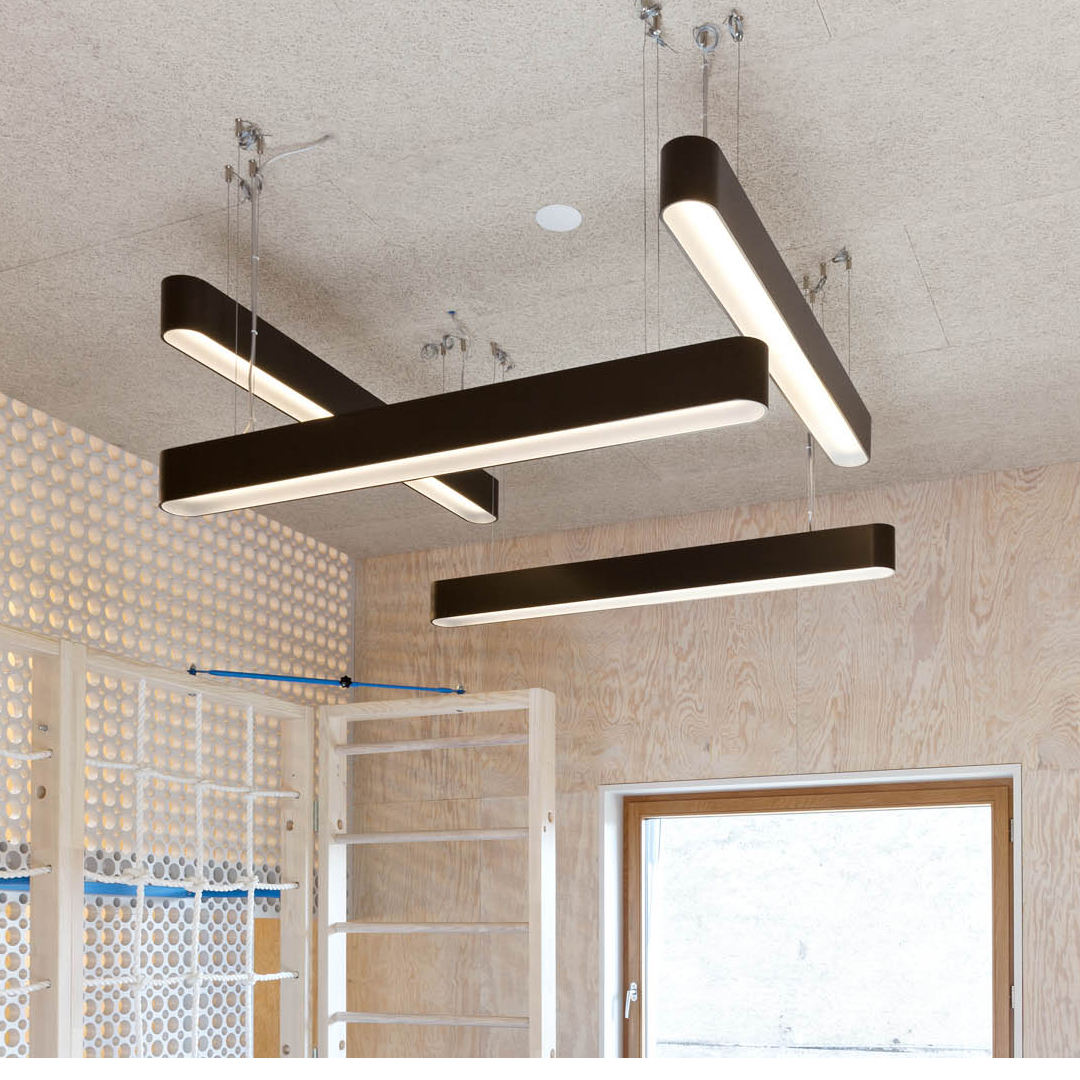

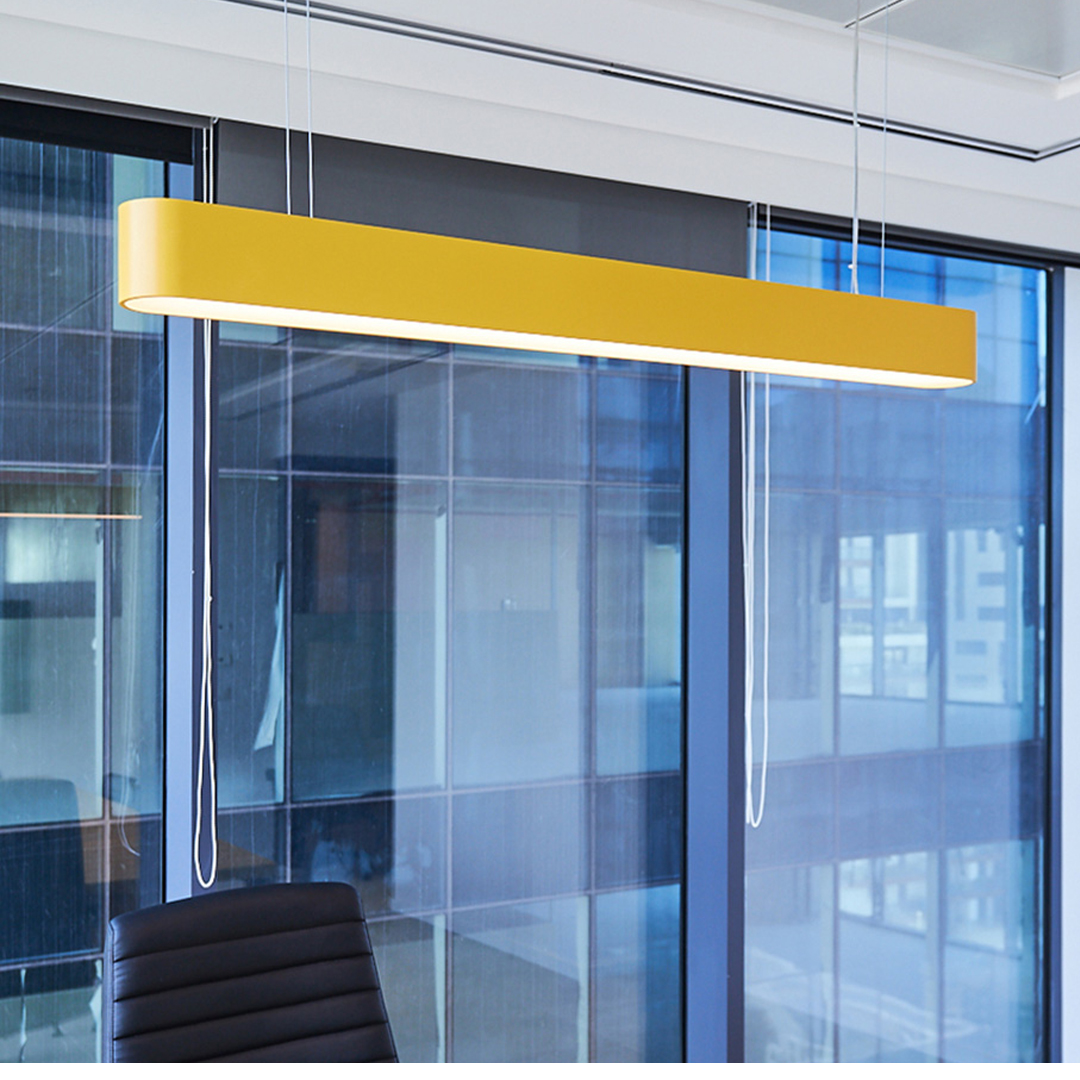

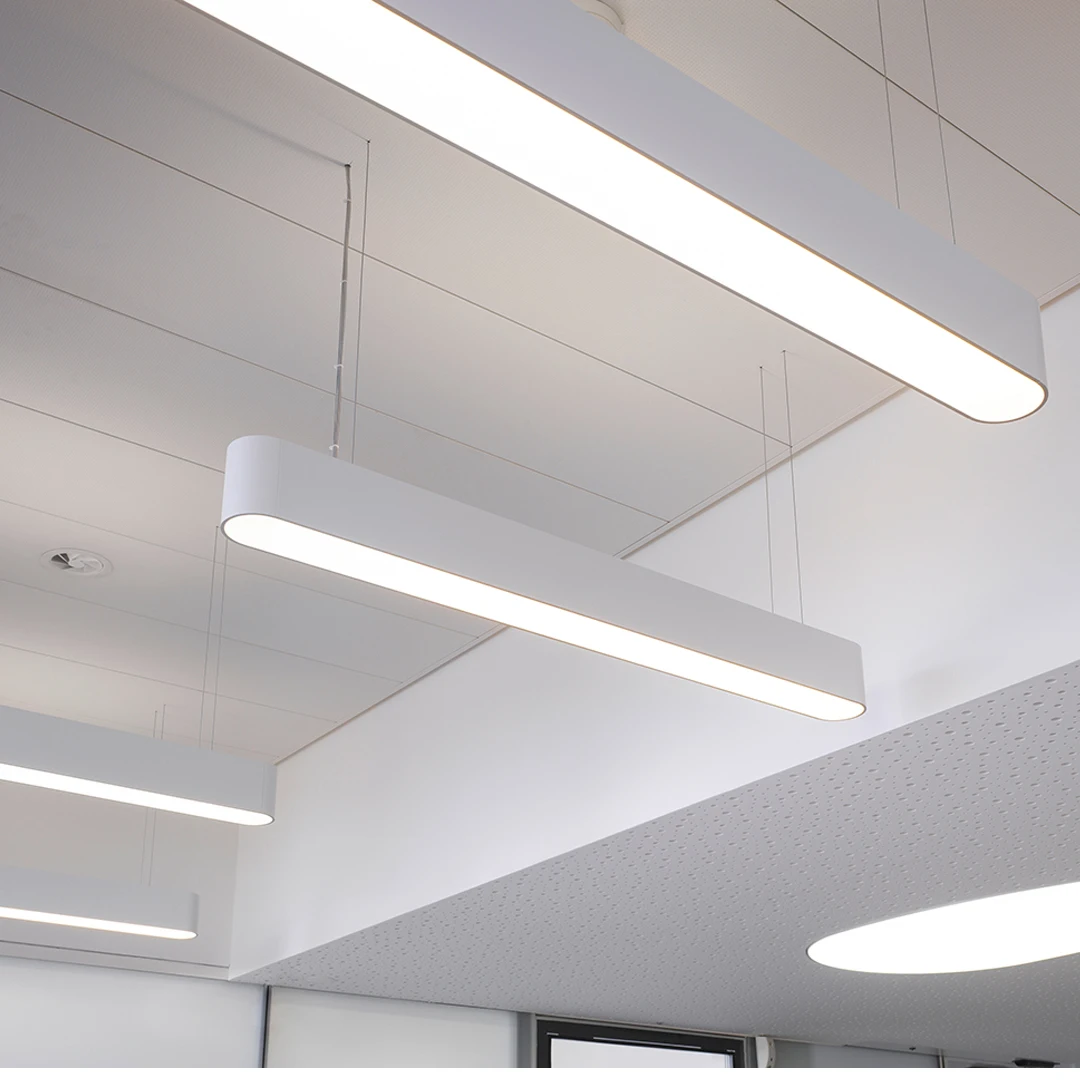

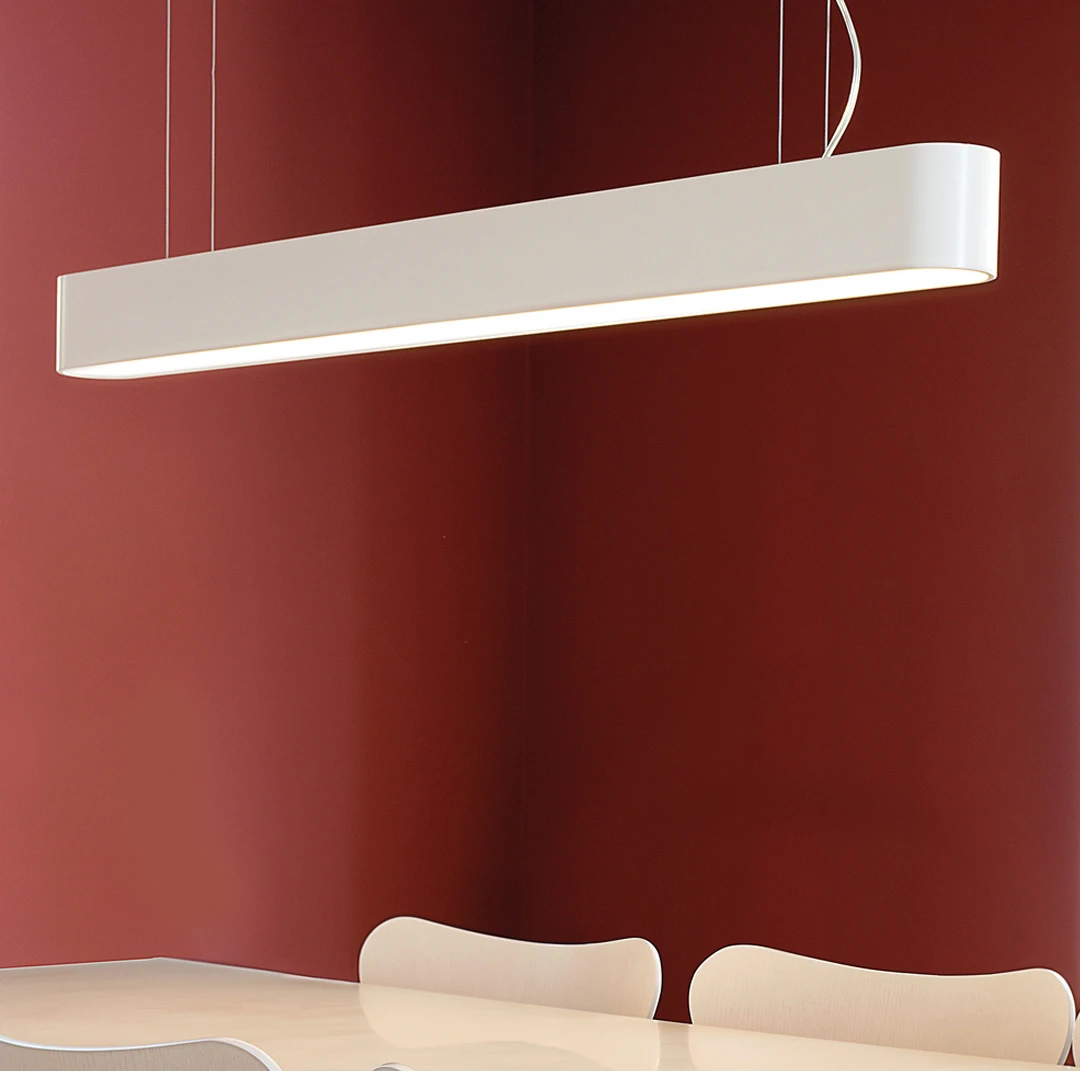

Application


* office,hotel,class room,meeting room,corridor.

* supermarket,living room,lobby,restaurant.

* bar,club,hospital,living room,dining room,bedroom,hall.
